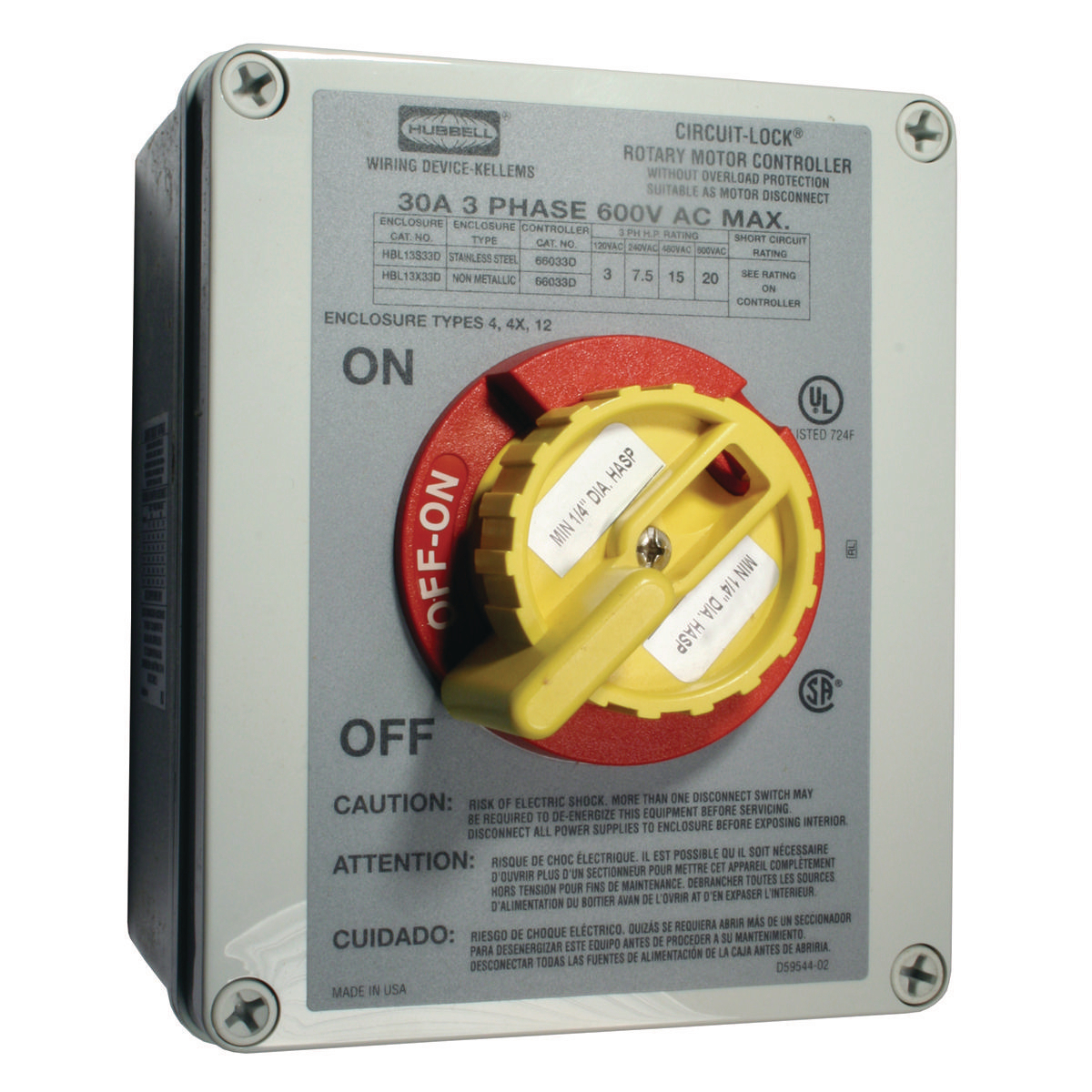

Switch disconnect 3-pole VALOX 30A 600VAC

Manufacturer: Hubbell Wiring Devices | Catalog # HBL13X33D | Electrozad South Part # 250970
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
CIRCUIT-LOCK® Disconnect switch. NEMA-4X, VALOX® enclosure. 3 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC. Un-drilled case allows custom placement of wire entry. Switch can be locked in the off position as a method of compliance with OSHA lockout/tag-out.

Technical Information

Amperage
30 A
Applications
For Motor Starting Without Overload Protection
Connection Type
Pressure Screw Terminal
Current
30 A
Enclosure Type
NEMA 4X
Mounting Type
Screw
Number of Phases
3
Number of Poles
3
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Style
Standard Duty
TC Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Enclosed, Standard, Rotary
Wattage
18000 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202730
GTIN
00783585202730
Housing Material
Plastic
Product Series
Non-Fused
Product UPC
78358520273

Dimensions

Height
5.750 in
Length
7.000 in
Width
5.9 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Thermoset body provides resistance to electrical arc tracking
  • Clamping plate for secure back or side wiring
  • Optional Side Guard for close wall applications
