RV10-10Q RING VINYL INSULATED HIGHLAND B

Manufacturer: 3M | Catalog # RV10-10Q | Electrozad South Part # 250767
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing

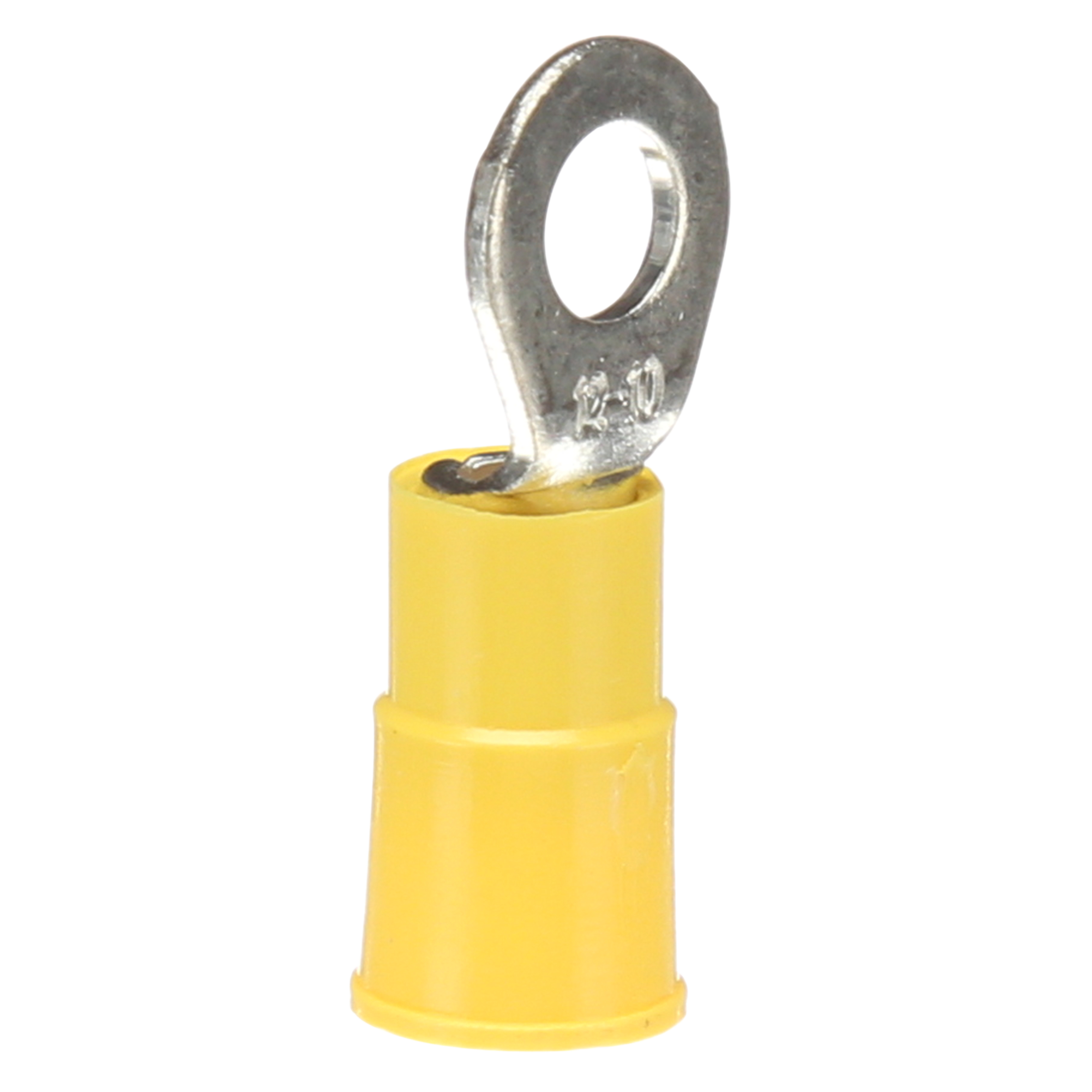

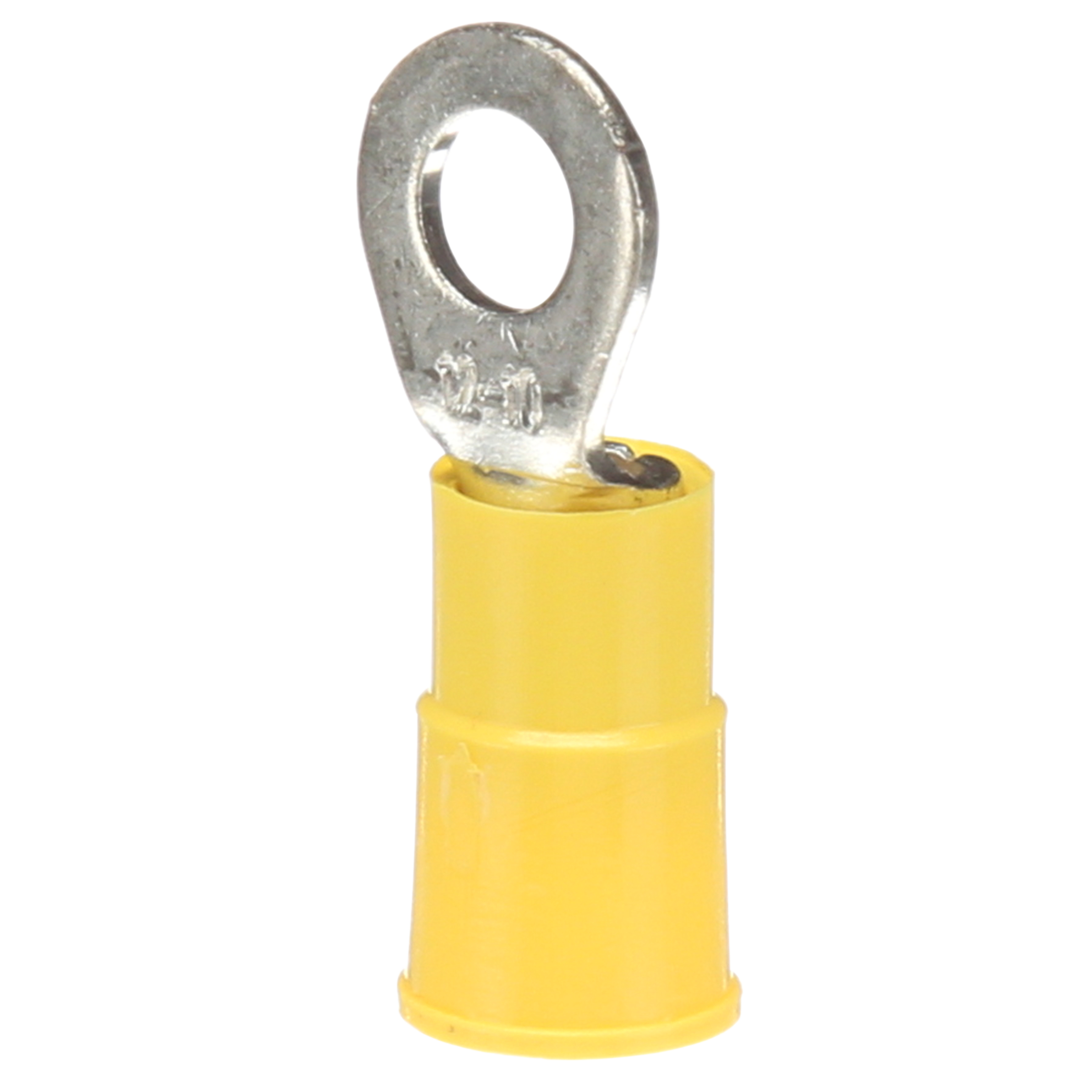

3M™ Highland™ Ring Terminal RV10-10Q accepts a wire range of AWG 12-10 and has a stud size of 10. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified.

Technical Information

Conductor Size
12-10 AWG
Insulation Material
PVC
Material
Plastic
Max Operating Temperature
221 degrees F
Stud Size
#10

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600320
Color
Yellow
GTIN
10051128600327

Dimensions

Overall Length
1.03 in
Width
0.38 in
