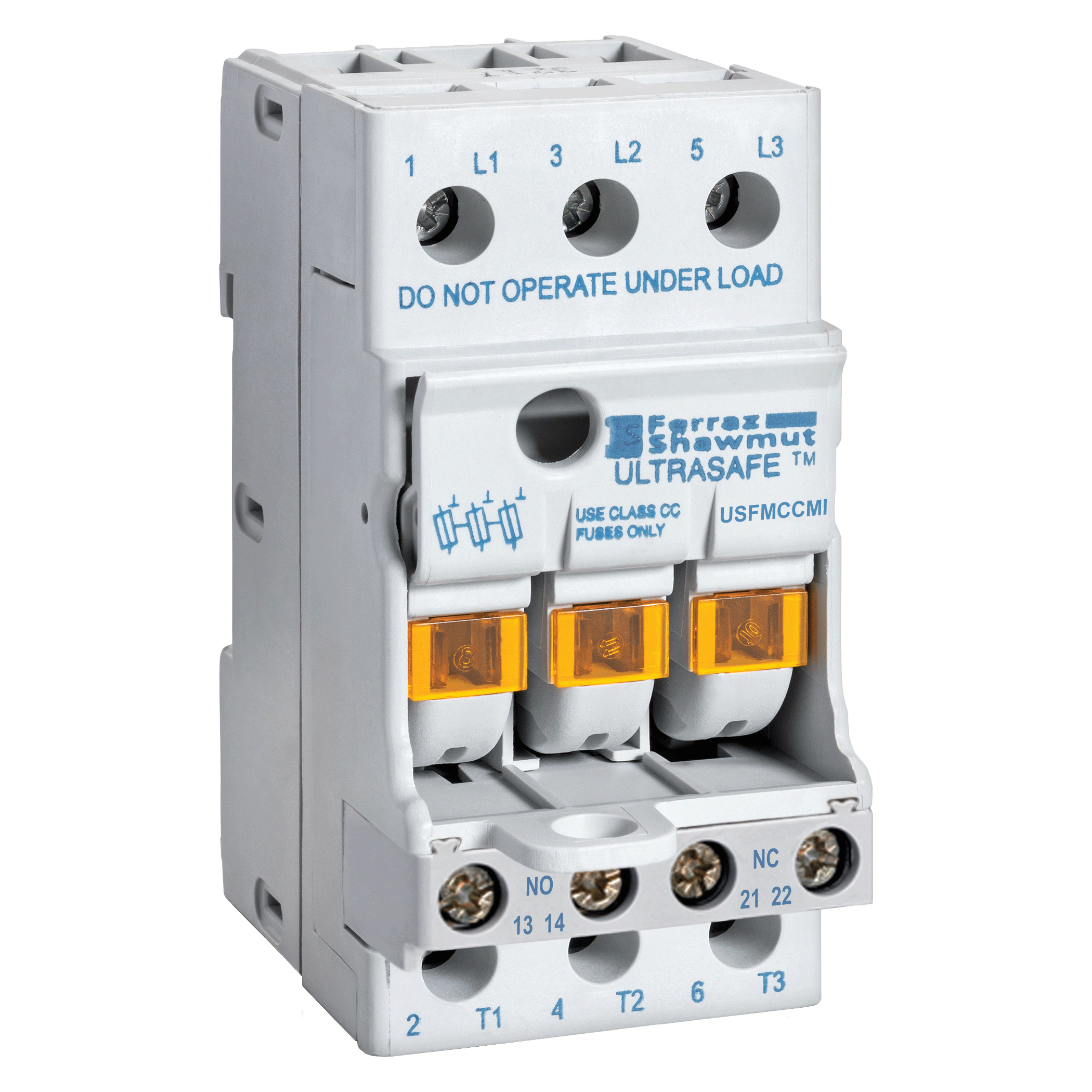

Product image for FUSE HOLDER 600VAC 600VDC CLASS CC 30A 3-POLE LED AND MICROSWITCH PRESSURE PLATE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

FUSE HOLDER 600VAC 600VDC CLASS CC 30A 3-POLE LED AND MICROSWITCH PRESSURE PLATE

Manufacturer: Ferraz Shawmut Mersen | Catalog # USFMCCMI | Electrozad South Part # 250637
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Mersen UltraSafe Fuse Modules (USFM) have a unique, compact design suited for use with 45mm wide IEC contactors. These modules also offer other features not found on other class CC and midget UltraSafe fuseholders such as an auxiliary contact option. When the auxiliary is wired to an adjacent contactor the load is dropped out by the contactor immediately once the fuse extractor handle is opened. Additionally, the fuse module features padlock capabilities, compact bus bars for line side terminations, and tool free removal from DIN rail. Yet the fuse modules still incorporate well known UltraSafe features such as IP20 protection, easy operating fuse extraction handles and an open fuse visual indication option.

Technical Information

Amperage
0-30 A
Applications
Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc Applications requiring lock-out / tag-out procedures
Body Material
Latamid
Contact Material
Copper,Tin-Plated Copper
Mounting Type
DIN-rail
Number of Poles
3
TC Connection
Pressure Plate
Type
UltraSafe
Voltage
240-600 V

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001356835
Class
CC
GTIN
00782001356835
