INS PP FERRULE 10, 6 MM2, LG .787

Manufacturer: ABB | Thomas & Betts | Catalog # F2041 | Electrozad South Part # 250020
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Technical Drawing

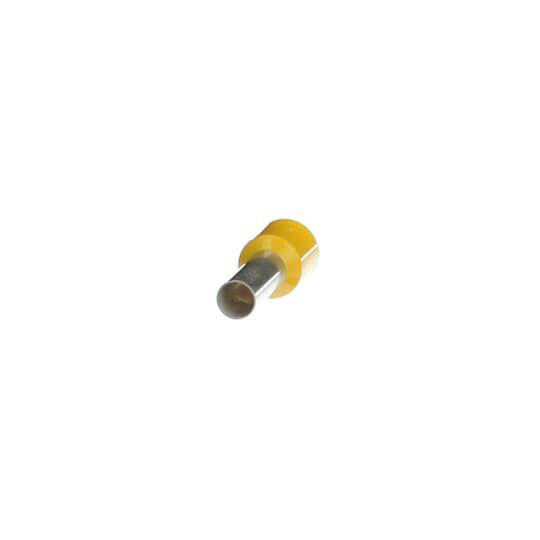

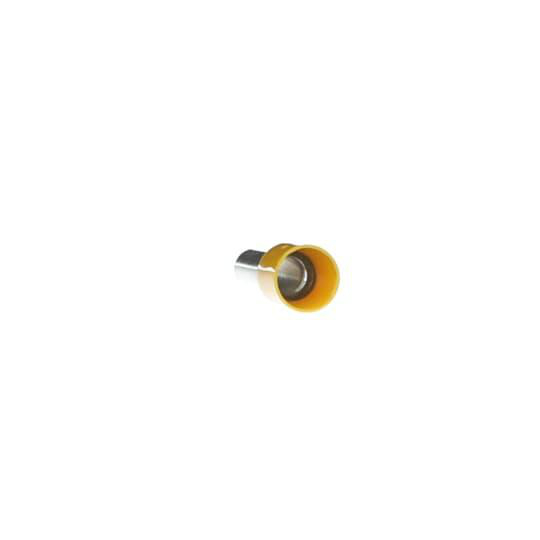

Polypropylene-Insulated Ferrule, Total Length .787 Inches/20mm, Pin Length .472 Inches/12mm, Pin Diameter .142 Inches/3.6mm, Base Diameter .244 Inches/6.2mm, Wire Range 10 AWG/6.00mm2, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
10 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
12 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335452
Color
Yellow
Finish
Electro Tin-Plated
GTIN
05414363151142

Dimensions

Overall Length
0.787 in
