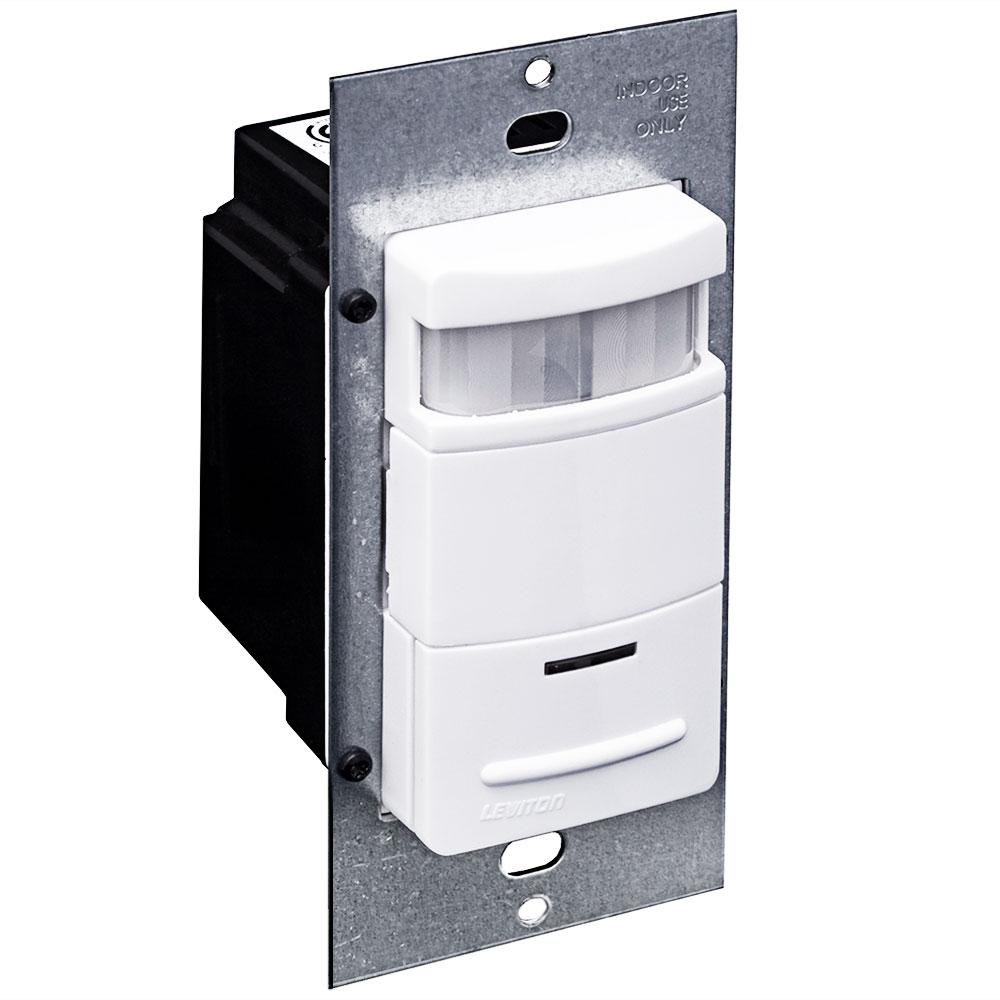

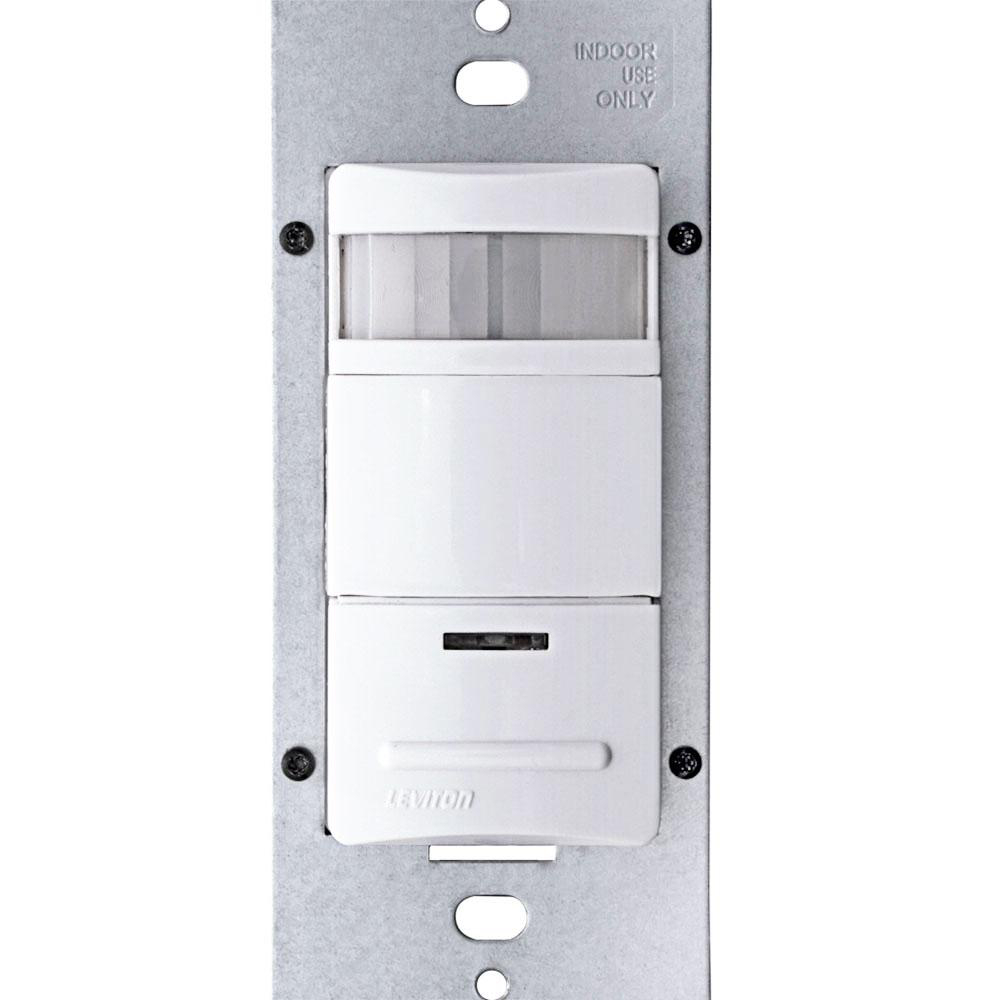

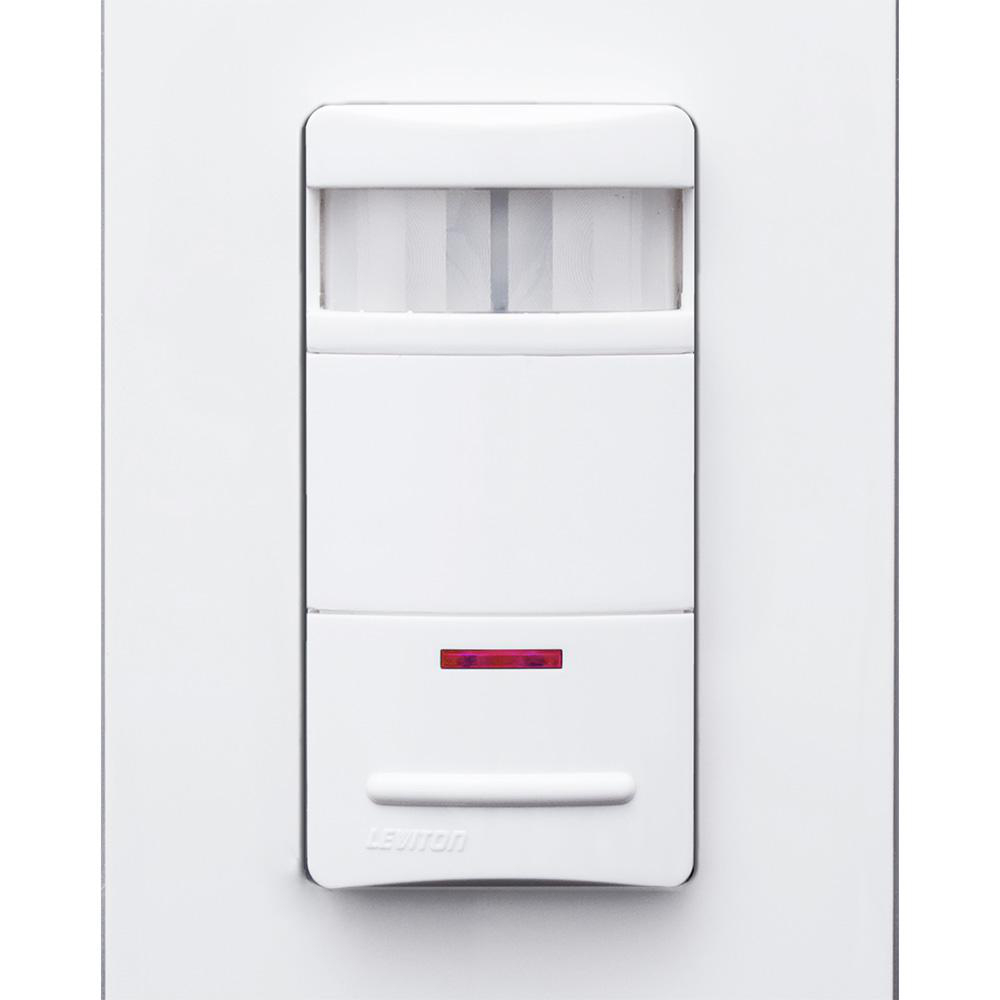

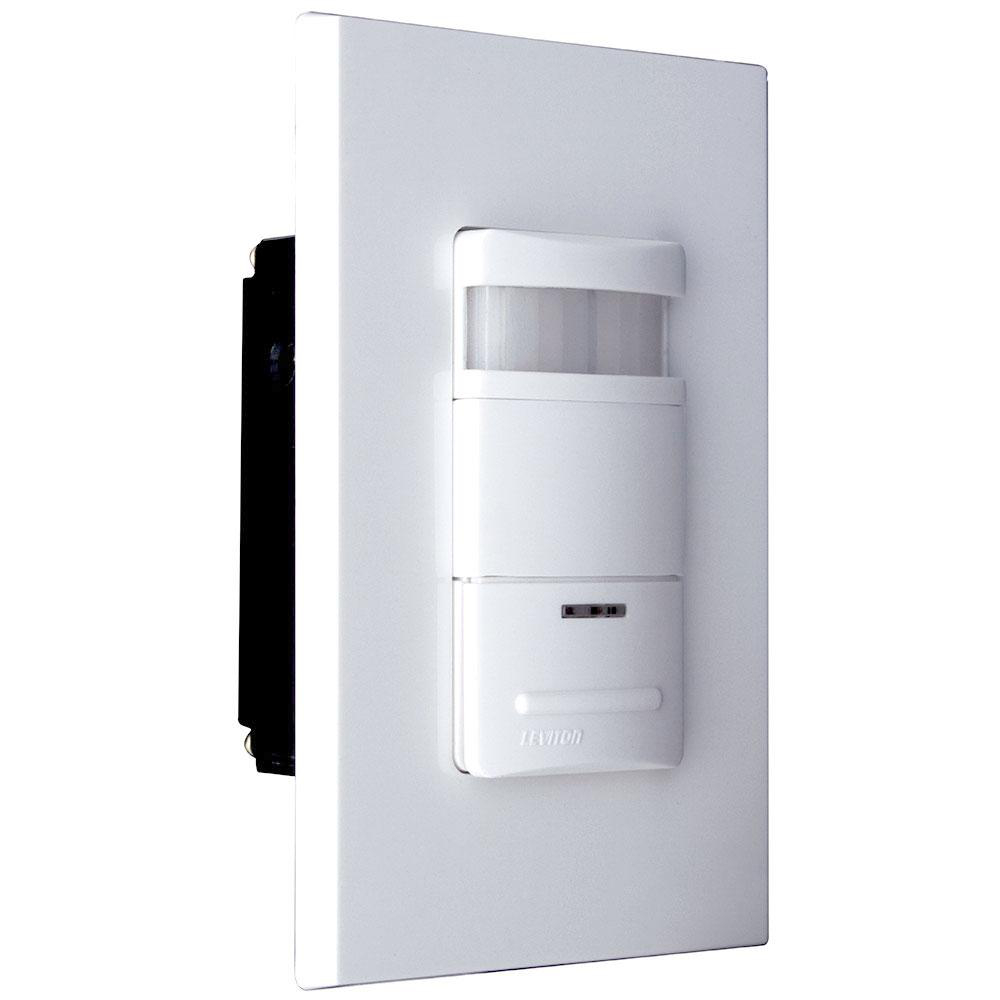

Occupancy sensor Decora® PIR 1pole 277vac 800w

Manufacturer: Leviton Manufacturing | Catalog # ODS10-IDW | Electrozad South Part # 23857
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Decora® passive infrared wall switch occupancy sensor, Single pole, 2100 square feet coverage. For use with 1200 VA at 120 V and 2700 VA at 277 V fluorescent, 800 W at 120 V incandescent, 1/4 HP at 120 V motor, 30 sec to 30 min time adjustments. Convenient pushbutton provides manual ON/OFF light switching at any time, Commercial applications including small offices, conference rooms, lounges, classrooms.

Technical Information

Applications
Commercial
Coverage
2100 sq-ft
Frequency
50 Hz
Grade
Commercial
Mounting Type
Wall
Number of Poles
1
Operating Temperature
0 degrees C
Power Consumption
100 m 250m W
Response Time
30 min
Sensor Type
Wall Switch
Size
66.2 mm
Standard
CEC,CSA,FCC Regulations,NOM,Title 24,UL Listed
Switch Type
Single-Pole,Single-Pole
Temperature Rating
1 - 50 degrees C
Type
Presence Detector, Adjustable, Constant Light Control
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477010181
Color
White
Environmental Conditions
0 to 50 50 Deg C Operating
GTIN
00078477010181

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
