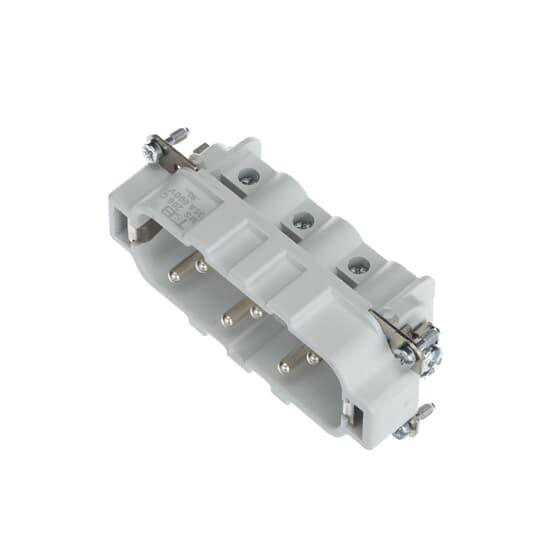

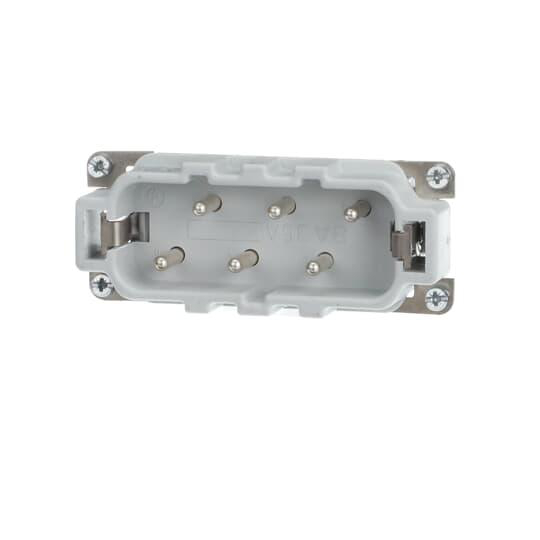

Product image for Insert male 6+G 20-14AWG 35A 600V scrw Pos-E-Kon
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Insert male 6+G 20-14AWG 35A 600V scrw Pos-E-Kon

Manufacturer: ABB | Thomas & Betts | Catalog # MS206C | Electrozad South Part # 237365
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Screw terminal Insert, Male, C series, 35 A 600 VAC, 6 contacts with ground connection, made of glass-filled thermoplastic.

Technical Information

Amperage
35 A
Applications
For use with C series
Conductor Size
20-10 AWG
Current
35 A
Material
Glass-Filled Thermoplastic Body, Copper Contact
Number of Poles
6
Temperature Rating
-40 to 125 degrees C
Type
Male, Rectangular
Voltage
600 V
Wire Size
20-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Pos-E-Kon®

General Product Info

12-Digit UPC
786210791197
GTIN
05415022475302
