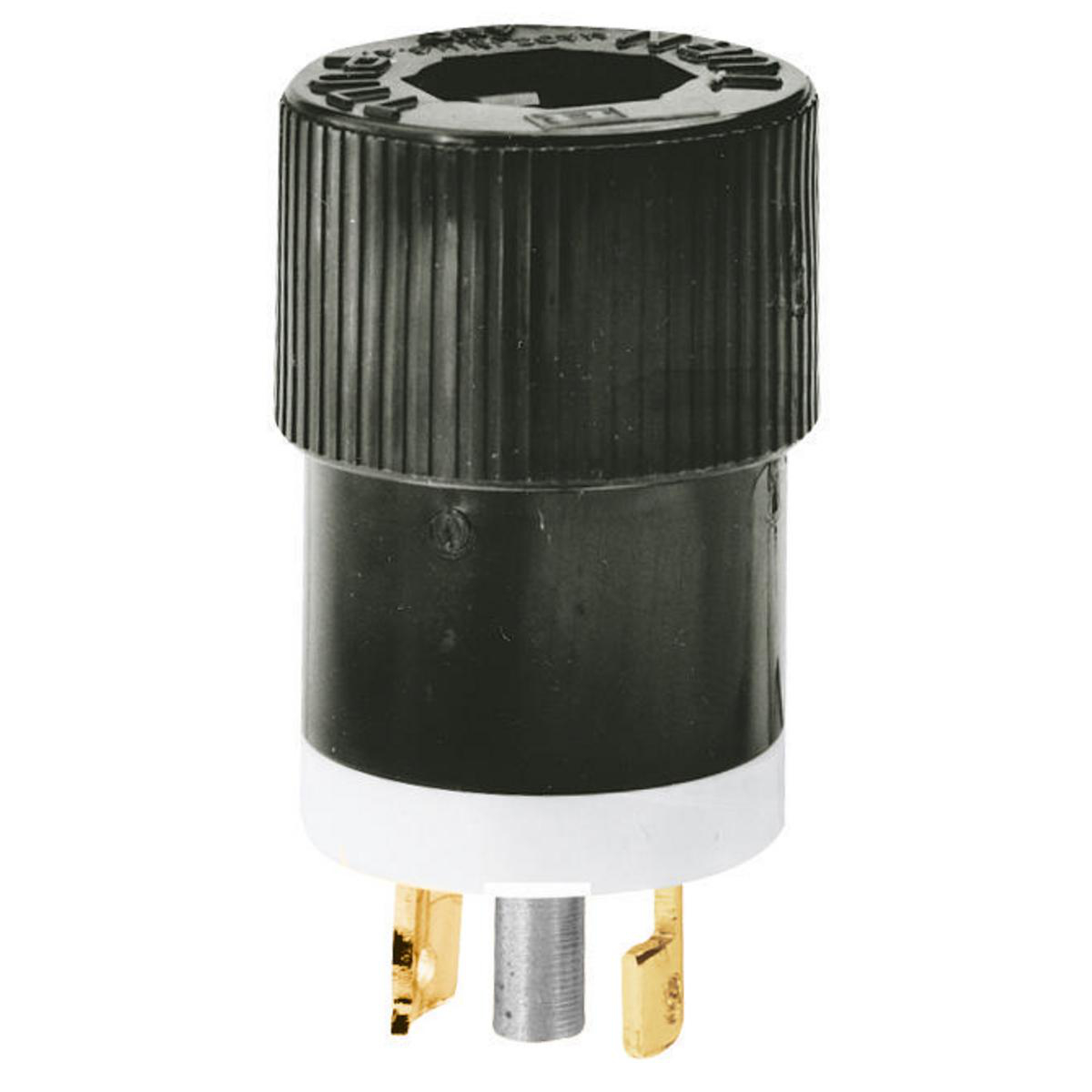

Product image for LKG PLUG, MIDGET,15A 125/250V, ML-3P
Image thumbnail 0
Image thumbnail 1
To:
CC:

LKG PLUG, MIDGET,15A 125/250V, ML-3P

Manufacturer: Bryant Wiring Device | Catalog # 7485NP | Electrozad South Part # 236917
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Locking Devices, Bryant Midget Locking, Industrial, Male Plug, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3P, Screw Terminal, Black

Technical Information

Amperage
15 A
Applications
Extra Heavy Duty Industrial
Cord Type
All Listed Portables
Current
15 A
Material
Composite
NEMA
ML-3P
Number of Phases
1
Number of Poles
3,3
Number of Wires
3,3
Size
Midget Locking
Style
Non-Grounding
TC Connection
Screw Terminal
Type
Male Plug
Voltage
125/250 V
Wattage
3750 W
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786669406
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00781786669406
Product UPC
78178666940

Dimensions

Height
1.60 in
Length
1.25 in
Width
1.25 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Abuse resistant nylon housing
  • Smaller body size for use in tighter fit applications where larger products can't
