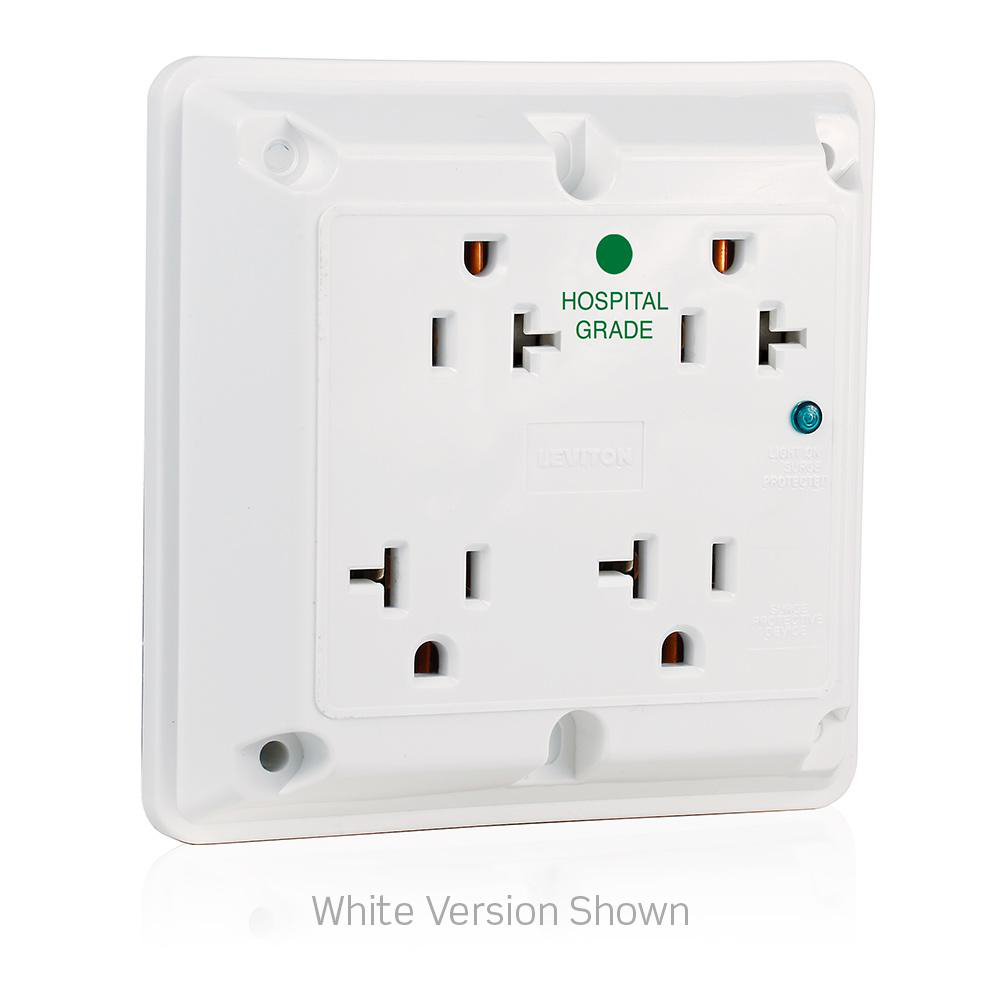

Receptacle 4-in-1 surge protective 2-pole 20A 125V white

Manufacturer: Leviton Manufacturing | Catalog # 8490-W | Electrozad South Part # 233818
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
Extra heavy-duty hospital grade 4-in-1 surge protective receptacle. Nylon face and body. Phosphor bronze line contact. Brass 8-32 terminal screws. Steel 8-32 with 12 AWG green 8 inch pigtail grounding screw. Zinc-plated steel 8-32 mounting screws. Zinc-plated steel yoke. Steel strap. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60..C operating temperature. Straight blade. Surge with indicator light.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Nylon
Device Type
Quadruplex Receptacle
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Heavy-Duty Hospital
Grounding
Grounding
Horsepower
1 hp
Indicator
Indicator Light
Material
Polycarbonate
NEMA
WD-1,WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Short Circuit Current
5 kA
Size
4.21 H x 1.77 W x 1.56 D IN
Standard
ANSI C-73,CSA,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Type 3 SPD
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
4-in-1 Surge Receptacles

General Product Info

12-Digit UPC
078477851470
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477851470

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
