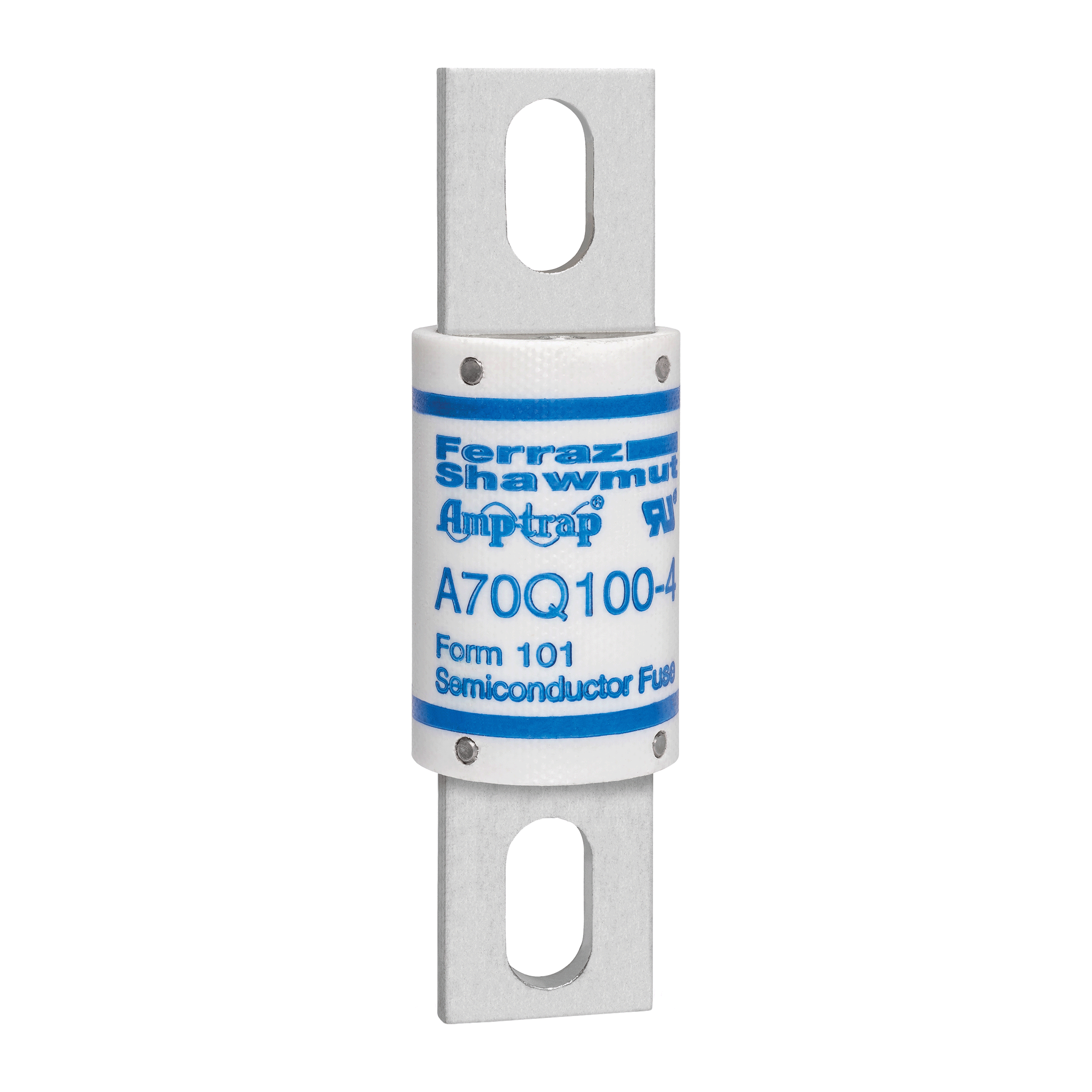

Product image for High Speed Fuse Amp-Trap® A70Q 700VAC 650VDC 100A Bolted Blade
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

High Speed Fuse Amp-Trap® A70Q 700VAC 650VDC 100A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70Q100-4 | Electrozad South Part # 233724
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A70Q Amp-Trap® high speed fuses were developed for inverter applications requiring extremely low I2t. A70Q fuses provide the most responsive protection for applications not required to sustain heavy overloads. Typically used for replacement purposes.

Technical Information

Amperage
100 A
Applications
For Protection of Inverters and Other Equipment Requiring the Best AC or DC Protection in This Voltage Range
Connection Type
Blade
Contact Material
Tin-Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
700 V
Rated Voltage DC
650 V
Response Time
10 Millisecond
TC Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
High Speed, Form 101, Extremely Fast Acting
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001140946
Construction
GMG
GTIN
30782001140947
Weight
0.51 lb

Dimensions

Diameter
1.22 in
Length
4.37 in

Certifications & Compliance

Country of Origin
Mexico
