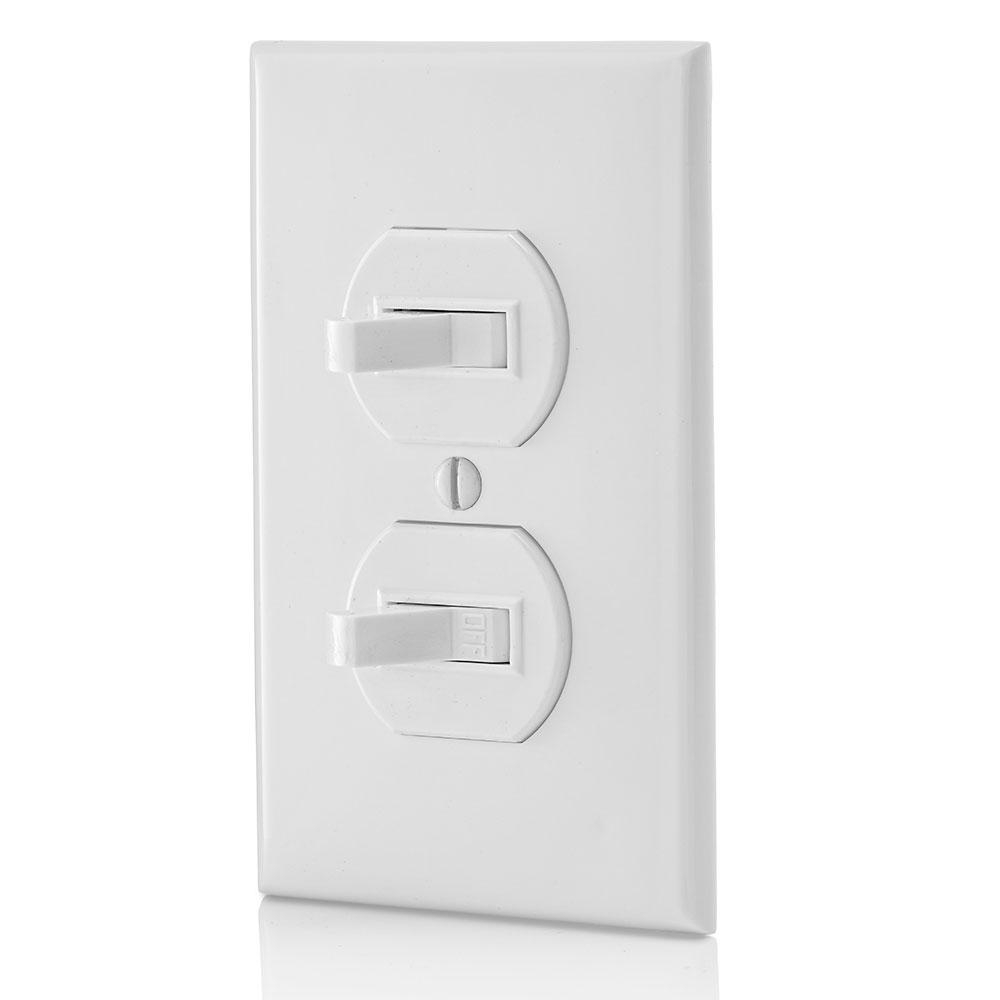

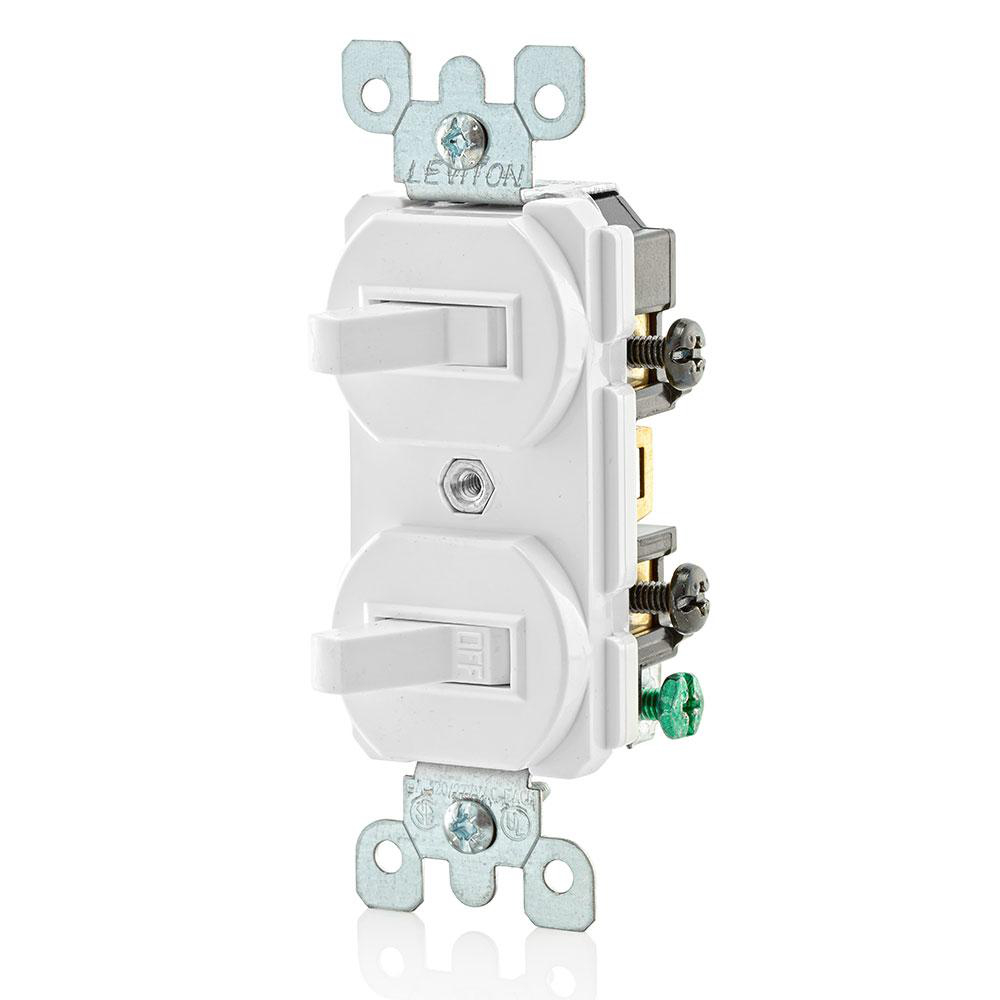

Combination Switch AC duplex commercial grade 15A 120V white

Manufacturer: Leviton Manufacturing | Catalog # 5241-WS | Electrozad South Part # 233484
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Commercial grade duplex style single pole/3 way AC combination switch. Non-grounding and side wired.

Technical Information

Actuator
Toggle
Amperage
12 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120/277 V
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 to 120 degrees C
Size
4.20 H x 1.62 W x 16 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rise
30 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex Style, 1/3 Way, Combination
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL COMBINATION DEVIC

General Product Info

12-Digit UPC
078477070987
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477070987
Product Type
2-Switch Combo

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
