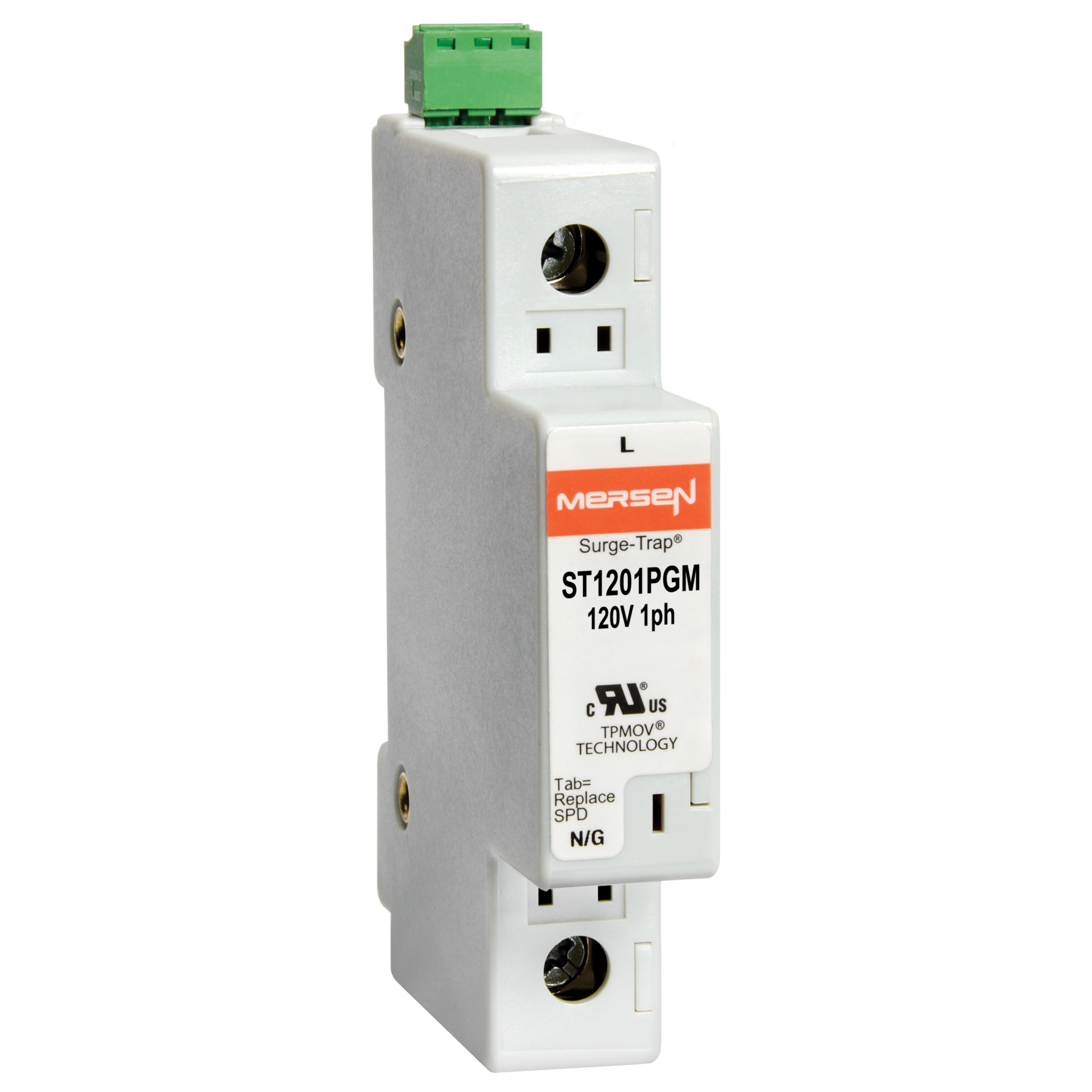

SPD - Modular ST Series 120V 50 kA 1-pole Microswitch Ind

Manufacturer: Ferraz Shawmut Mersen | Catalog # ST1201PGM | Electrozad South Part # 233454
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Surge-Trap® Modular Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen...s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Modular SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.

Technical Information

Applications
AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment
Connection Type
Box
Current Type
AC
Frequency
50/60 Hz
Indicator
Microswitch
Max Discharge Current
50 kA
Max Operating Temperature
85 degrees C
Minimum Operating Temperature
-40 degrees C
Mounting Type
DIN Rail
Nominal Discharge Current
20 kA
Number of Poles
1
Number of Wires
2
Response Time
<25 Nano-Seconds
Short Circuit Current Rating
200000 A
TC Connection
Box
Terminal Material
Zinc-Plated Steel
Terminal Type
Box
Torque
15 lb-in
Torque Rating
15 lb-in
Type
Surge-Trap® SPD

Packaging

Package Qty
3

Manufacturer Information

Brand
Mersen
Sub Brand
Surge-Trap®

General Product Info

12-Digit UPC
782001361389
GTIN
00782001361389
Housing Material
Polyethelene Terphthalate
Weight
0.25 lb

Dimensions

Height
2.7 in
Length
3.58 in
Width
0.7 in

Certifications & Compliance

Country of Origin
Mexico
