UGS350ULDB

Manufacturer: Burndy | Catalog # UGS-350UL-DB | Electrozad South Part # 232527
$63.53 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

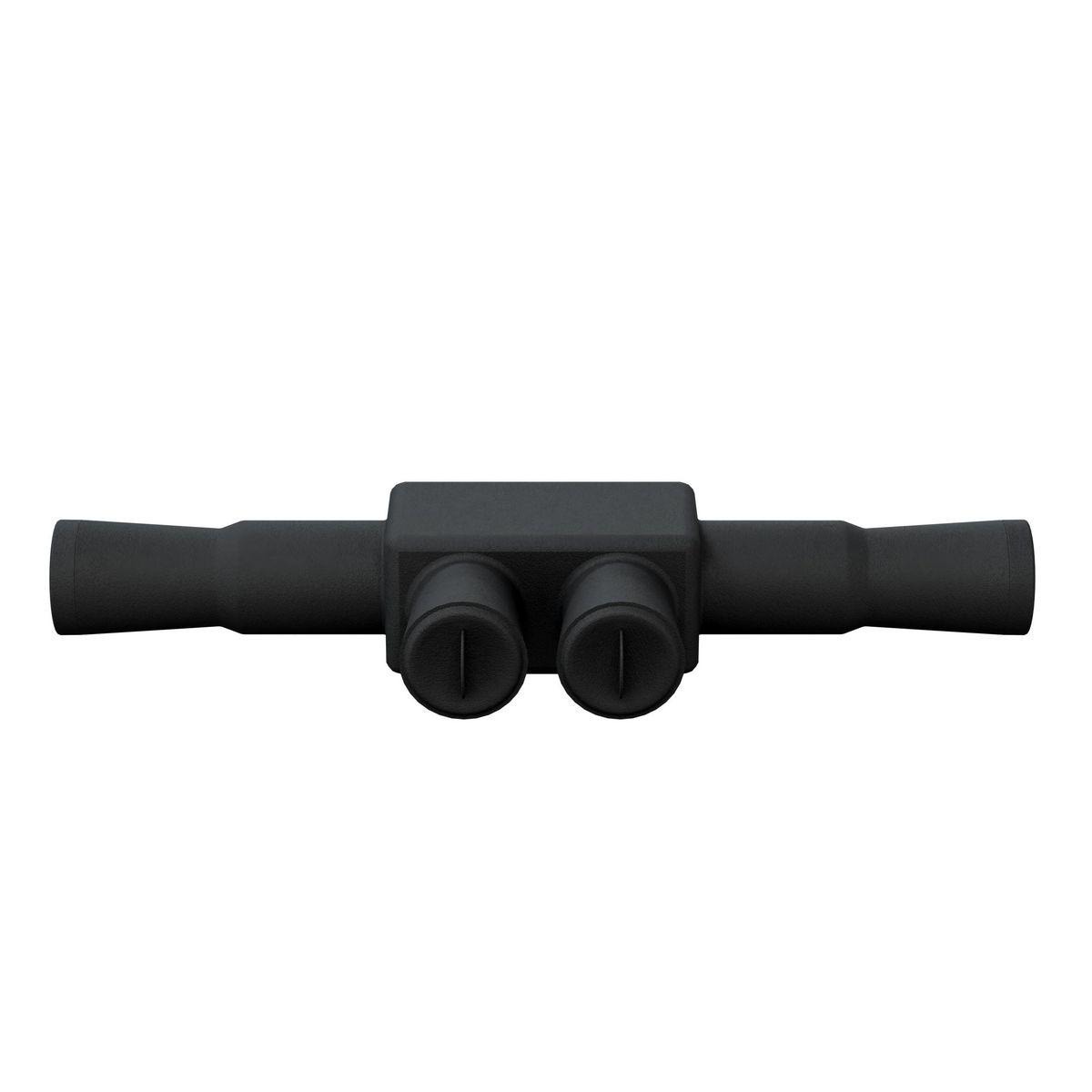

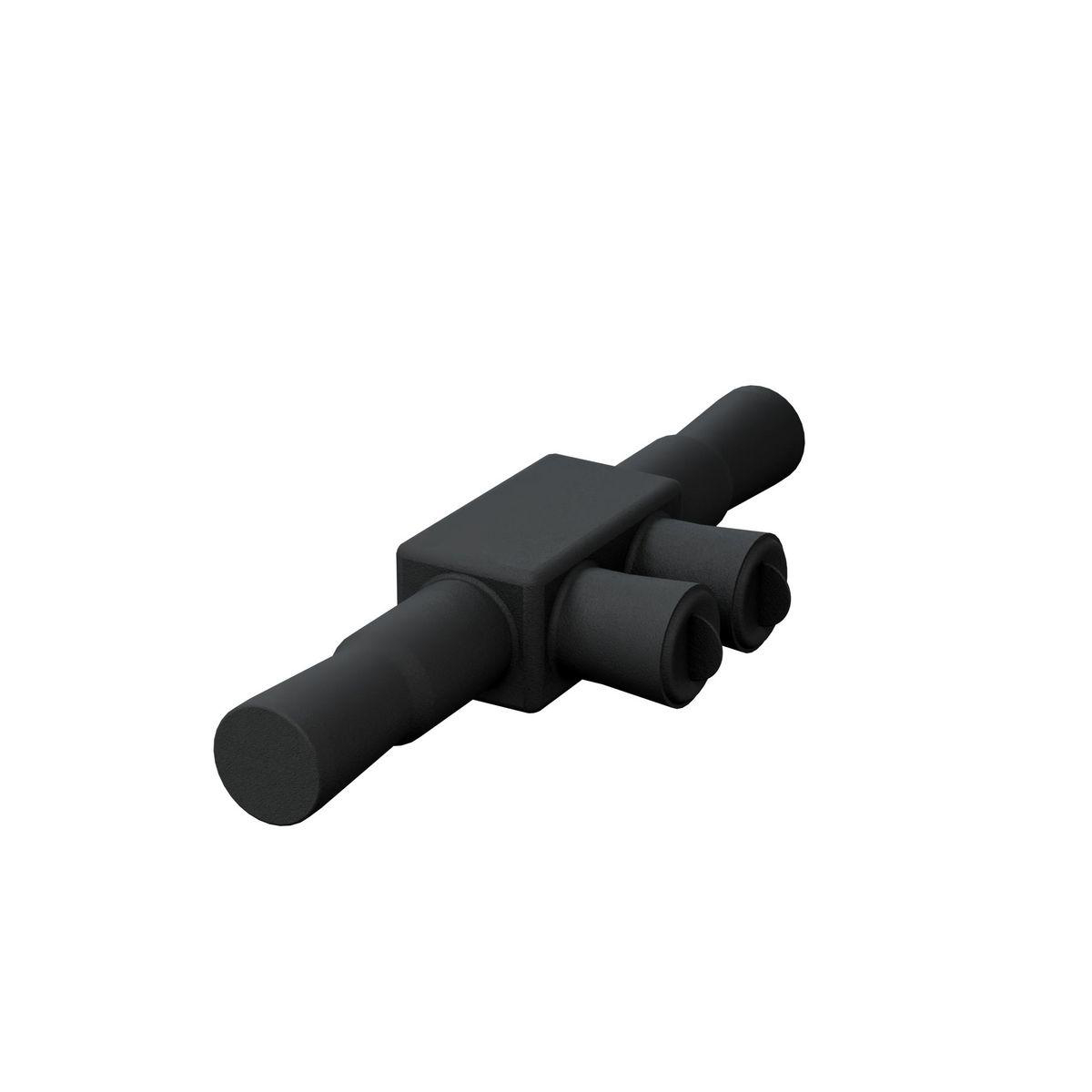

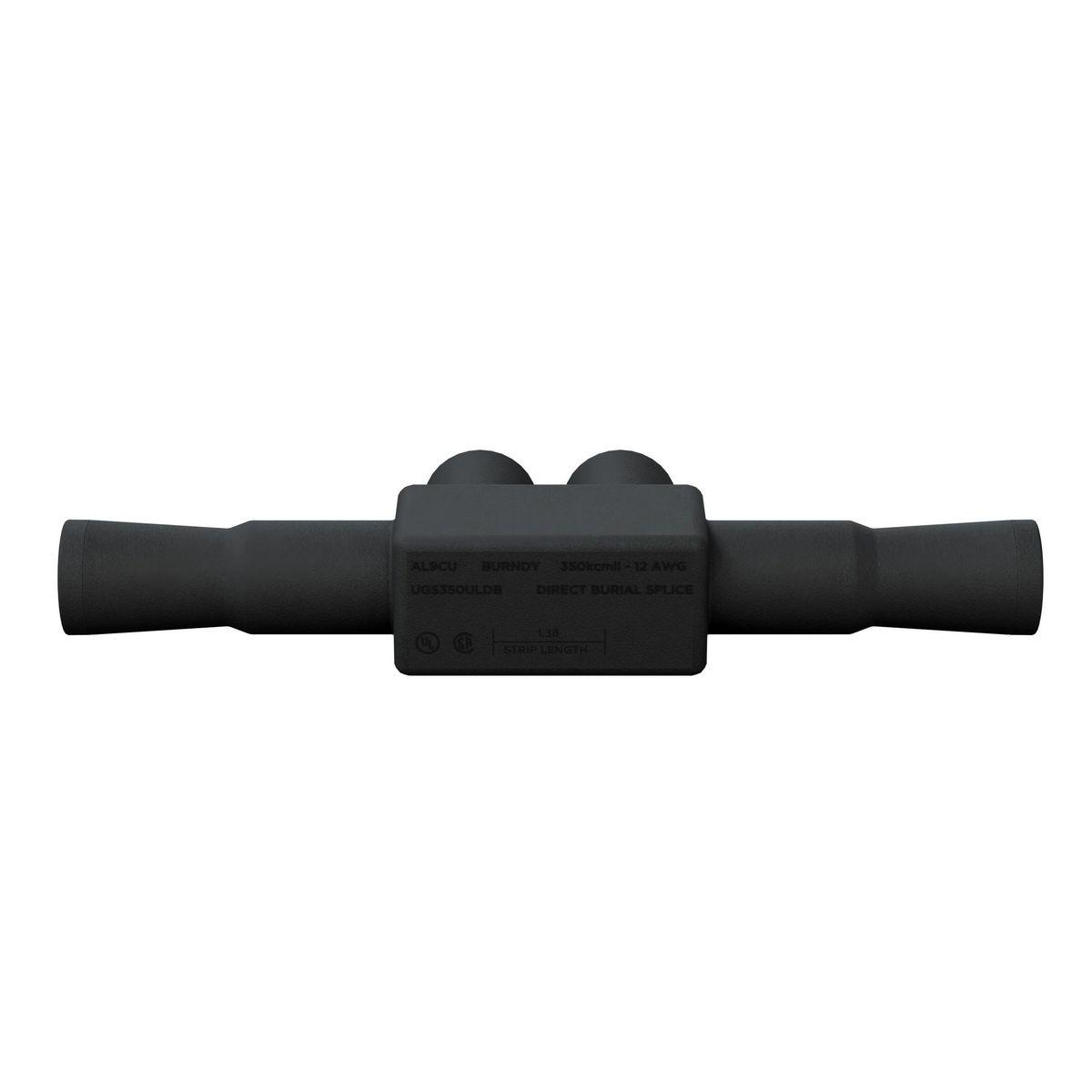

In-Line Splice/Reducer for Direct Burial, #12 AWG-350 kcmil Al/Cu, Dual Rated AL9CU

Technical Information

Applications
For Direct Burial
Conductor Size
12 AWG - 350 kcmil
Conductor Type
Aluminum and Copper
Connection Type
In-Line
Direct Burial?
Yes
Insulation Type
Rubber
Material
EPDM Rubber Covered 6061-T6 Aluminum Connector
Plated?
No
Plating Type
Unplated
Screw Type
Slot
Size
2.81 IN Height X 8.50 IN Length
Temperature Rating
194
Type
Inline, Underground

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810343807
GTIN
00781810343807

Dimensions

Height
2.81 in
Length
8.5 in
Overall Length
8.50 in
Width
2.81 in

Certifications & Compliance

Country of Origin
USA
CSA
Yes
