3M™ 5317 Motor Lead Pigtail Splice Kit

Manufacturer: 3M | Catalog # 5317 | Electrozad South Part # 231369
$446.53 /ea
kt
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing

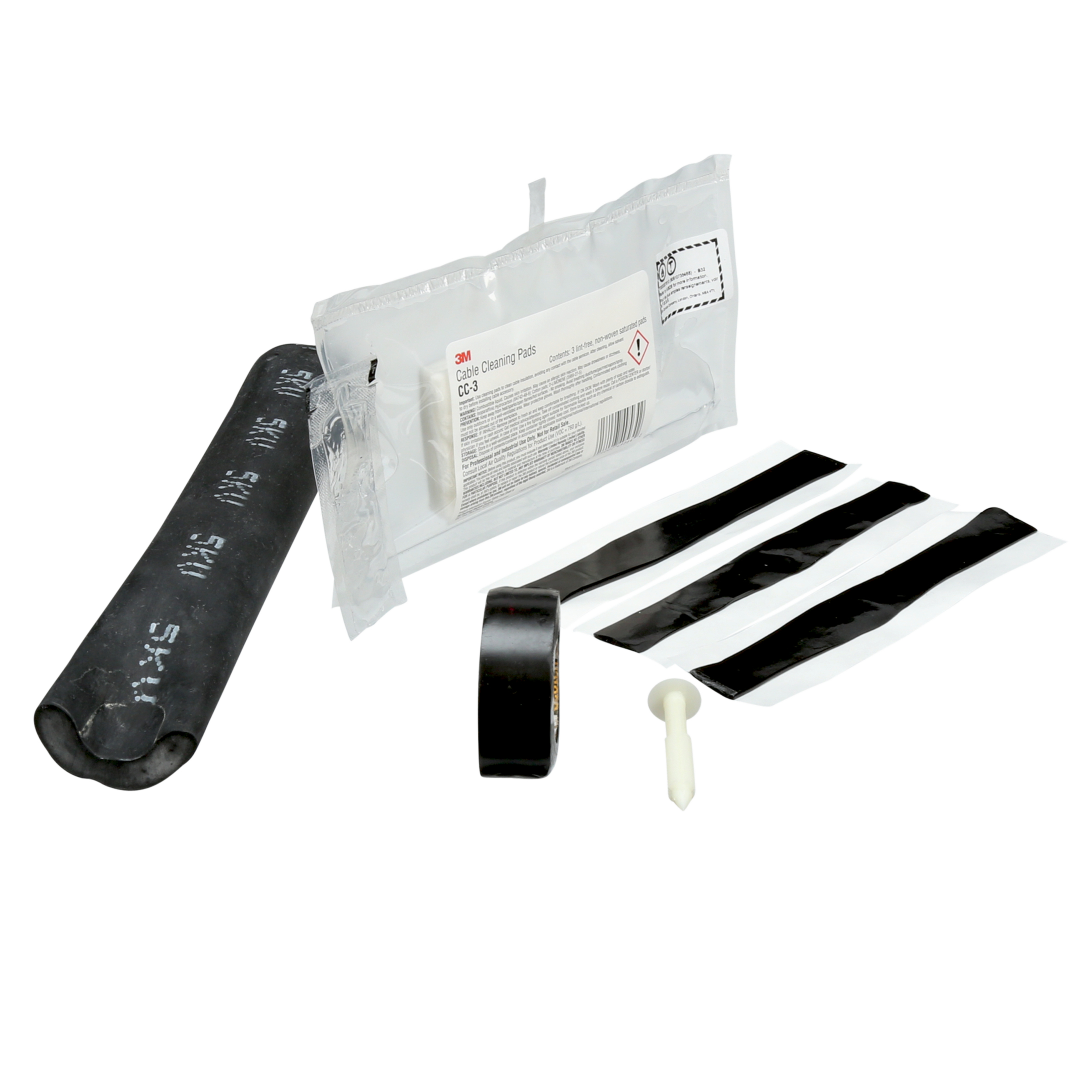

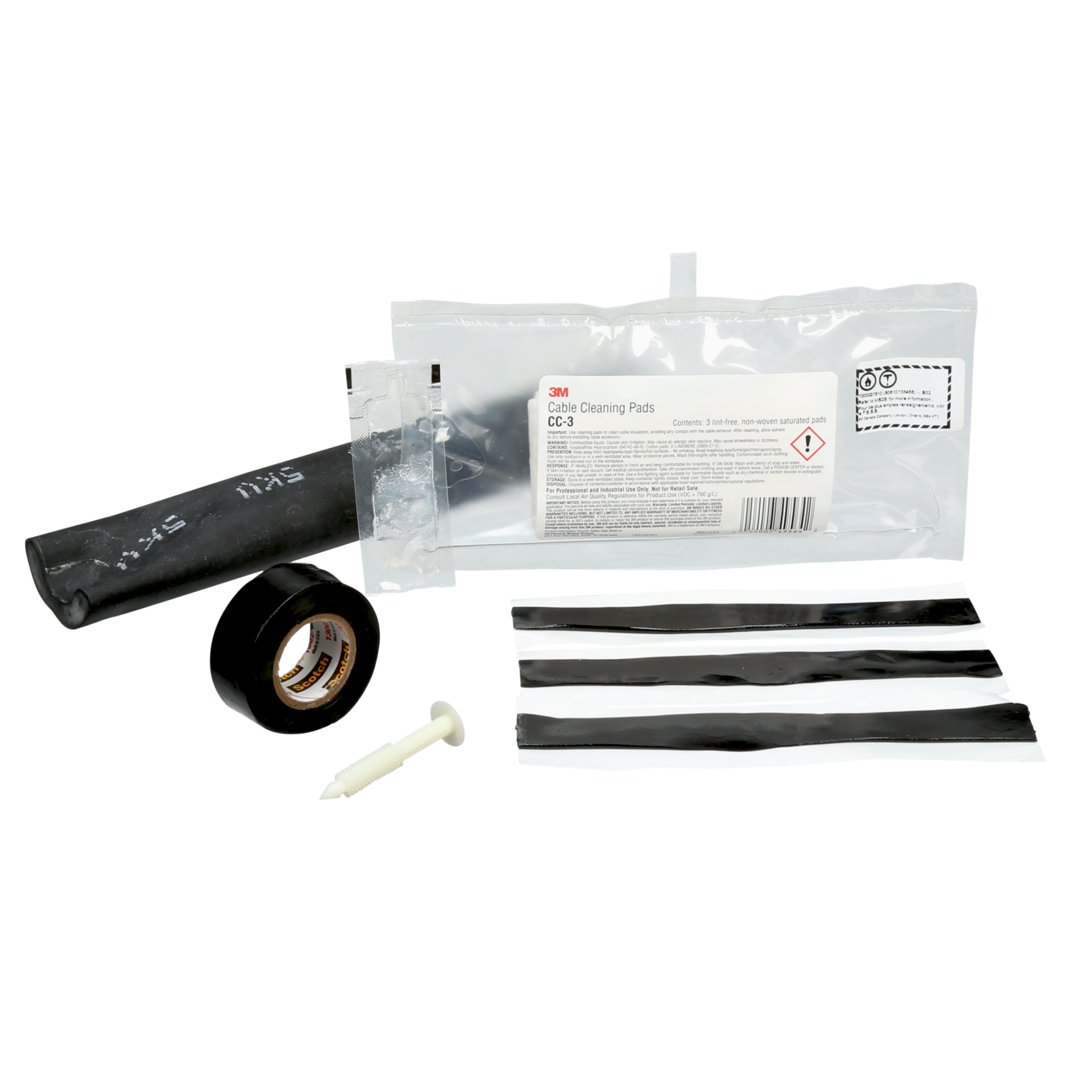

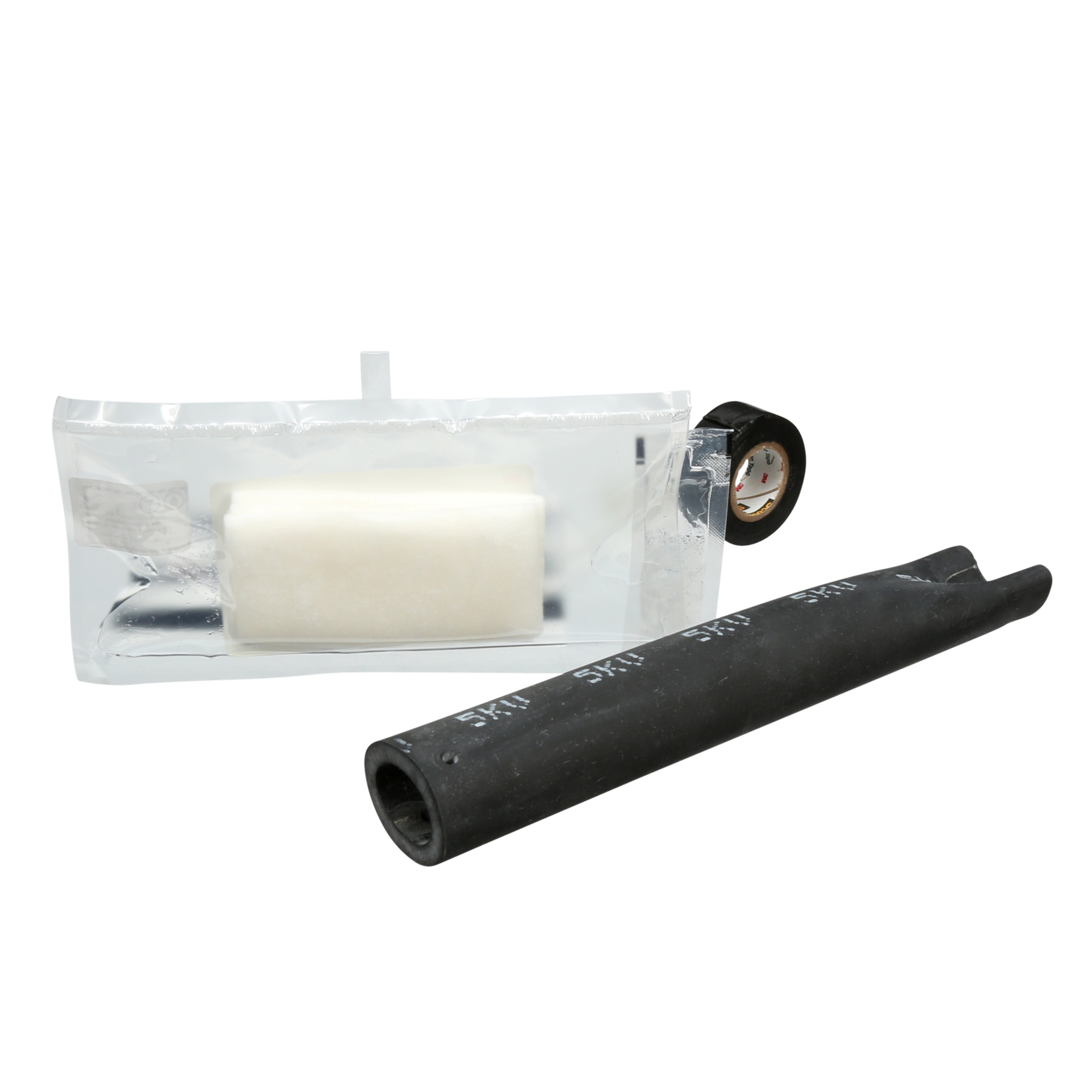

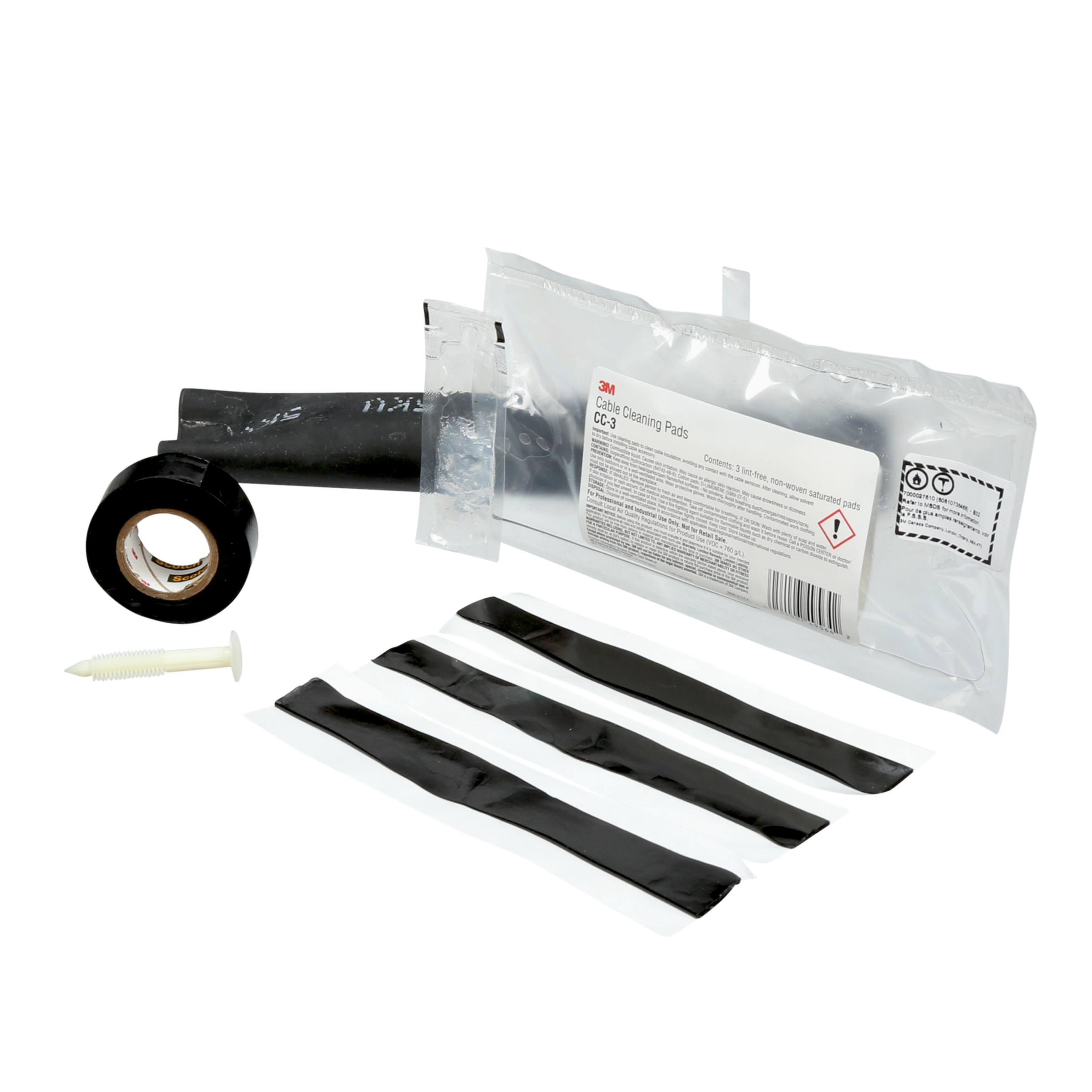

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 1/0 AWG-250 kcmil (60-120 sq mm), motor lead 2 AWG-250 kcmil (35-120 sq mm).

Technical Information

Conductor Size
2 AWG - 1/0 kcmil Feeder Cable, 4 AWG - 1/0 kcmil Motor Lead
Connection Type
Pigtail
Material
EPDM Rubber
Temperature Rating
90 degrees C
Voltage
8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007083146
Color
Black
GTIN
00054007083146
Product UPC
05400708314
Used With
Copper Compression, 1 or 2 Hole Lugs

Dimensions

Length
9-1/2 in
