Box assembly floor receptacle 2P 3W 125V 15AMP nickel/ivory

Manufacturer: Leviton Manufacturing | Catalog # 25249-SBA | Electrozad South Part # 230613
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing

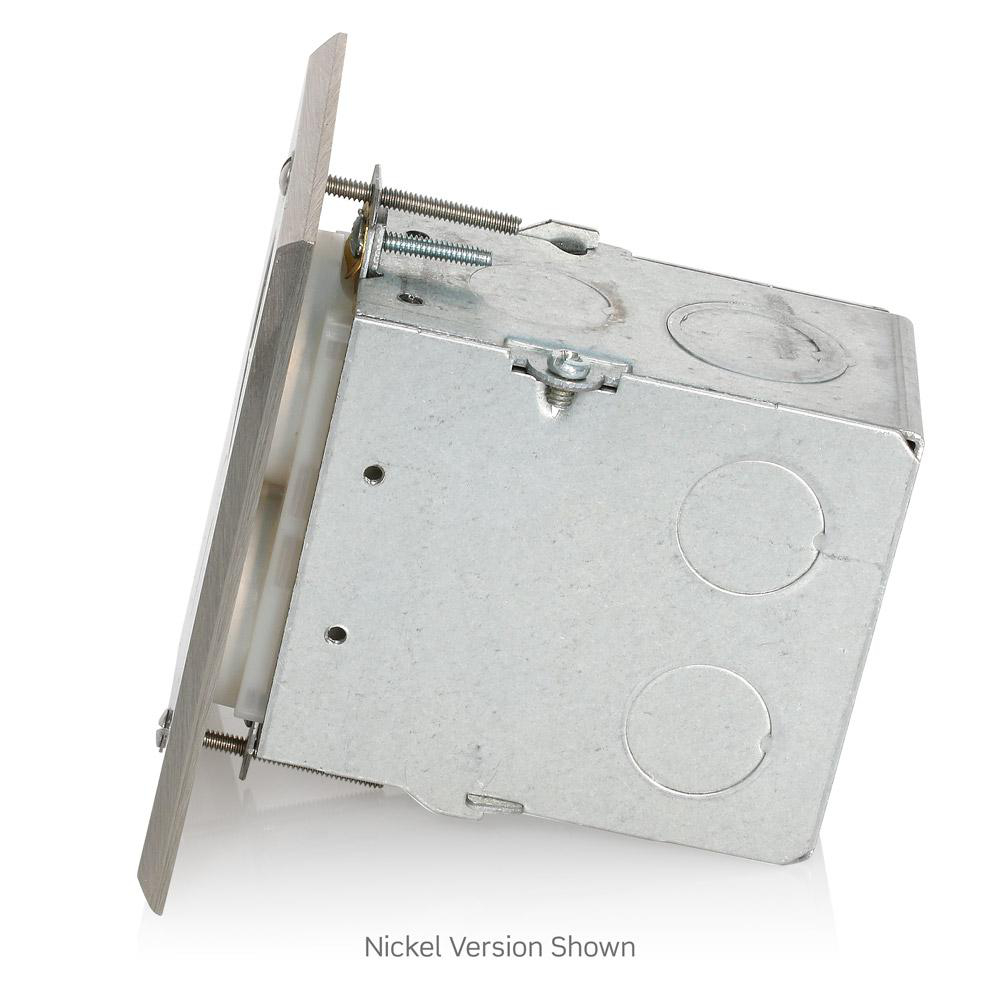

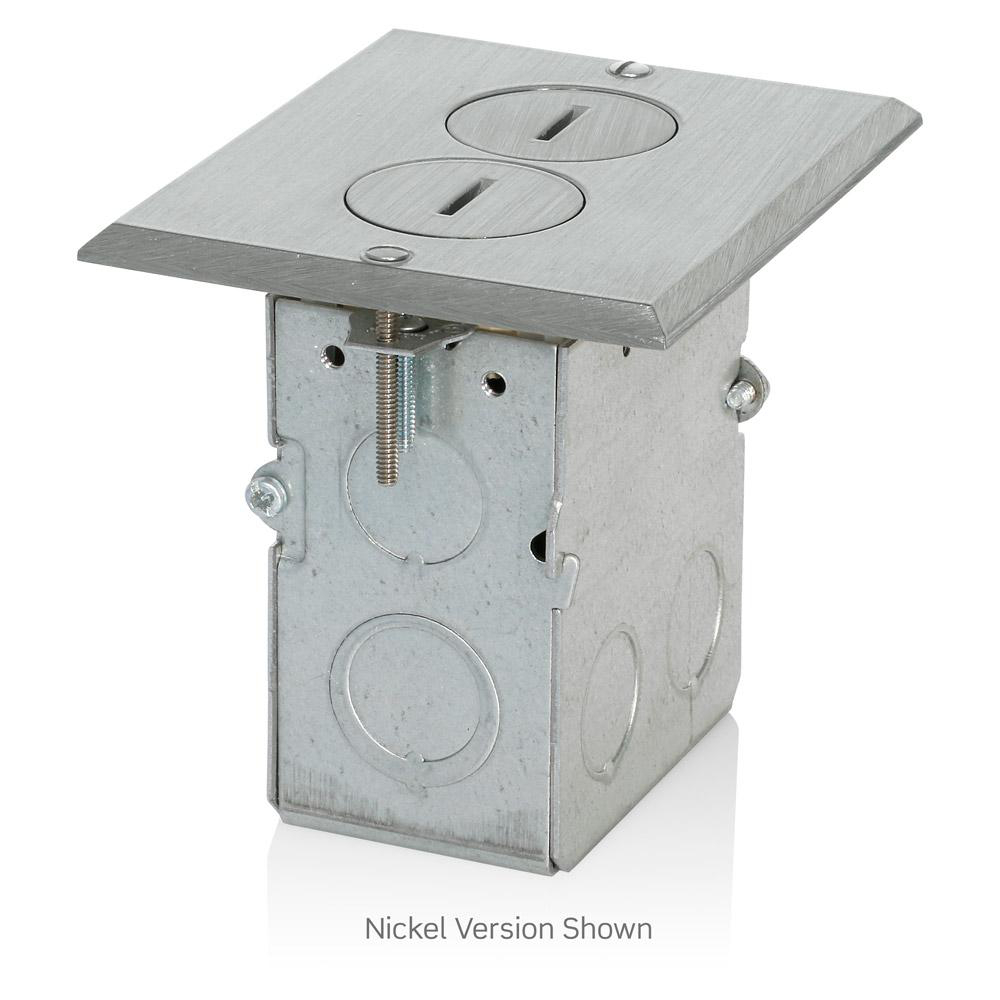

Leviton's floor boxes are an all-in-one, ready-to-wire unit, providing a quick and easy installation. Thick brass plate and screw cap resist abuse and prevent contaminant from entering device. Our floor boxes feature durable thermoplastic receptacle face and body resisting breakage. Floor box assembly includes brass with brushed nickel finish floor plate, gasket, screw cap, O-ring and switch box.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Nylon
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Floor Box
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
4.50 H x 3.75 W x 4.50 D IN
Standard
ANSI C-73
Temperature Rating
-40 To 60 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Floor Box Duplex Receptacle
Voltage
125 V
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
FLOOR BOXES and POKE THROUGHS

General Product Info

12-Digit UPC
078477307182
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Finish
Brushed Nickel
GTIN
00078477307182

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
