20 Amp, 120/208 Volt, Straight Blade Flush Mount Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 7250-FR | Electrozad South Part # 230008
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
20 Amp, 120/208 Volt, 3.., NEMA 18-20R, 4P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-Grounding, , Side Wired, Steel Strap, - Black

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Nylon
Conductor Size
14 - 6 AWG
Connection Type
Side Wired
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Box
NEMA

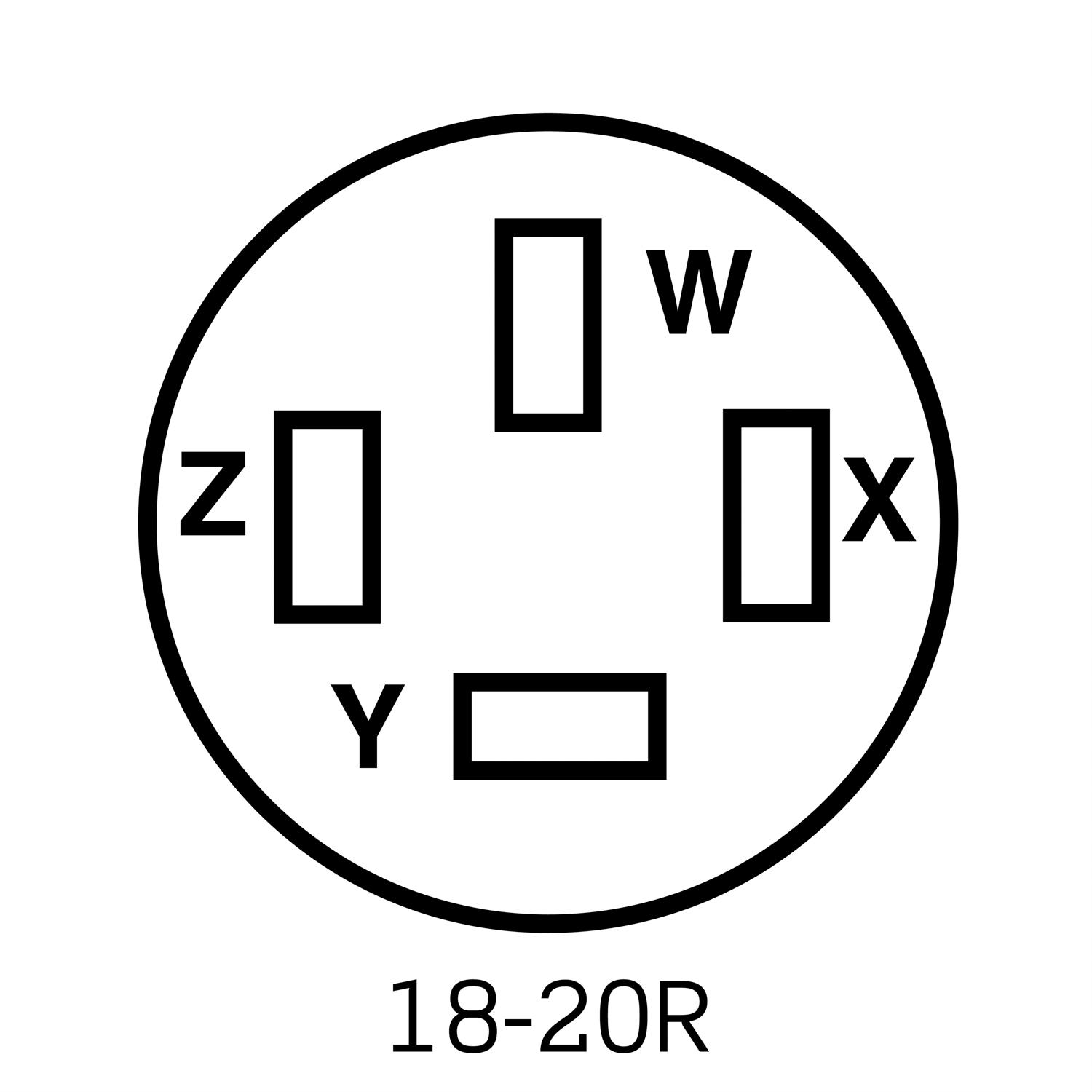

18-20R
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Single
Voltage
120 V
Wire Count
4
Wire Size
14 - 6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477808733
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477808733

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
