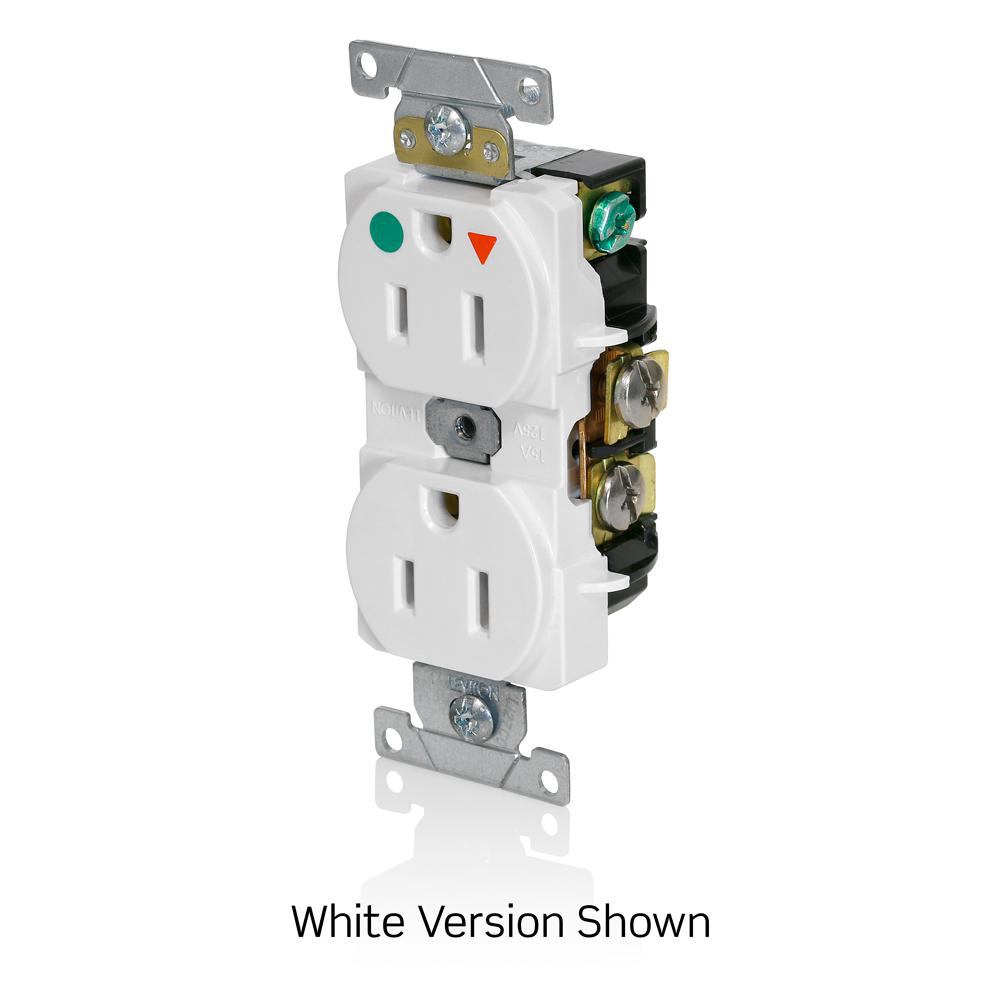

Receptacle duplex 2-pole isolated-ground 15A 125V white

Manufacturer: Leviton Manufacturing | Catalog # 8200-IGW | Electrozad South Part # 229690
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet
Hospital grade duplex straight blade wiring receptacle. Nylon face and body. Brass triple-wipe line contact. Brass 10-32 terminal screw. Brass 8-32 grounding screw. Zinc-plated steel clamp nut. Nickel-plated steel strap. 1/2 HP rating. Isolated grounding. 15 A, 125 V, NEMA-5-15R, 2-pole, 3-wire. Back and side wired. Rated V-2 per UL94 flammability. -40 to 60..C operating temperature. Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.

Technical Information

Amperage
15 A
Applications
Hospital
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Hospital
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wallbox
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
60 degrees C
Size
46 H x 1.55 W x 1.12 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Type
Outlet, Isolated Ground
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477057308
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477057308

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,NOM-ANCE
Country of Origin
Mexico
