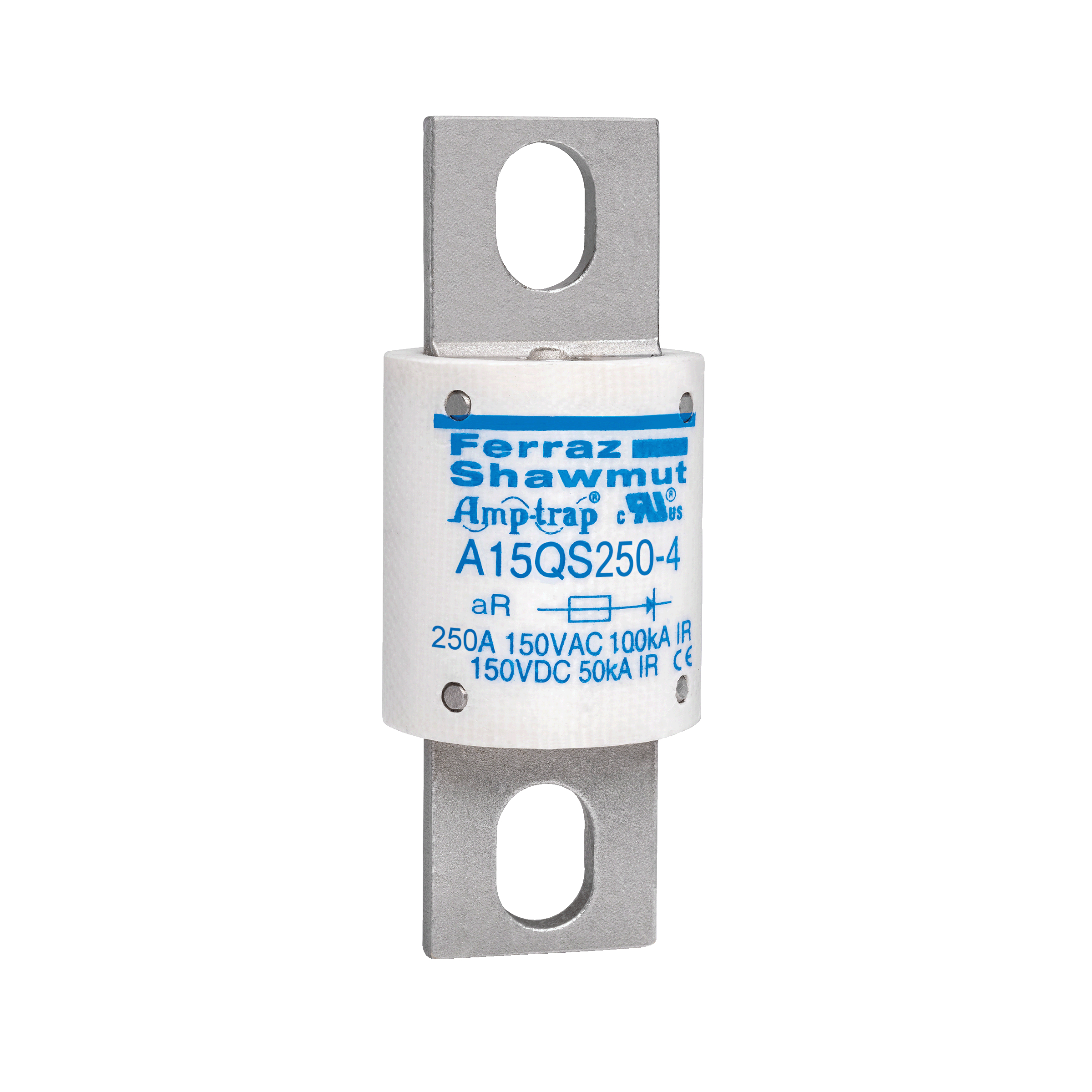

High Speed Fuse Amp-Trap® A15QS 150VAC 150VDC 250A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A15QS250-4 | Electrozad South Part # 22961
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line...s compact design is perfect for those applications that have limitations on available space.

Technical Information

Amperage
250 A
Applications
Protection of AC/DC Drives, UPS, Rectifiers and other Equipment of 150 V or Less
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
150 V
Rated Voltage DC
150 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
North American
Voltage
150 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001287887
GTIN
30782001287888
Weight
0.17 lb

Dimensions

Diameter
1.13 in
Length
2.66 in

Certifications & Compliance

Country of Origin
Mexico
