Sensor occupancy 1pole 180.. 277V wht 2400sqft

Manufacturer: Leviton Manufacturing | Catalog # OSSMT-GDW | Electrozad South Part # 228206
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

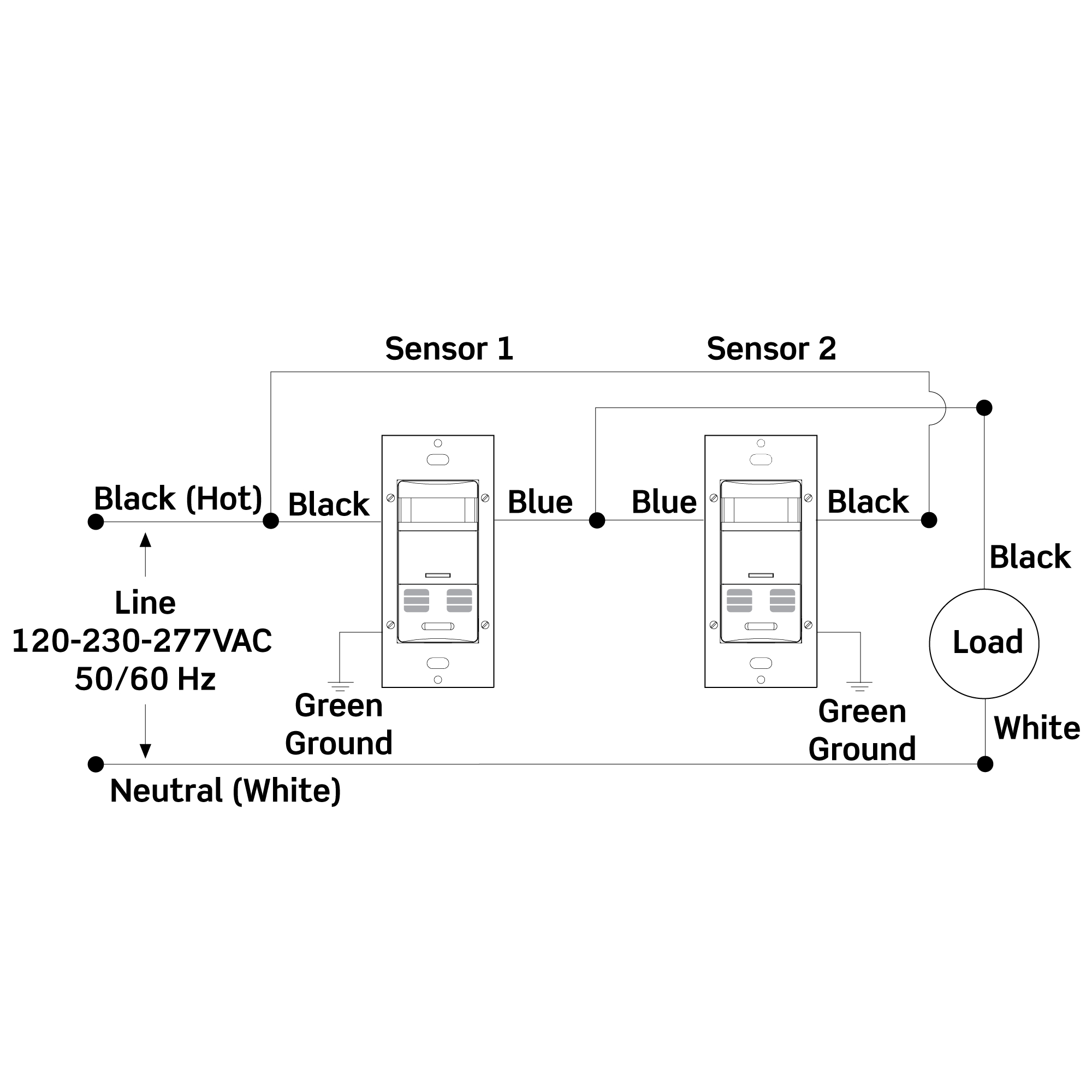

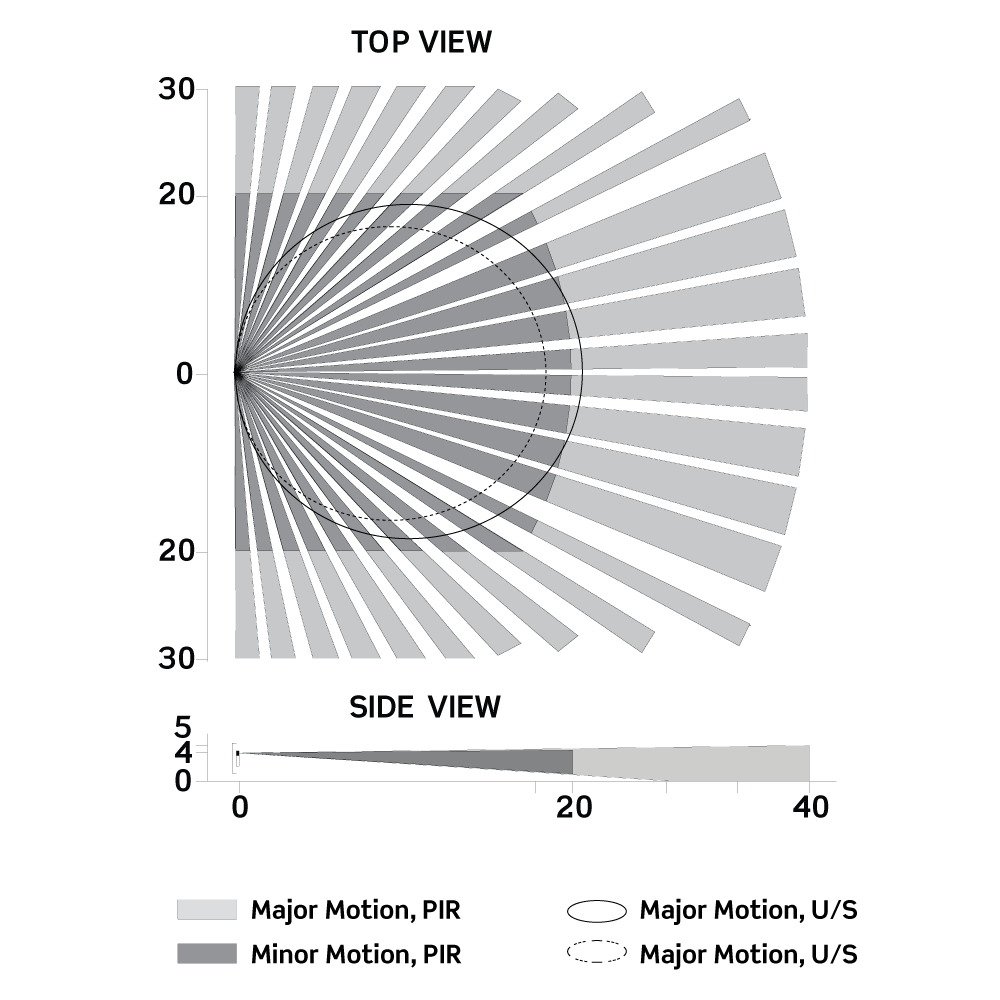

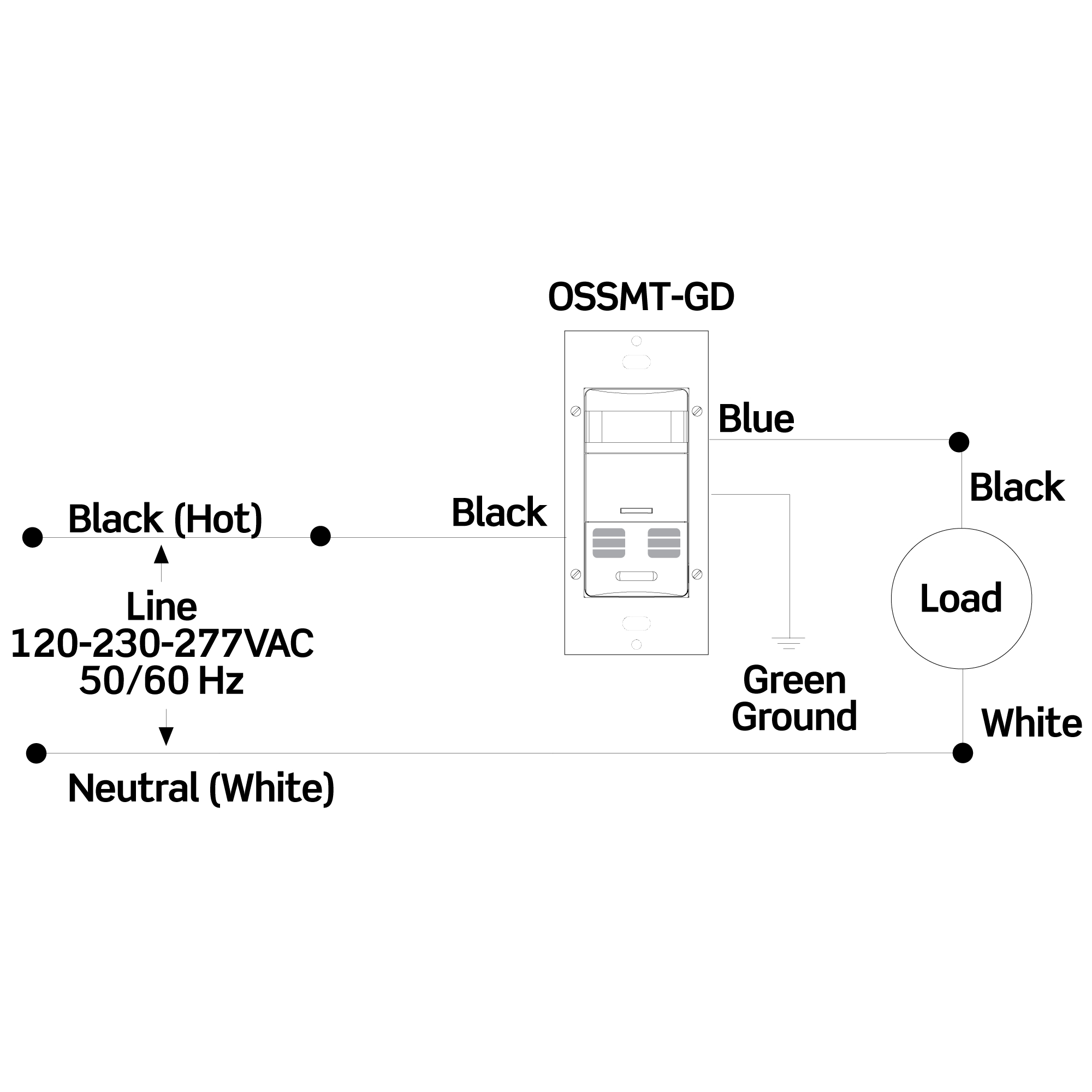

Decora® wall switch multi-technology occupancy sensor with fast, simple installation fits in a standard wall box and replaces a single-pole wall-switch, neutral and no neutral options available. Sensor can be ganged together with other units in a multiple-switch wall plate. The OSSMT provides a 180 degree field-of-view with a maximum coverage area of approximately 2400 square feet. The maximum sensing distance in front of the sensor is 40 feet and side to side is 30 feet. Convenient pushbutton provides manual ON/OFF light switching at any time. False detection circuitry.

Technical Information

Applications
For Commercial use
Coverage
2400 sq-ft
Device Type
Occupancy Sensor
Frequency
50 Hz
Grade
Commercial
LED Color
Green,Red
Mounting Type
Wall
Number of Poles
1
Operating Temperature
0 degrees C
Power Consumption
120 V
Response Time
30 min
Sensor Type
Ultrasonic, Passive Infrared
Size
67.26 mm
Standard
CEC Title 24 Compliant,CSA,CUL,ETL\cETL Listed,FCC Compliant,NAFTA (CF434),UL Listed
Storage Temperature
-10 To 85 degrees C
Switch Type
Single-Pole,Single-Pole
Temperature Rating
0 degrees C to 40 degrees C
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477406960
Color
White
Environmental Conditions
0 to 50 50 Deg C Operating
GTIN
00078477406960

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Certifications
UL/cUL
Country of Origin
China
