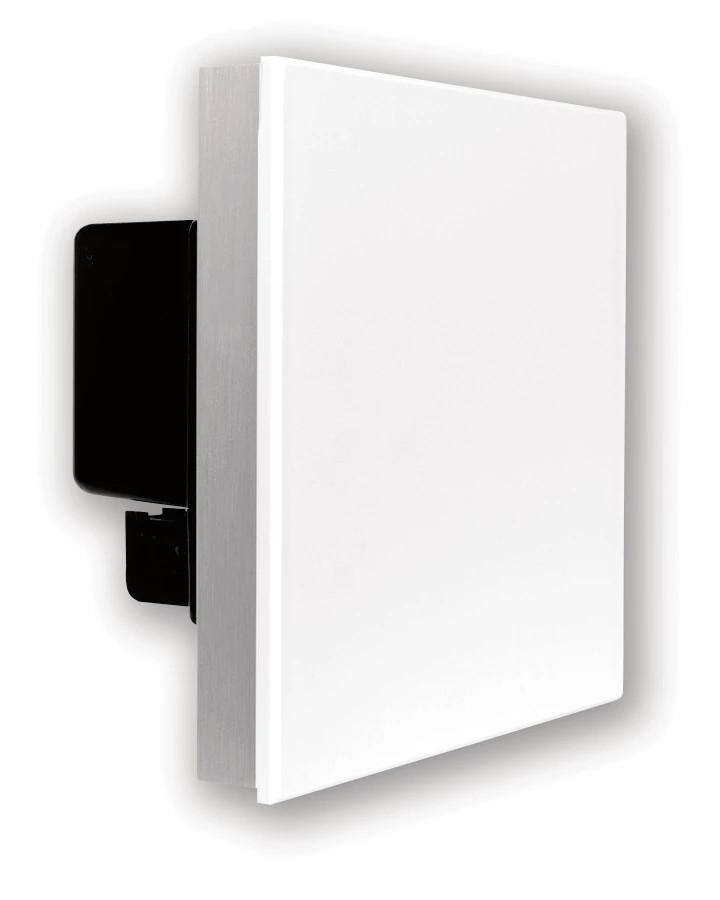

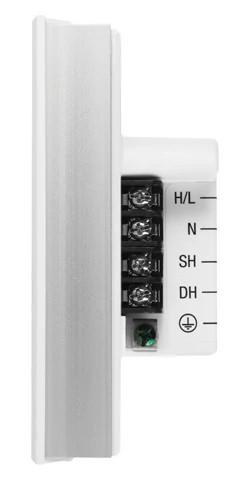

Power module phase-adaptive 120V 16A white

Manufacturer: Lutron Dimmers | Catalog # PHPM-PA-120-WH | Electrozad South Part # 227840

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Phase-adaptive power module provides capability for a zone on a GRAFIK Eye® control unit (or other product) to dim a fully loaded circuit of lighting. May be used to control incandescent, electronic low-voltage, magnetic low-voltage and neon/cold cathode lighting sources, as well as Lutron® Tu-Wire® fluorescent dimming ballasts. Automatically selects leading-edge or trailing-edge dimming for low-voltage transformers. Provides power and dimming for one zone. Not for use with non-dim loads.

Technical Information

Applications
For Indoor Use, Lighting Control
Cooling Concept
Air
Enclosure Material
Plastic
Frequency
50 Hz
Input Voltage
120 V
Insulation Material
Plastic
Material
Plastic
Mounting Type
Recess,Surface
Output Voltage
120 V
Standard
CIDET,CSA,NOM,RoHS,UL
Temperature Rating
0 degrees C to 40 degrees C
Type
Phase-Adaptive

Manufacturer Information

Brand
Lutron

General Product Info

12-Digit UPC
027557533881
Color
White
Environmental Conditions
0 To 40 °C
GTIN
00027557533881

Dimensions

Height
5.1 in
Length
2.4 in
Width
6.3 in

Certifications & Compliance

Country of Origin
USA
