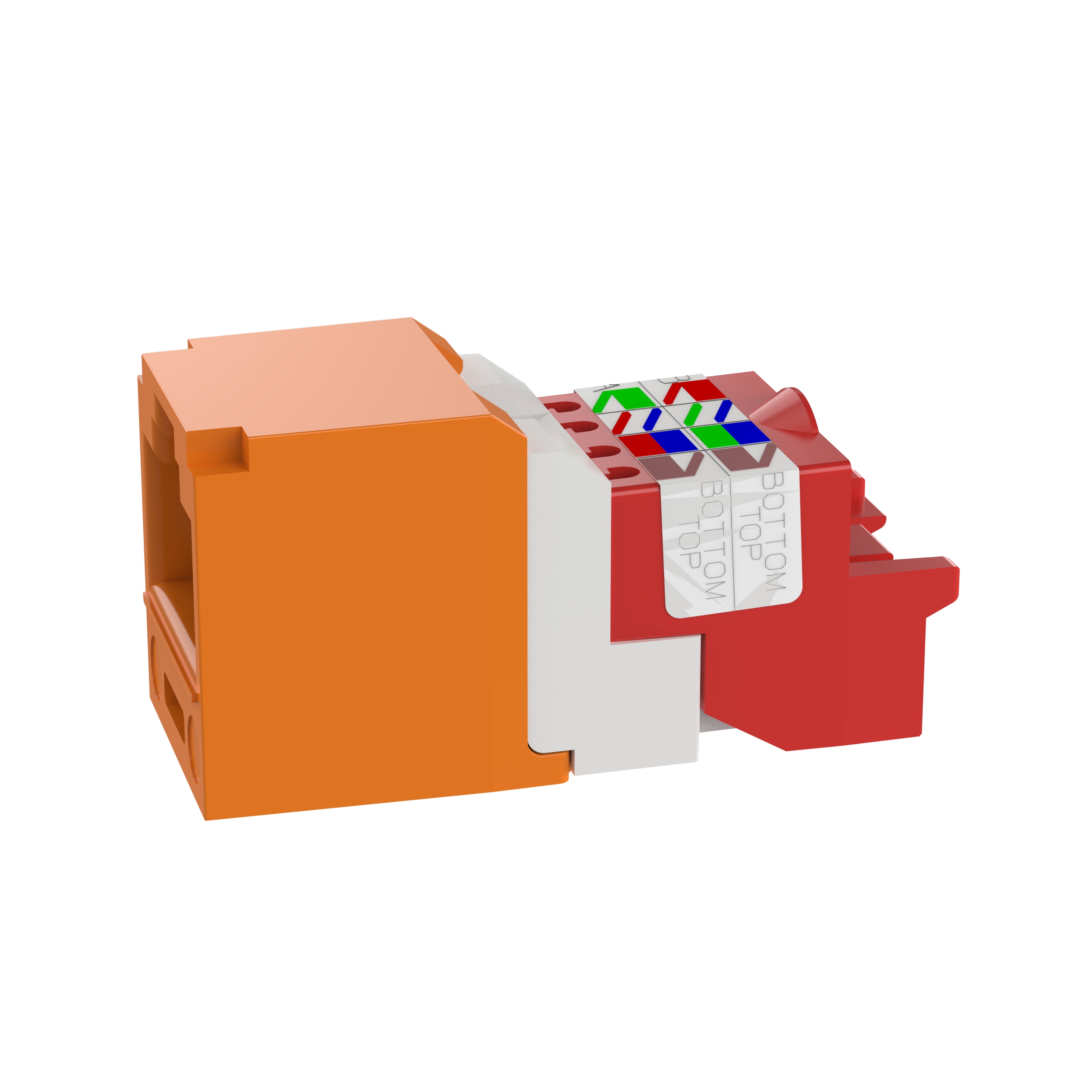

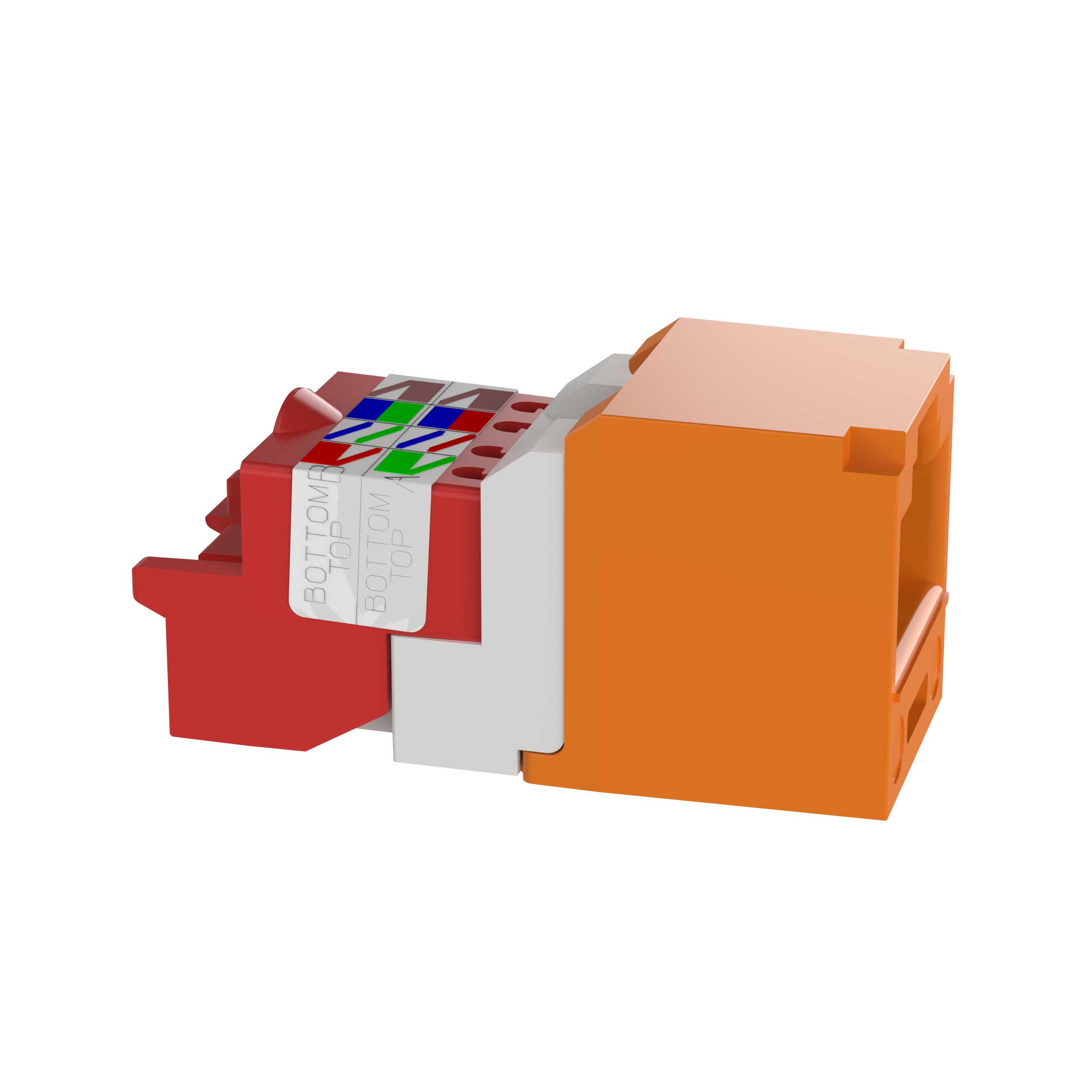

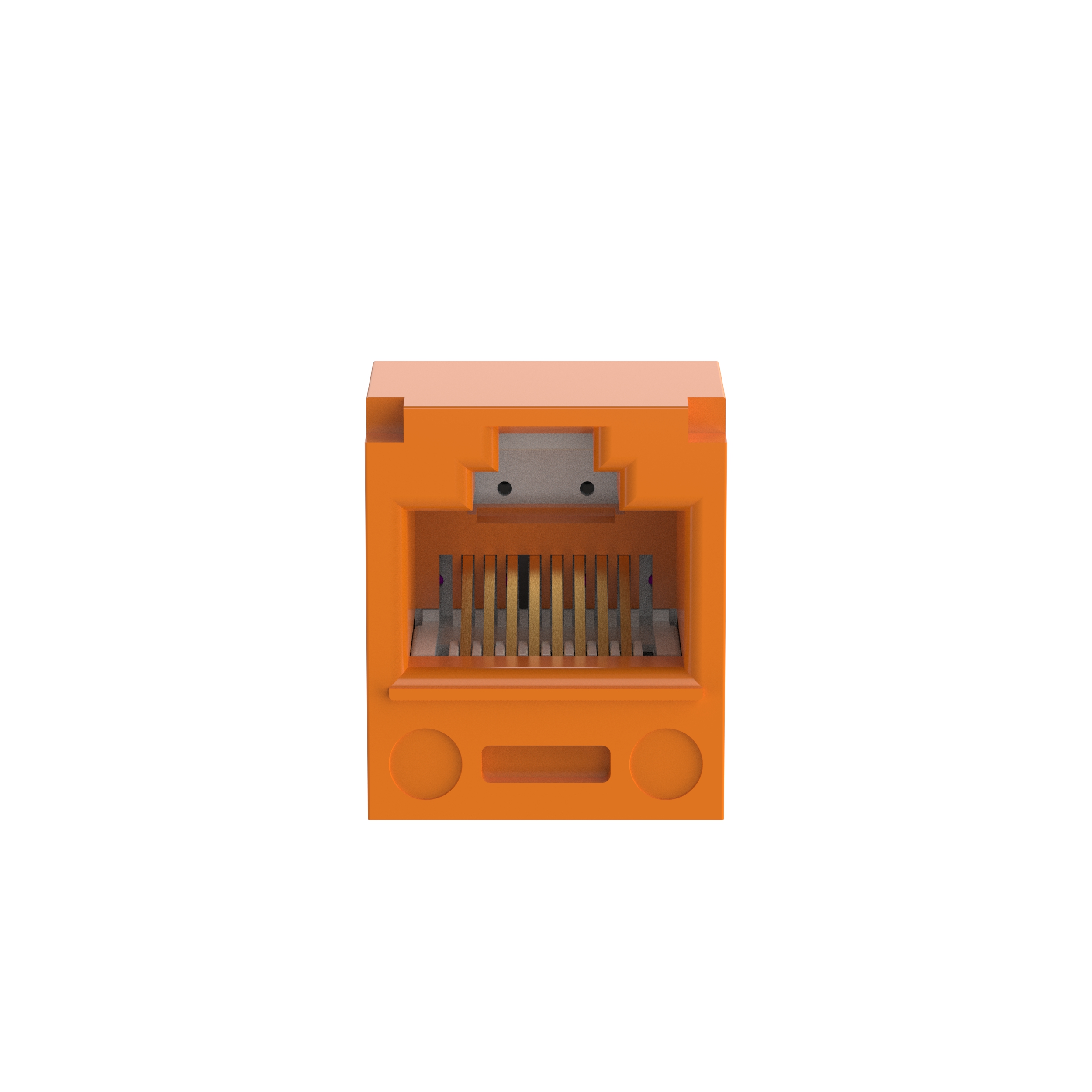

Module UTP jack CAT5e 8-position 8-wire ABS orange

Manufacturer: Panduit | Catalog # CJ5E88TOR | Electrozad South Part # 226187
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual Technical Drawing
Mini-Com® TX5e™ UTP Jack module. Category 5e/class-D, 8-position, UTP jack module shall terminate solid, 4-pair, 24 to 22 AWG, 100.. unshielded twisted pair cable and shall not require use of a punch down tool. UTP jack module shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be colour-coded red to designate Category 5e performance and shall include a universal label coded for T568A and T568B wiring schemes.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Material
ABS
Max Operating Temperature
149 degrees F
Minimum Operating Temperature
-10 degrees C
Performance Level
Category 5e
Type
8-Wire, Unshielded

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983771387
Color
Black,Orange,White
GTIN
00074983771387
UNSPSC
43223301

Dimensions

Depth
1.43 in
Height
0.71 in
Overall Length
1.43 in
Width
15.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
