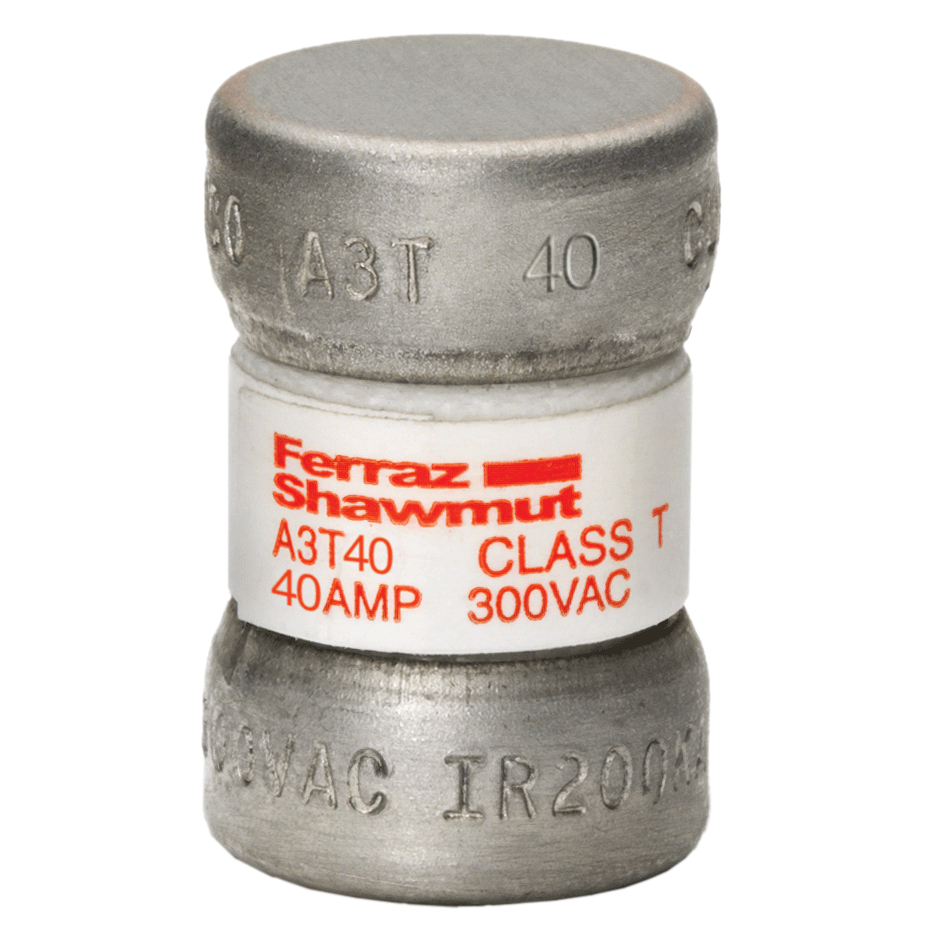

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 40A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A3T40 | Electrozad South Part # 22511
*Call For Price*
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Technical Drawing
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
40 A
Applications
Load Centers Panelboards Switchboards Circuit Breakers Metering Centers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
300 V
Rated Voltage DC
160 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001890117
Class
T
GTIN
30782001890118
Weight
0.02 lb

Dimensions

Diameter
0.56 in
Length
0.88 in
