Starter motor manual non-fused 3-pole 30A 600V

Manufacturer: Leviton Manufacturing | Catalog # MS4X-303 | Electrozad South Part # 224959
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing

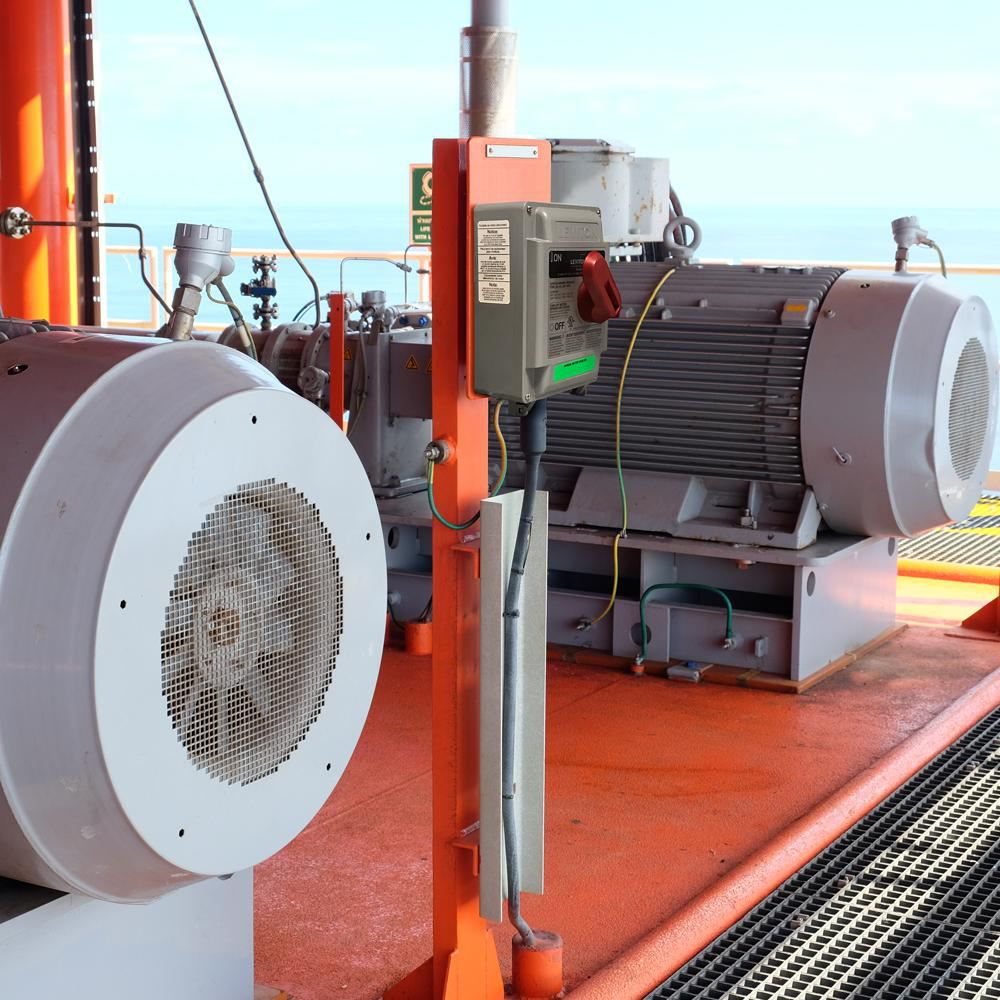

Non-fused manual motor starter. Type-4X thermoplastic enclosure. Captive stainless steel screws in cover wont fall out when cover is open. High impact, non-conductive Valox® PBT resin cover, housing and handle. Interlocking handle prevents cover removal when in ON position. Circuit identification pad for means of identifying specific equipment loads. Field replaceable switches. Compact design saves space and provides for easier installation. Suitable as motor disconnect watertight and dust-tight for industrial applications. IP67 watertight rated.

Technical Information

Action
TPST
Actuator
Toggle
Amperage
30 A
Applications
For Commercial use
Coil Voltage
600 VAC
Contact Configuration
TPST
Contact Material
Silver-Cadmium
Device Type
Enclosed Switch
Dielectric
2200 V
Enclosure
WD-6
Enclosure Type
Thermoplastic Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
NEMA
WD-1
Number of Poles
3
Operating Temperature
-40 to 60 degrees C
Size
7.28 H x 5.28 W x 4.76 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire,Switch Mechanism
Torque
20 lb-in
Type
Enclosure With Three-Pole AC Motor Starter Switch
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Powerswitch®

General Product Info

12-Digit UPC
078477481608
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
00078477481608

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
