ED MCCB,18kA@600V,3P,45A,STD,TM,STD IC | Electrozad South

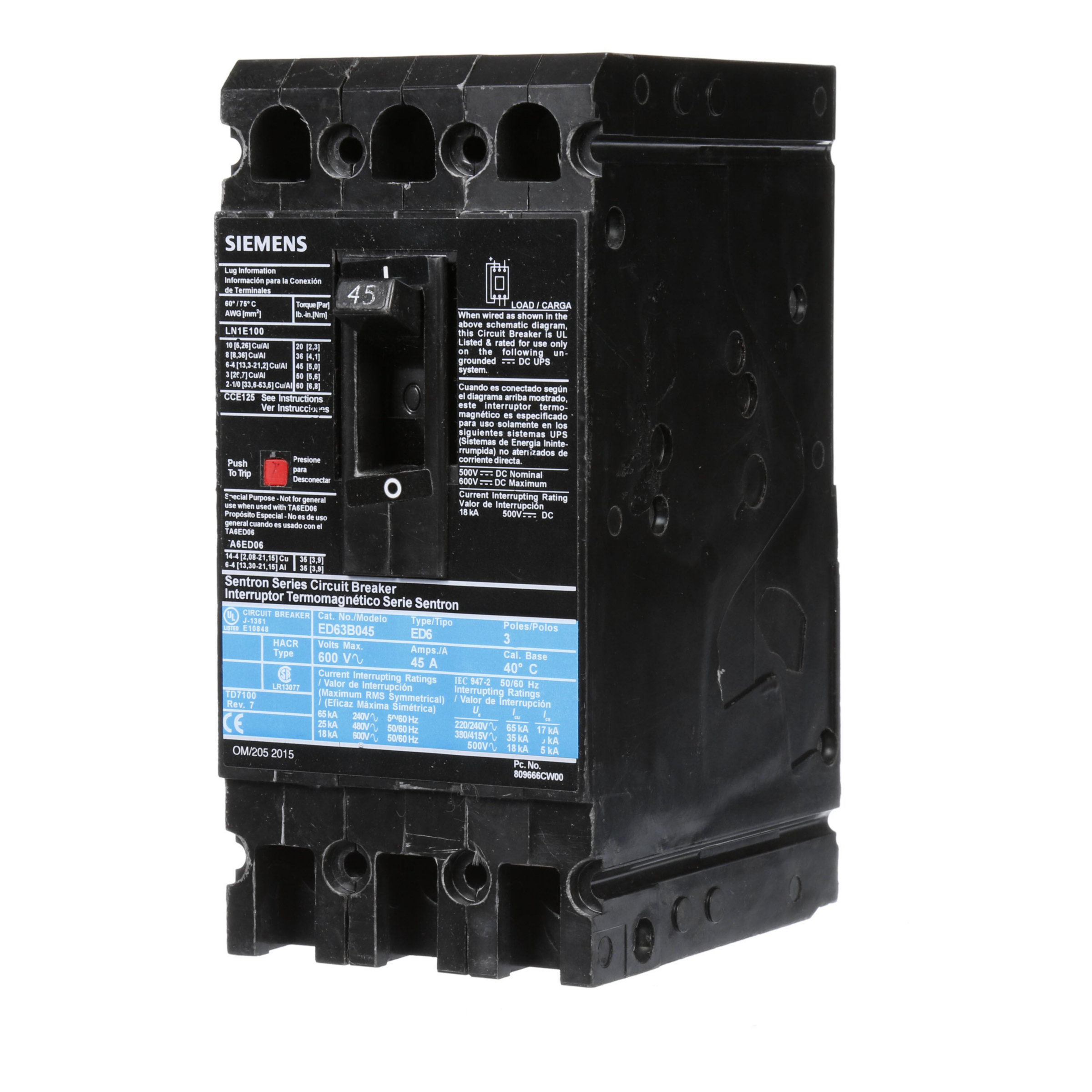

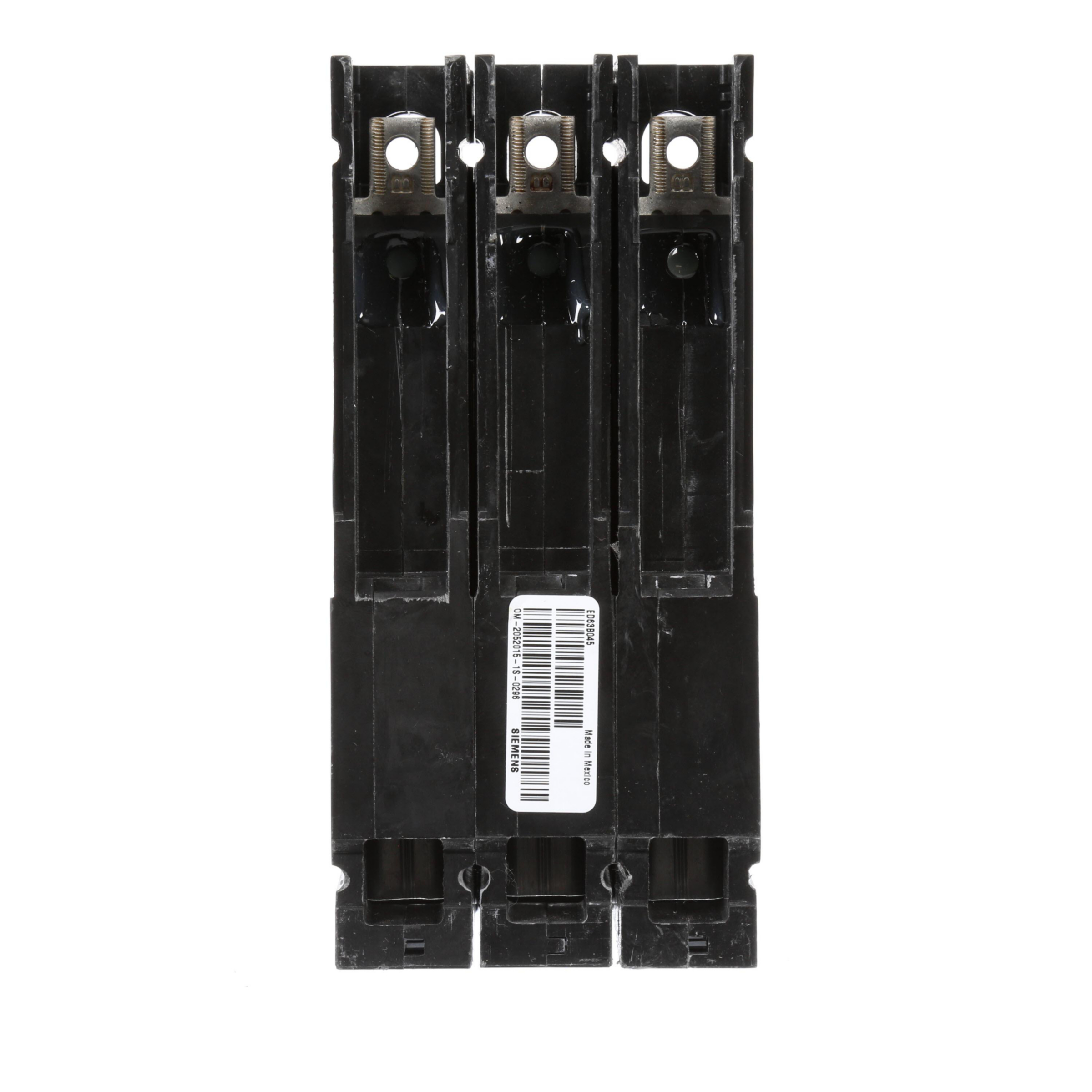

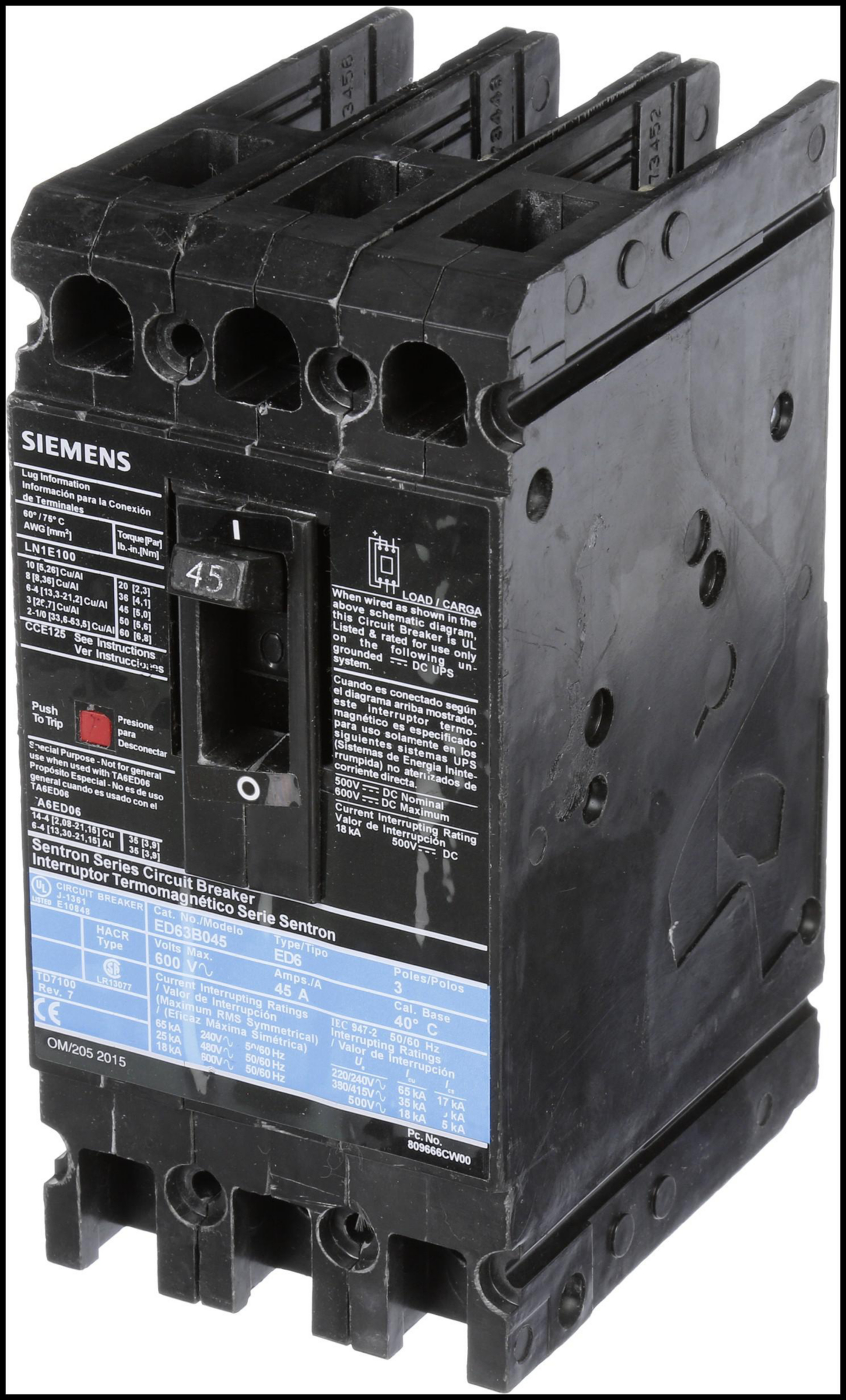

Product image for ED MCCB,18kA@600V,3P,45A,STD,TM,STD IC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

ED MCCB,18kA@600V,3P,45A,STD,TM,STD IC

Manufacturer: Siemens Distribution | Catalog # ED63B045 | Electrozad South Part # 224549
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Type ED Molded Case Circuit Breaker, 18kA @ 600V, 3 Poles, 45A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ED
Interrupt Rating
18 kA
Load Rating
N/A
Number of Poles
3
Operating Temperature
40C
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED6

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643209725
GTIN
00783643209725
Weight
3.705 lb

Dimensions

Height
5.650 in
Length
6.500 in
Width
4.000 in

Certifications & Compliance

Country of Origin
Mexico
