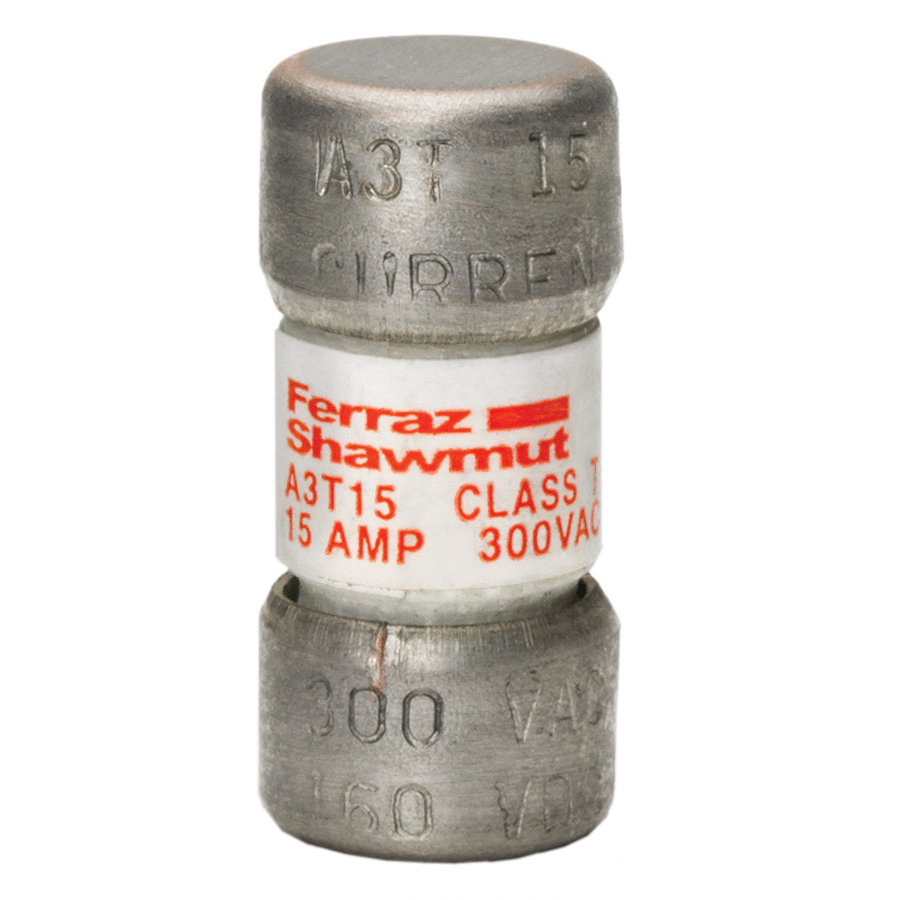

Product image for Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 15A Ferrule Amp-Trap®
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
To:
CC:

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 15A Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A3T15 | Electrozad South Part # 22285
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
15 A
Applications
For Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200/100 kA
Mounting Type
Clip
Rated Voltage AC
300 V
Rated Voltage DC
160 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Fast Acting

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001890063
Class
T
GTIN
30782001890064
Weight
0.012 lb

Dimensions

Diameter
0.41 in
Length
0.88 in
