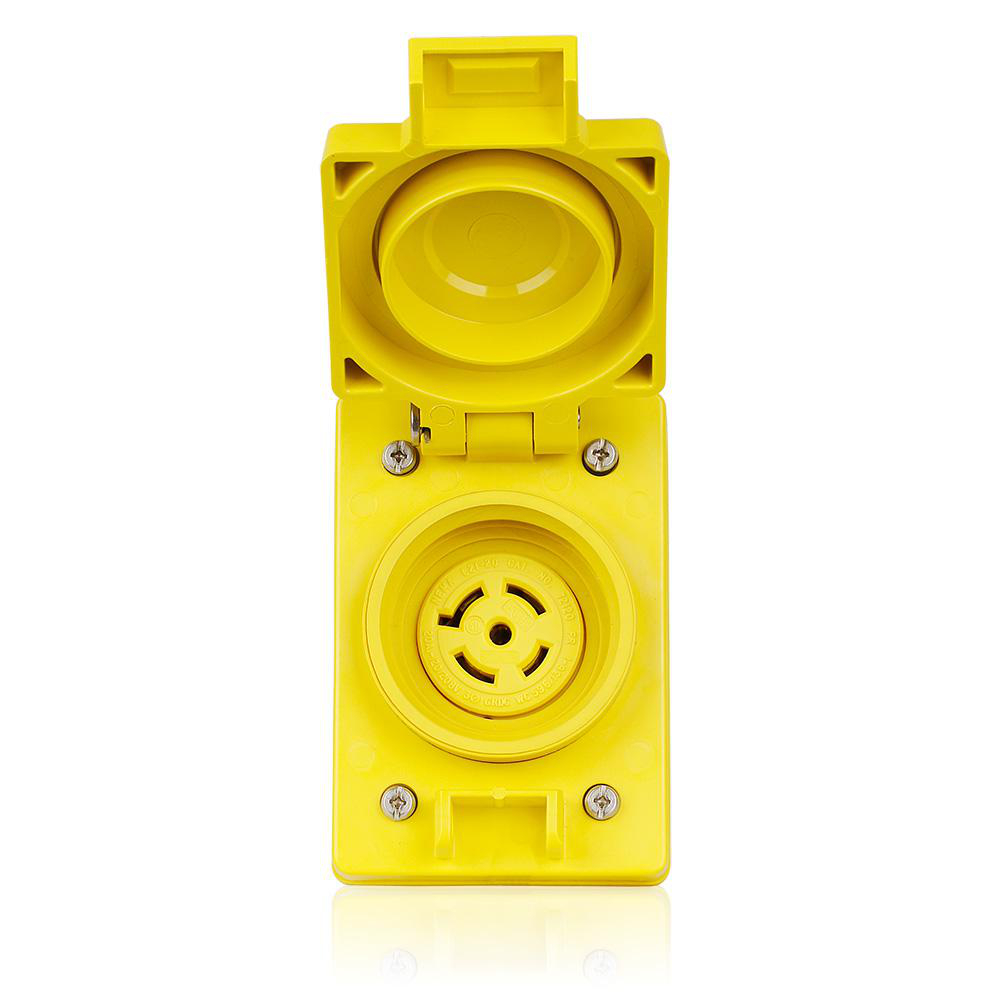

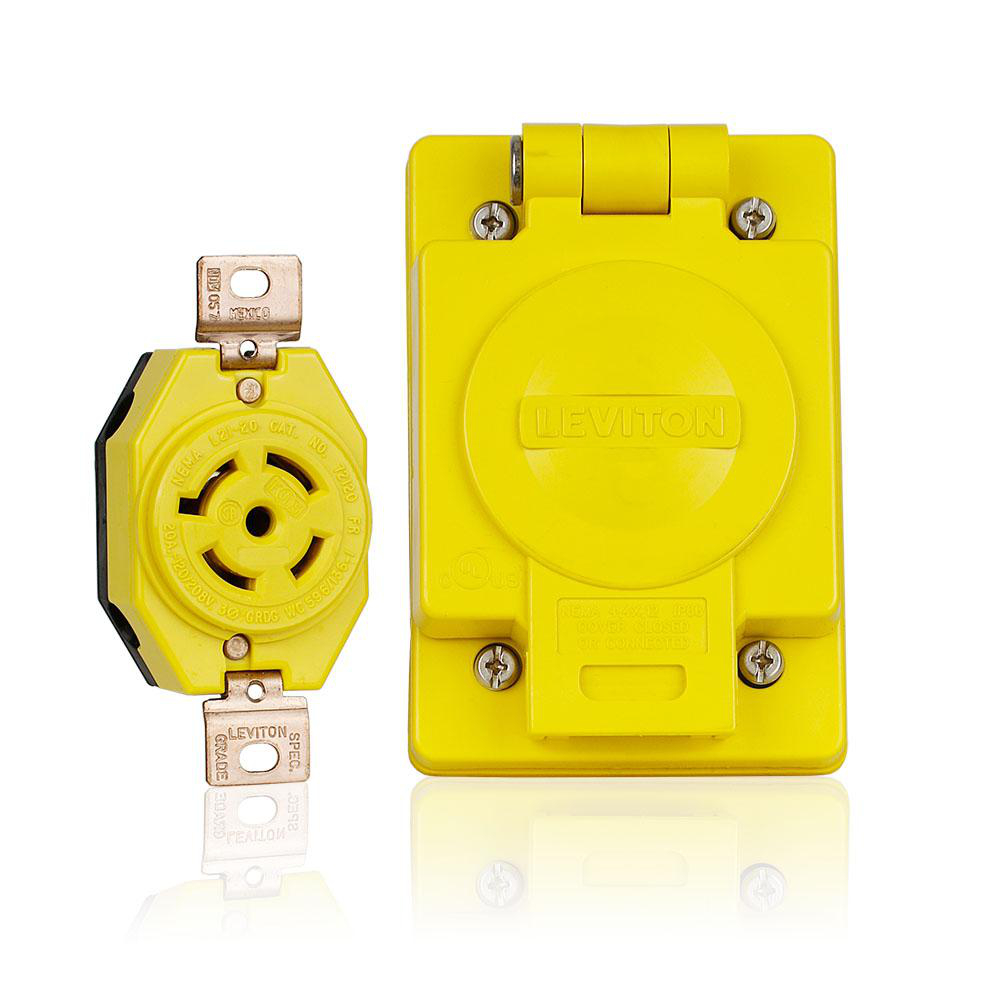

Receptacle locking flush 4P5W 120/208V 20AMP yellow

Manufacturer: Leviton Manufacturing | Catalog # 67W81 | Electrozad South Part # 221841
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Levitons Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices on the market. They meet IP67 and NEMA ratings for water ingress protection and offer many significant advantages over competitive brands.

Technical Information

Amperage
20 A
Applications
For Industrial
Base Material
Nylon,Nylon
Conductor Size
14-8 AWG
Device Type
Locking Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Industrial
Grounding
Grounding
Horsepower
2 hp
Mounting Type
Box
NEMA
L21-20R
Number of Phases
3
Number of Poles
4
Number of Wires
5
Operating Temperature
-40 degrees C
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire
Type
Single Locking Receptacle With Watertight Cover
Voltage
120 V
Wire Count
5
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477067604
Color
Yellow
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477067604

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
