Plug locking 3P 4W 250V 30AMP yellow

Manufacturer: Leviton Manufacturing | Catalog # 28W75 | Electrozad South Part # 221776

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Corrosion-resistant electroless nickel-coated brass blades, contacts, terminal screws and wiring clamps and stainless steel assembly screws make these devices ideal for use in wet and corrosive environments. EPTR rubber part provides outstanding resistance to wet and damp environments, extreme temperature variations, water, acids, alkalis, grease, oils and many automotive and industrial lubricants and solvents. Plug and connector husk is molded to a bondable nylon body, providing a device that withstands physical abuse. Interlocking tongue and groove construction seals out water, moisture and dirt when plugs are mated with connectors. Multi-point sealing system utilizes nut, strain relief washer and rubber bushing to form a watertight cord grip seal. Non-magnetic stainless steel fast-threading assembly screws won't interfere with sensitive equipment.

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
30 A
Applications
Industrial
Body Material
Santoprene TPV
Conductor Size
12 - 8 AWG
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
TPV
Mounting Type
Cable
NEMA

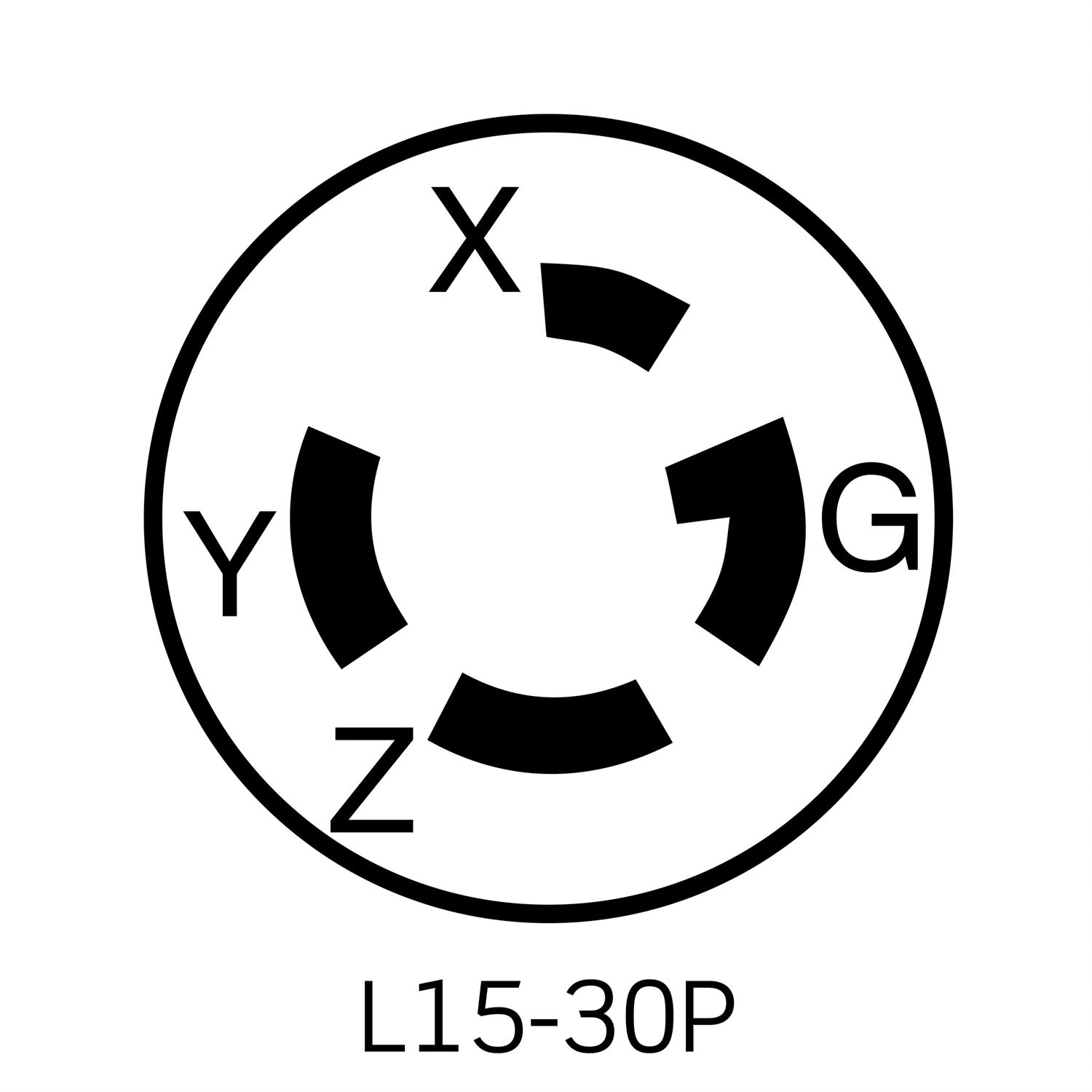

L15-30P
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel, Non-Magnetic
Size
2.28 Diameter X 3.61 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
#12-8 AWG
Type
Industrial Grade
Voltage
250 V
Wire Count
4
Wire Size
12 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477969021
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Watertight
GTIN
00078477969021

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
