Wetguard Watertight Locking Plug

Manufacturer: Leviton Manufacturing | Catalog # 26W83 | Electrozad South Part # 221752
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing
20 Amp, 347/600 Volt 3PY, NEMA L23-20P, 4P, 5W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300
Amperage
20 A
Applications
Industrial
Blade Type
Nickel-Plated Brass
Body Material
EPTR Rubber
Connection Type
Screw Terminal
Contact Material
Nickel-Plated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Plug
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA

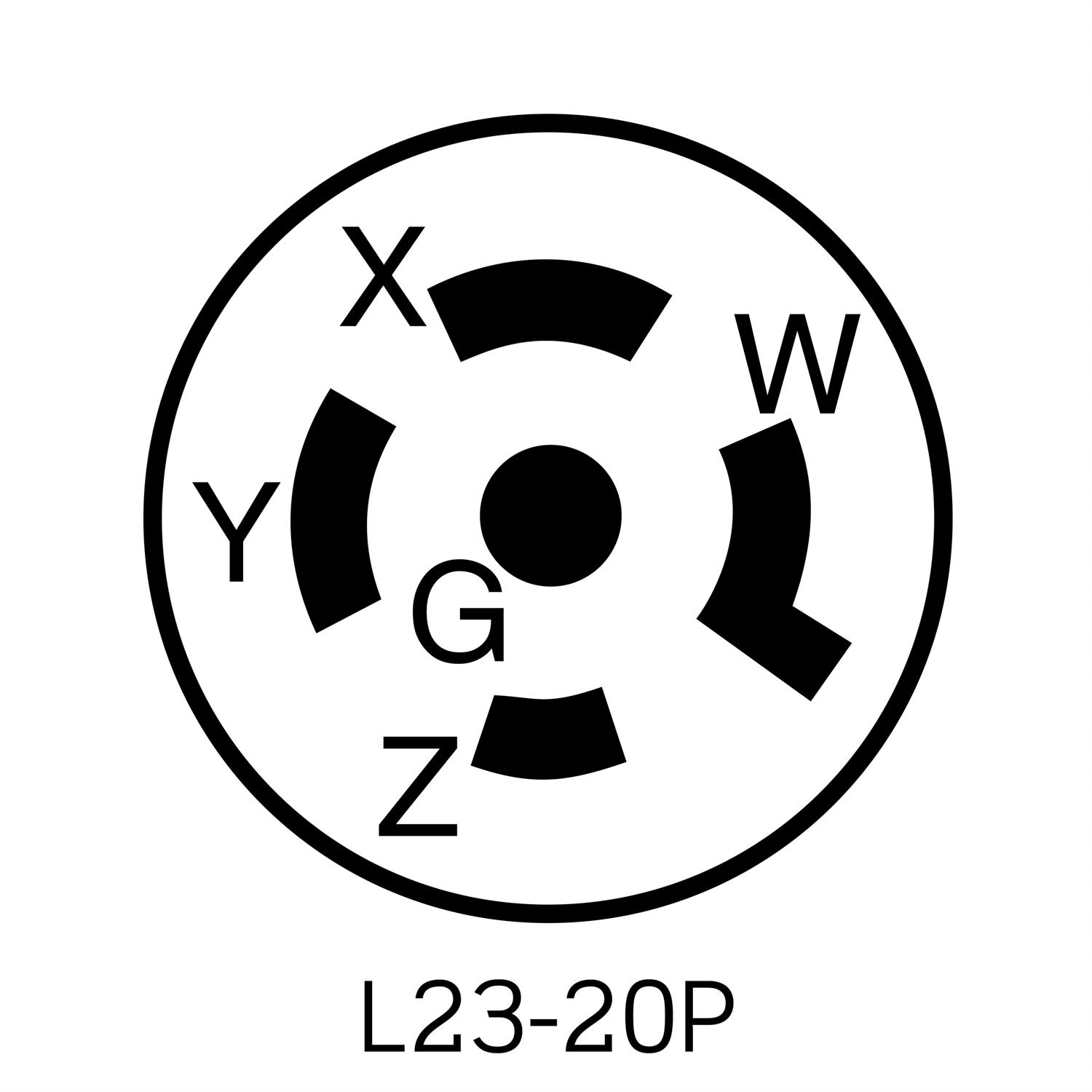

L23-20P
Number of Phases
3
Number of Poles
4
Number of Wires
5
Screw Type
Stainless Steel 300
Size
24 Diameter X 3.61 L IN
Standard
CSA,UL
TC Connection
Screw Terminal
Type
Locking,Watertight Plug
Voltage
347/600 V
Wire Count
5
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
DUSTGUARD WETGUARD

General Product Info

12-Digit UPC
078477968574
Color
Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 To 60) °C
GTIN
00078477968574

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
