Wetguard Watertight Locking Connector

Manufacturer: Leviton Manufacturing | Catalog # 25W04 | Electrozad South Part # 221731
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

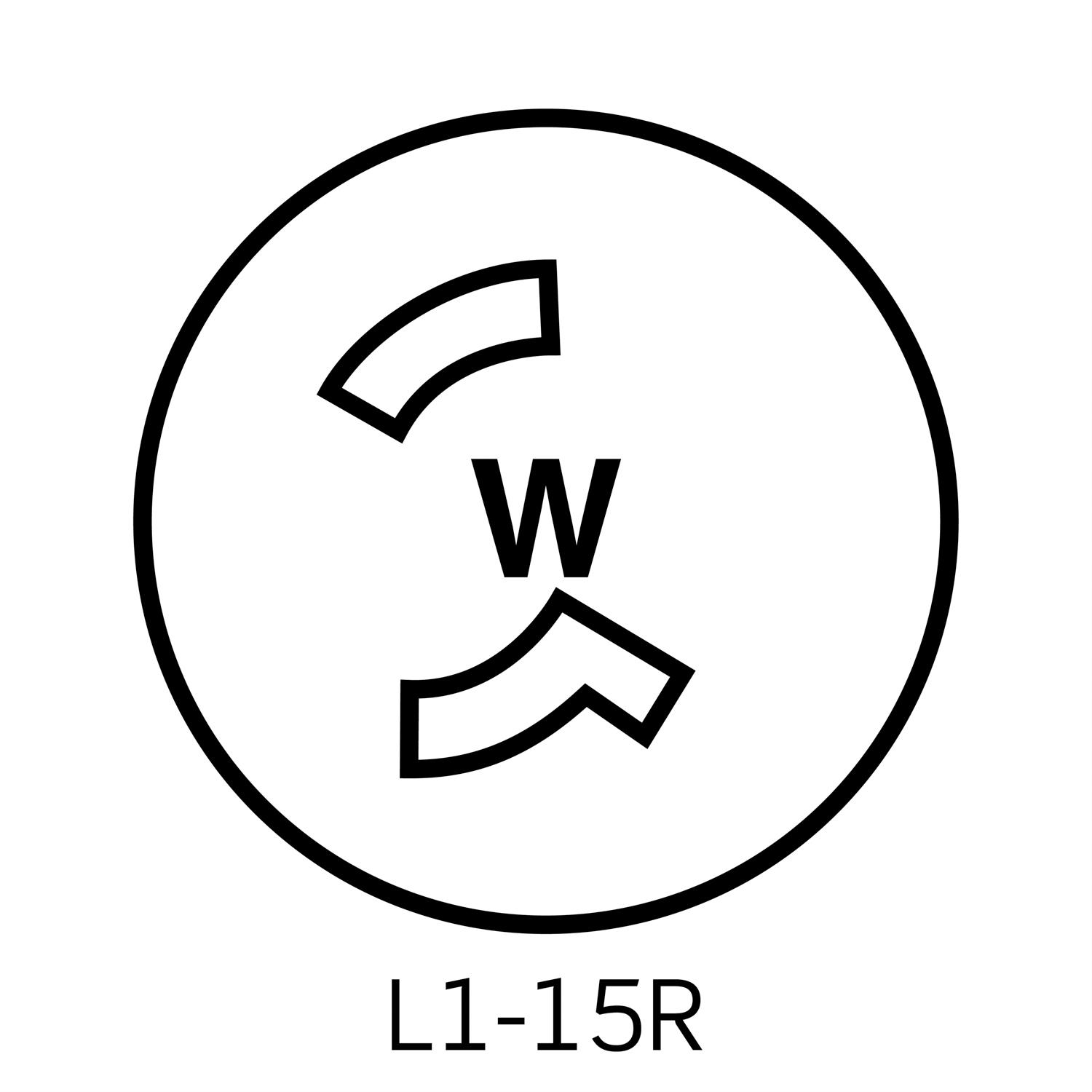

15 Amp, 125 Volt, NEMA L1-15R, 2P, 2W, Connector, Locking Blade, Industrial Grade, Non-Grounding, Wetguard - YELLOW

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
15 A
Applications
Industrial
Body Material
Santoprene TPV
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass
Cord Type
S,SJ,SJT,SJTO,SJTOW,SO,SOW,ST,SVT
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Non-Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
2
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel, Non-Magnetic
Size
1.78 Diameter X 4.22 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rise
200 %
Terminal Size
18-10 AWG
Type
Locking,Watertight Connector
Voltage
125 V
Wire Count
2
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
DUSTGUARD WETGUARD

General Product Info

12-Digit UPC
078477474242
Color
Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 To 60) °C
GTIN
00078477474242

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
