Wetguard Watertight Locking Plug

Manufacturer: Leviton Manufacturing | Catalog # 24W49 | Electrozad South Part # 221730
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing

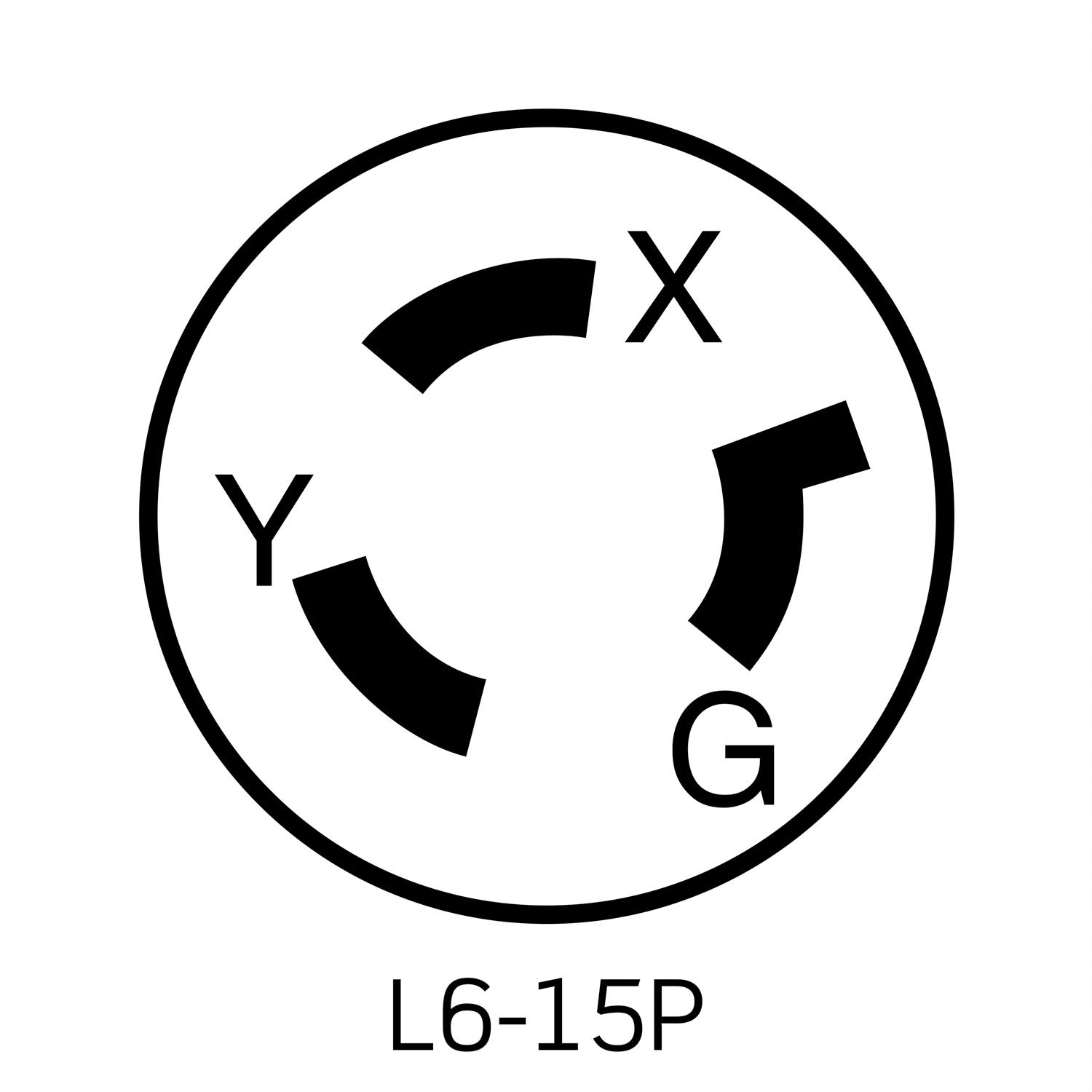

15 Amp, 250 Volt, NEMA L6-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
15 A
Applications
Industrial
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass,Nickel-Plated Brass
Cord Type
S,SO,SOW,ST
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel 300,Stainless Steel, Non-Magnetic
Size
1.50 Diameter X 2.71 L IN
Standard
ANSI C-73,CSA,UL
TC Connection
Screw Terminal
Temperature Rise
200 %
Terminal Size
18-10 AWG
Type
Locking,Watertight Plug
Voltage
250 V
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
DUSTGUARD WETGUARD

General Product Info

12-Digit UPC
078477969472
Color
Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 To 60) °C
GTIN
00078477969472

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
