Plug locking ind grade thrmplst 2P3W 125V ylw

Manufacturer: Leviton Manufacturing | Catalog # 24W47 | Electrozad South Part # 221729
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

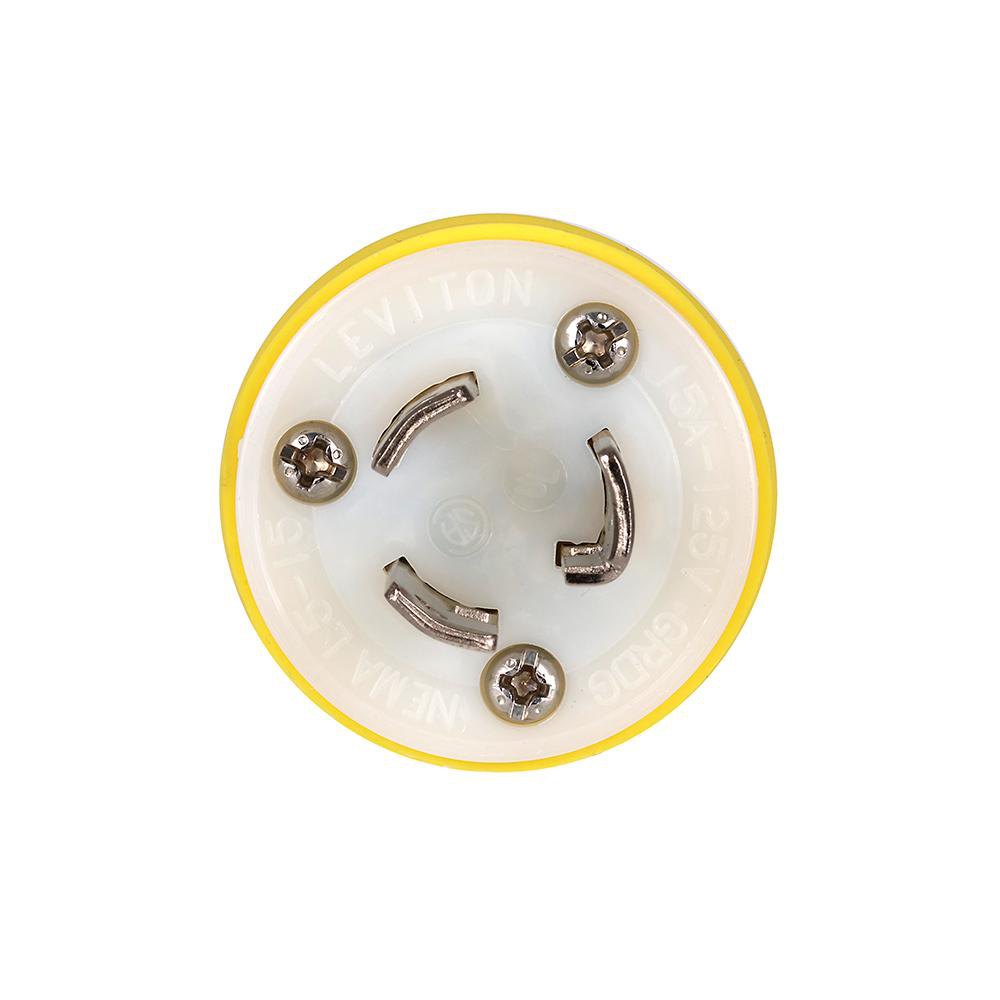

Industrial grade locking plug made of Santoprene TPV. Electroless nickel-coated brass blades/contacts and stainless steel, non-magnetic assembly screws. Leviton's Wetguard line of industrial watertight wiring devices are the most versatile, well-engineered watertight devices.

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
15 A
Applications
For Industrial use
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass,Nickel-Plated Brass
Cord Type
S, ST, SO, SOW
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
TPV
Mounting Type
Cable

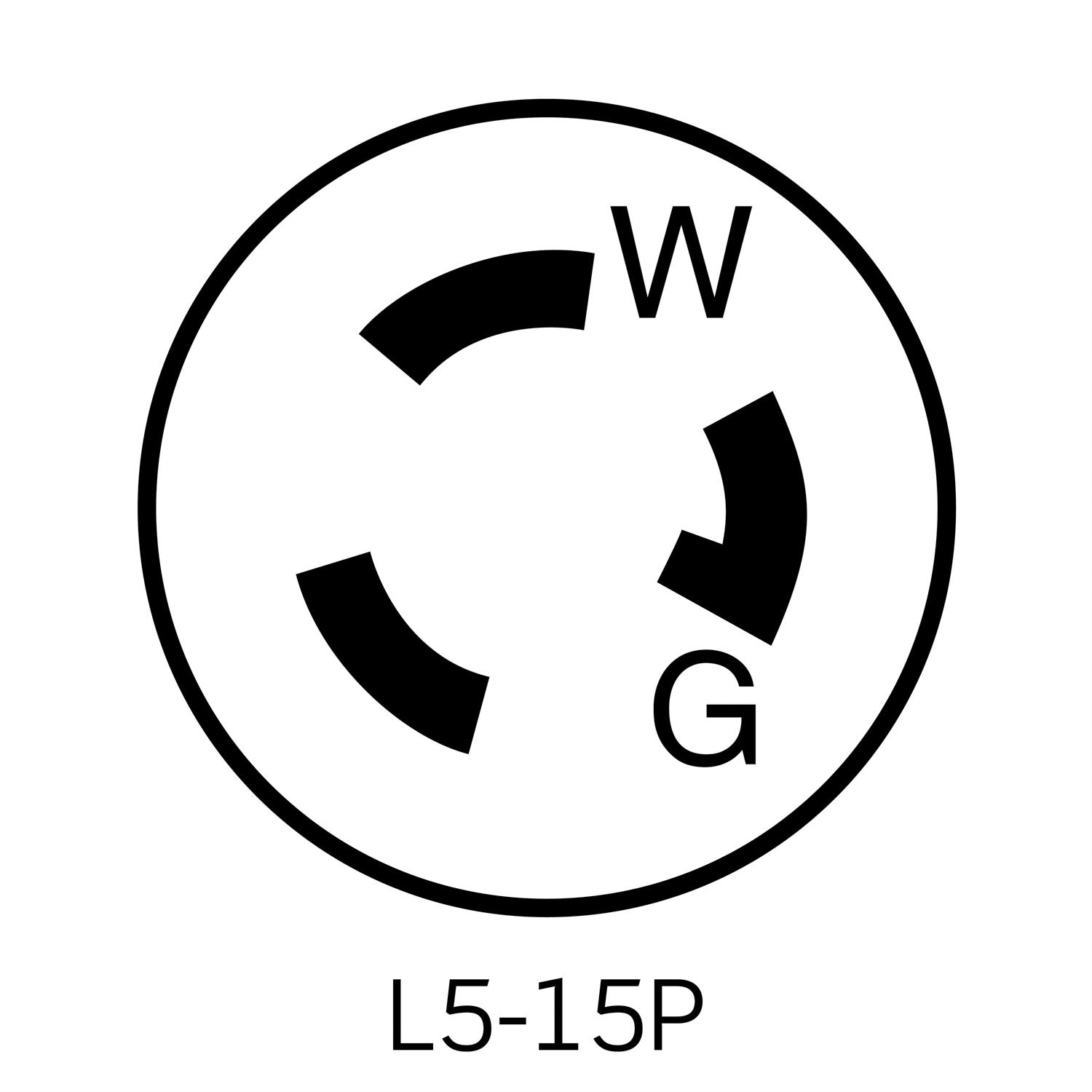

NEMA
L5-15P
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel 300,Stainless Steel, Non-Magnetic
Size
1.50 Diameter X 2.71 L IN
Standard
UL
TC Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
12 lb-in
Type
Locking,Watertight Plug
Voltage
125 V
Wire Count
3
Wire Size
18 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477848333
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Watertight
GTIN
00078477848333

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
