Wetguard Watertight Locking Connector

Manufacturer: Leviton Manufacturing | Catalog # 23W07 | Electrozad South Part # 221724
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

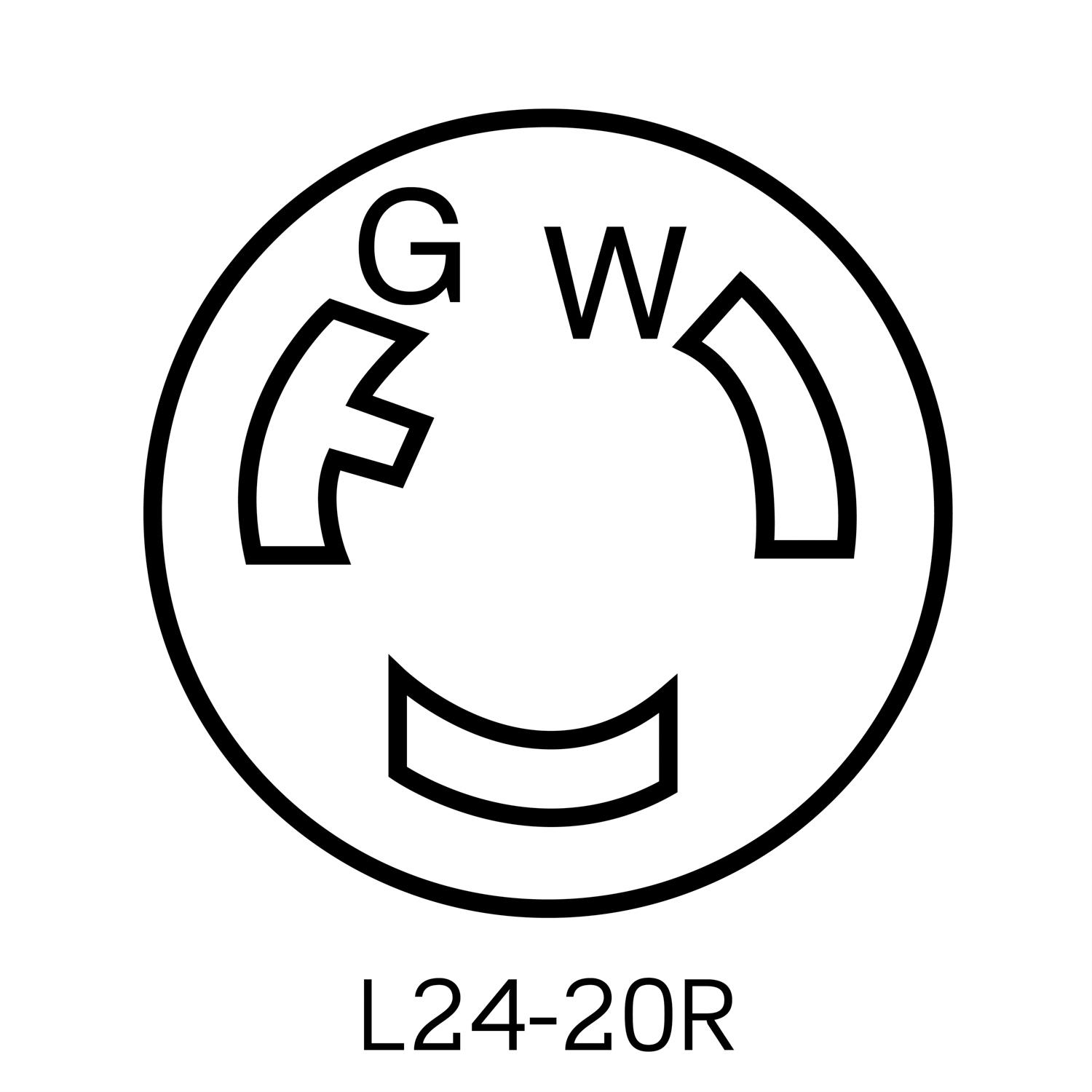

20 Amp, 347 Volt, NEMA L-24-20, 2P, 3W, Connector, Locking Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Amperage
20 A
Applications
Industrial
Body Material
Santoprene TPV
Cord Type
SO;ST;STO;SJ;SJO;SJT;SOO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
TPV
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
2.50 Diameter X 5.52 L IN
TC Connection
Screw Terminal
Temperature Rise
200 %
Type
Watertight Connector;Locking
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
DUSTGUARD WETGUARD

General Product Info

12-Digit UPC
078477474198
Color
Yellow
Environmental Conditions
-40 to 60 C
GTIN
00078477474198

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
