Wetguard Watertight Locking Plug | Electrozad South
Product image for Wetguard Watertight Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 3
To:
CC:

Wetguard Watertight Locking Plug

Manufacturer: Leviton Manufacturing | Catalog # 22W07 | Electrozad South Part # 221723
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

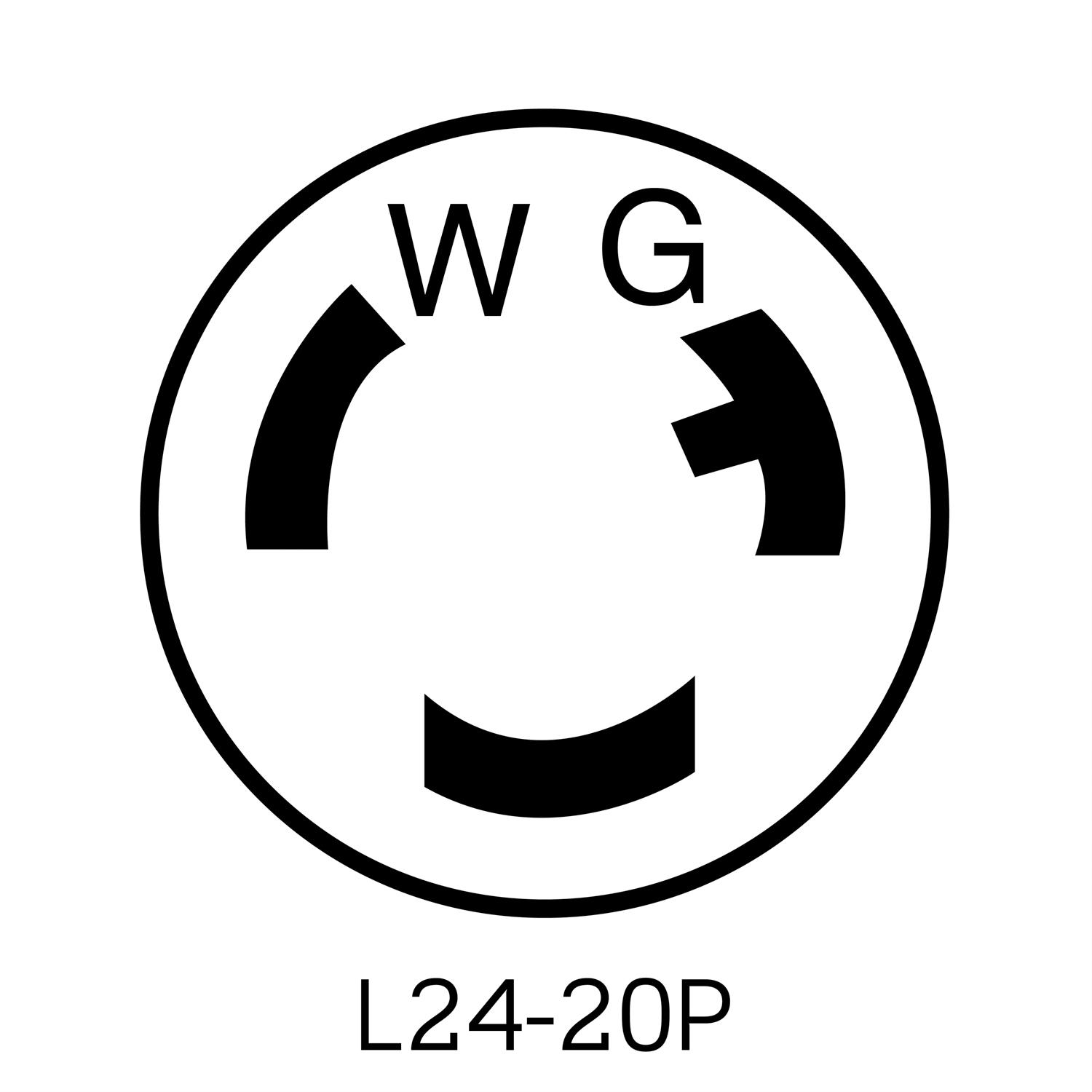

20 Amp, 347 Volt, NEMA L24-20, 2P, 3W, Plug, Locking Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
20 A
Applications
Industrial
Body Material
Santoprene TPV
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass
Cord Type
SJ,SJO,SJT,SO,SOO,ST,STO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
24 Diameter X 3.61 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rise
200 %
Type
Locking,Watertight Plug
Voltage
347 V
Wire Count
3
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Dustguard / Wetguard

General Product Info

12-Digit UPC
078477474181
Color
Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 To 60) °C
GTIN
00078477474181

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
