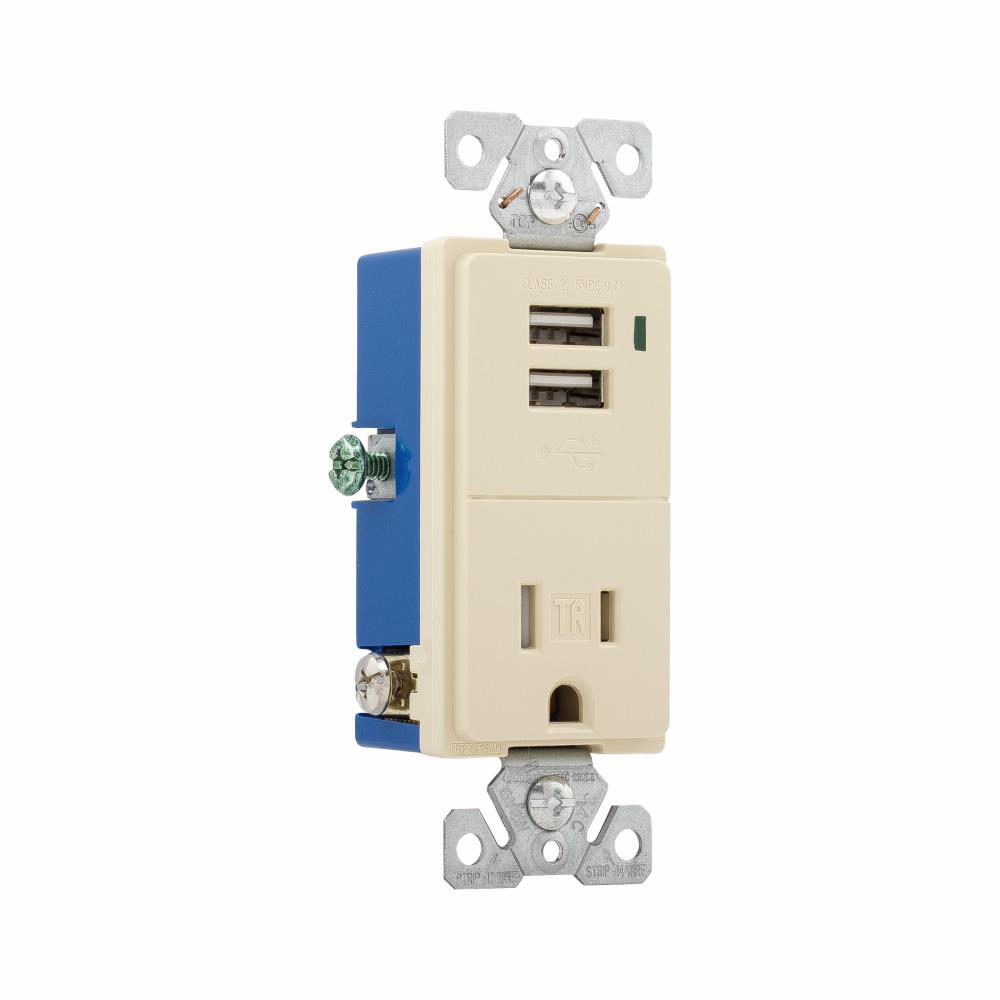

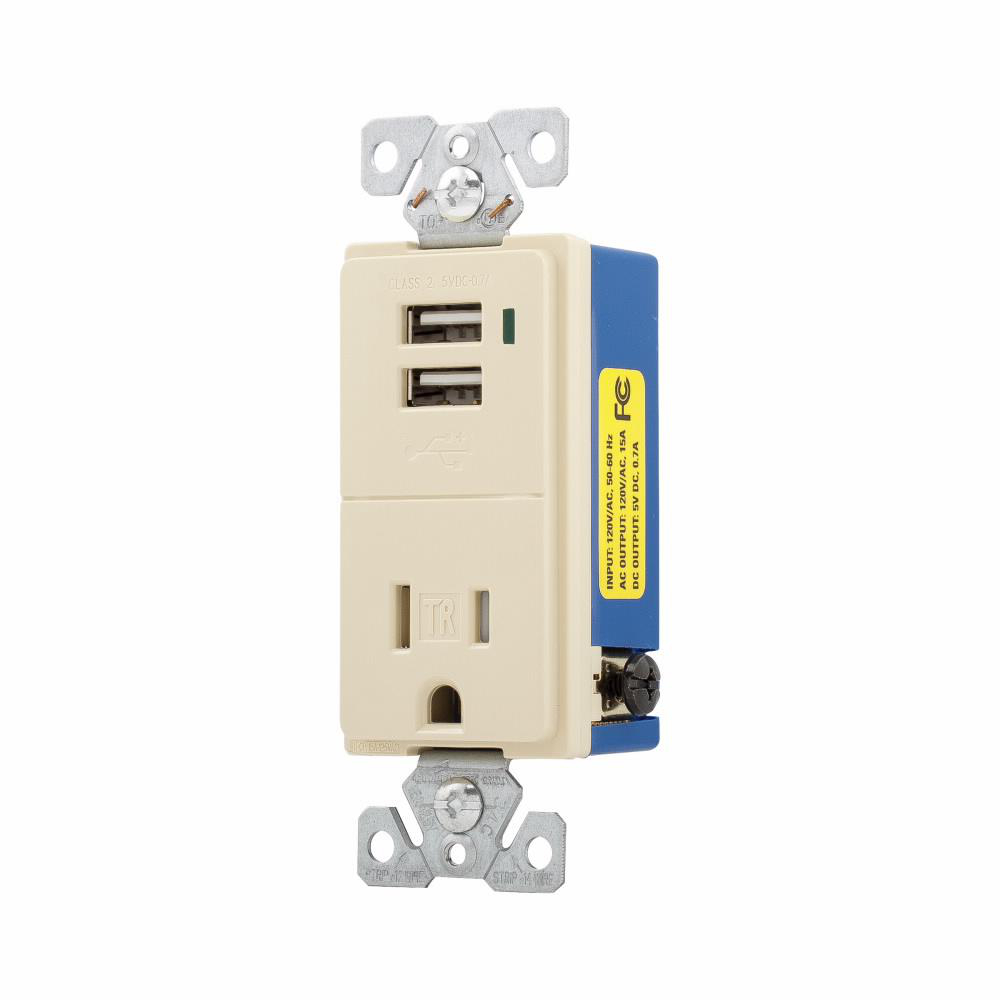

COMBO 2 PORT USB RECEPTACLE 15A 125V IV

Manufacturer: Arrow Hart | Catalog # TR7740V-BOX | Electrozad South Part # 221203
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet
Eaton combination USB charger with receptacle, Tamper resistant, 15A, Flush mount, 125 Vac, 5 Vdc, Wire leads, Ivory, Brass, 5-15R, Two-pole, three-wire, grounding, Decorator, Thermoplastic

Technical Information

Amperage
15 A
Connection Type
Screw
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Temperature Rating
-20 to 60 degrees C
Voltage
125 V
Wire Size
14-12 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
032664729249
Color
Ivory
GTIN
00032664729249
Weight
.24 lb

Dimensions

Height
1.88 in
Length
4.5 in
Width
1.75 in
