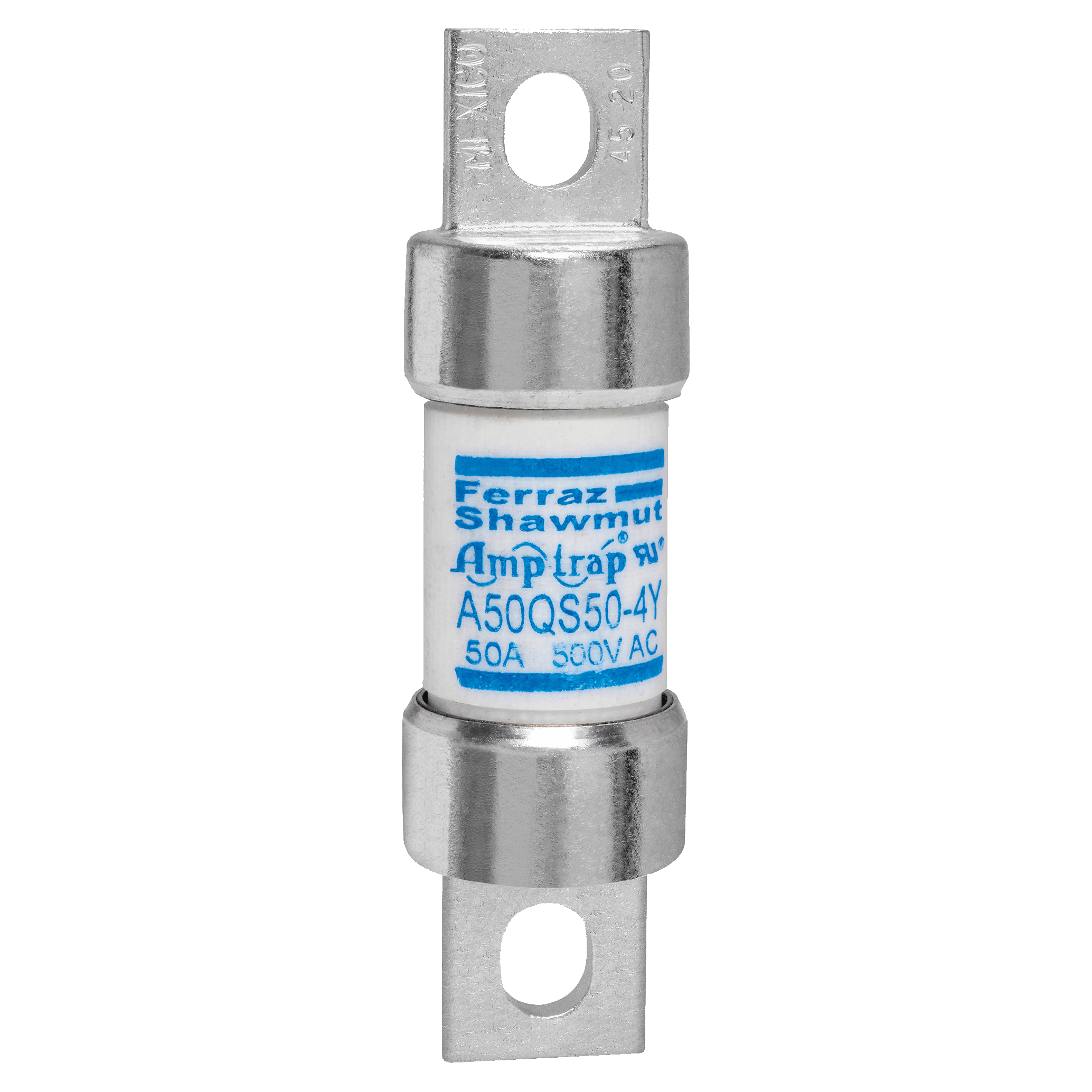

High Speed Fuse Amp-Trap® A50QS 500VAC 500VDC 50A Blade 4Y

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50QS50-4Y | Electrozad South Part # 219842
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features ... lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today...s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Technical Information

Amperage
50 A
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
500 V
Rated Voltage DC
500 V
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Voltage
500 V

Packaging

Package Qty
10

General Product Info

12-Digit UPC
782001141196
GTIN
30782001141197
Weight
0.25 lb

Dimensions

Diameter
0.82 in
Length
3.03 in

Certifications & Compliance

Country of Origin
Mexico
