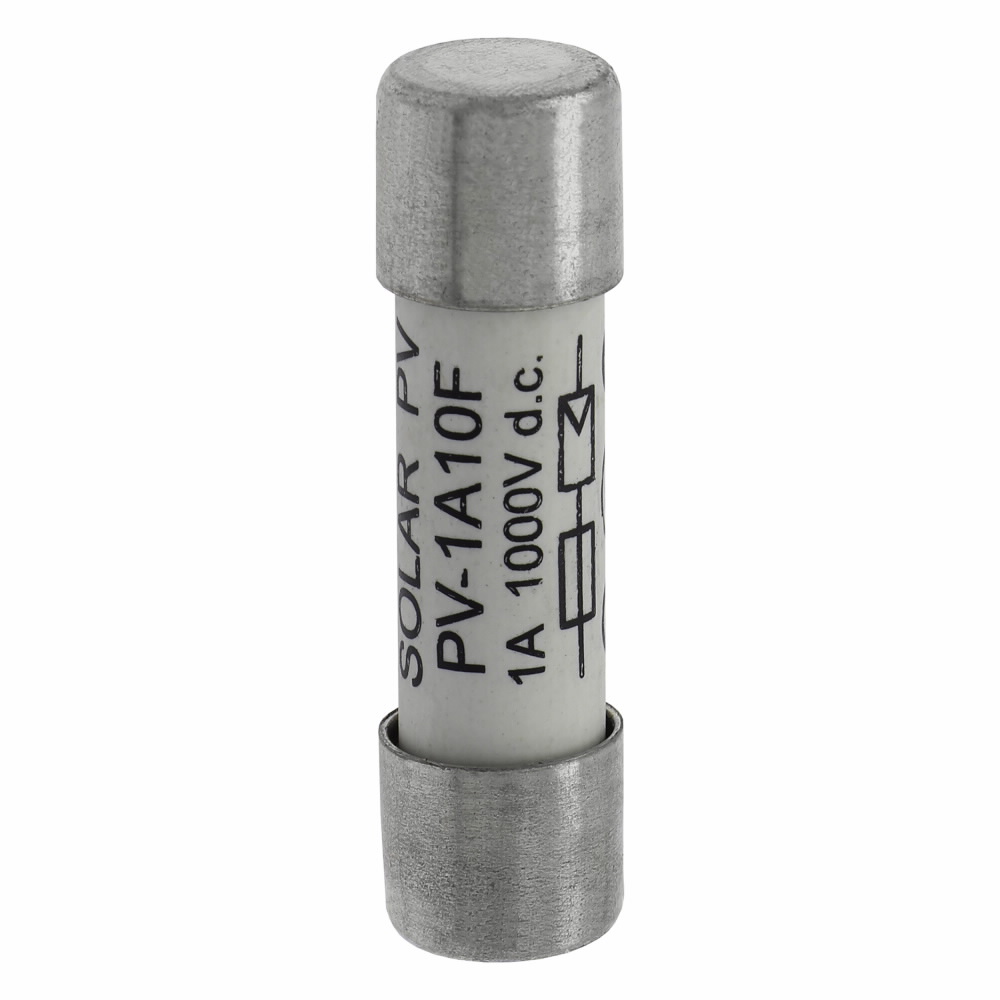

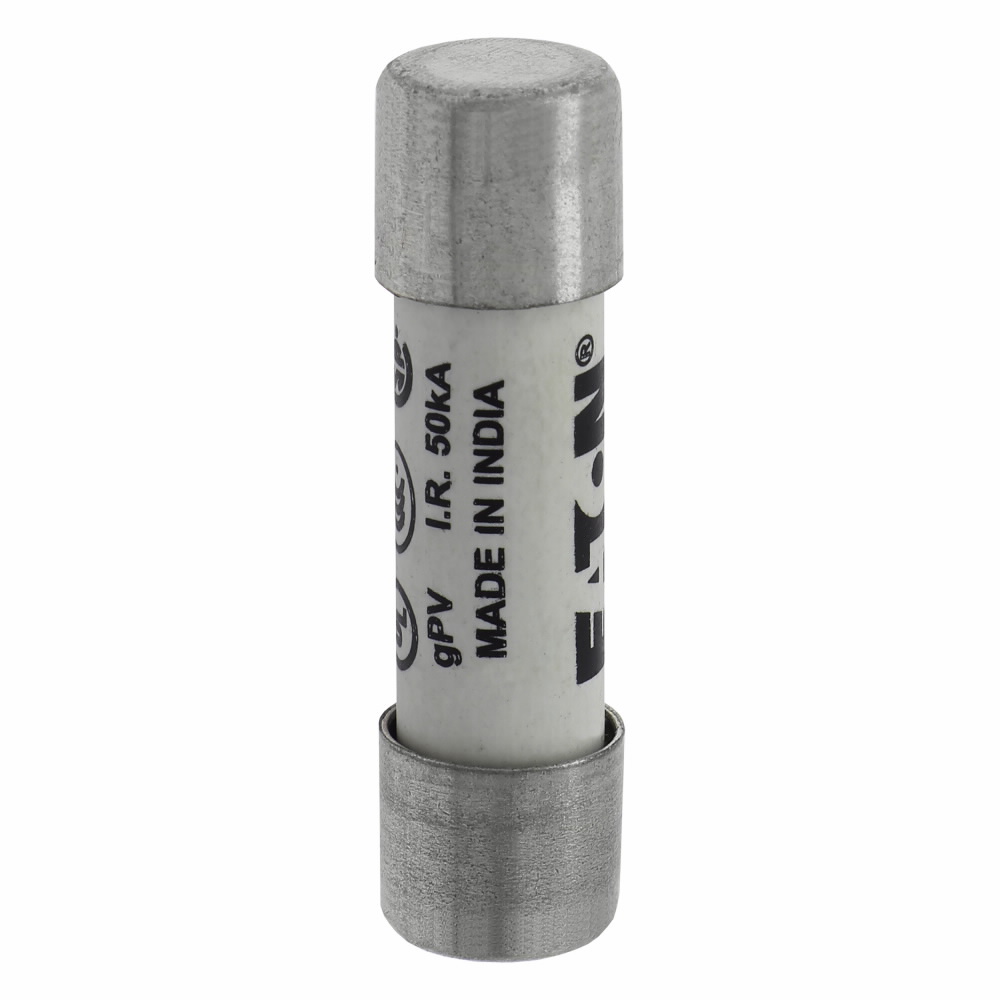

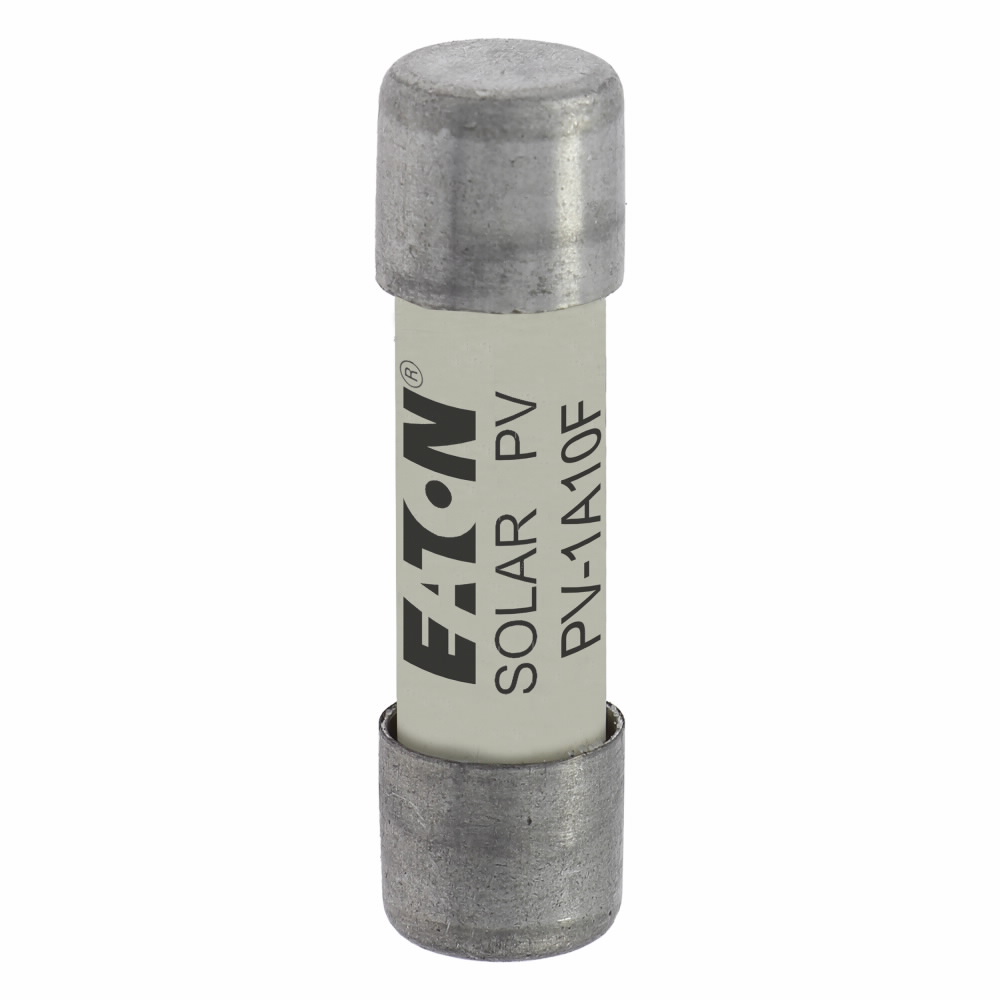

1AMP 1000V DC SOLAR FERRULE 10 X 38MM

Manufacturer: Bussman Cooper Fuses | Catalog # PV-1A10F | Electrozad South Part # 218779
$58.54 /ea
pc
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 1A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end

Technical Information

Amperage
1 A
Applications
Generation - Renewable Energy - Alternative EnergyGeneration - Renewable Energy - SolarGeneration - Renewable Energy - Storage Systems
Body Material
Ceramic
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
50 kA
Material
Ceramic
Size
13/32 In Diameter X 1-1/2 In Length
Standard
CE,CSA,IEC 60269,UL 2579
TC Connection
Ferrule end x ferrule end
Type
Fuse
Voltage
1000 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712243629
Class
Class GPV
Color
Yellow
GTIN
00051712243629
Weight
9.7 g

Dimensions

Diameter
10 mm
Height
23 mm
Length
44 mm
