BISR2

Manufacturer: Burndy | Catalog # BISR-2 | Electrozad South Part # 218093
$54.01 /ea
pc
Log in or register to view your price, purchase history, and more!
66 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Technical Drawing

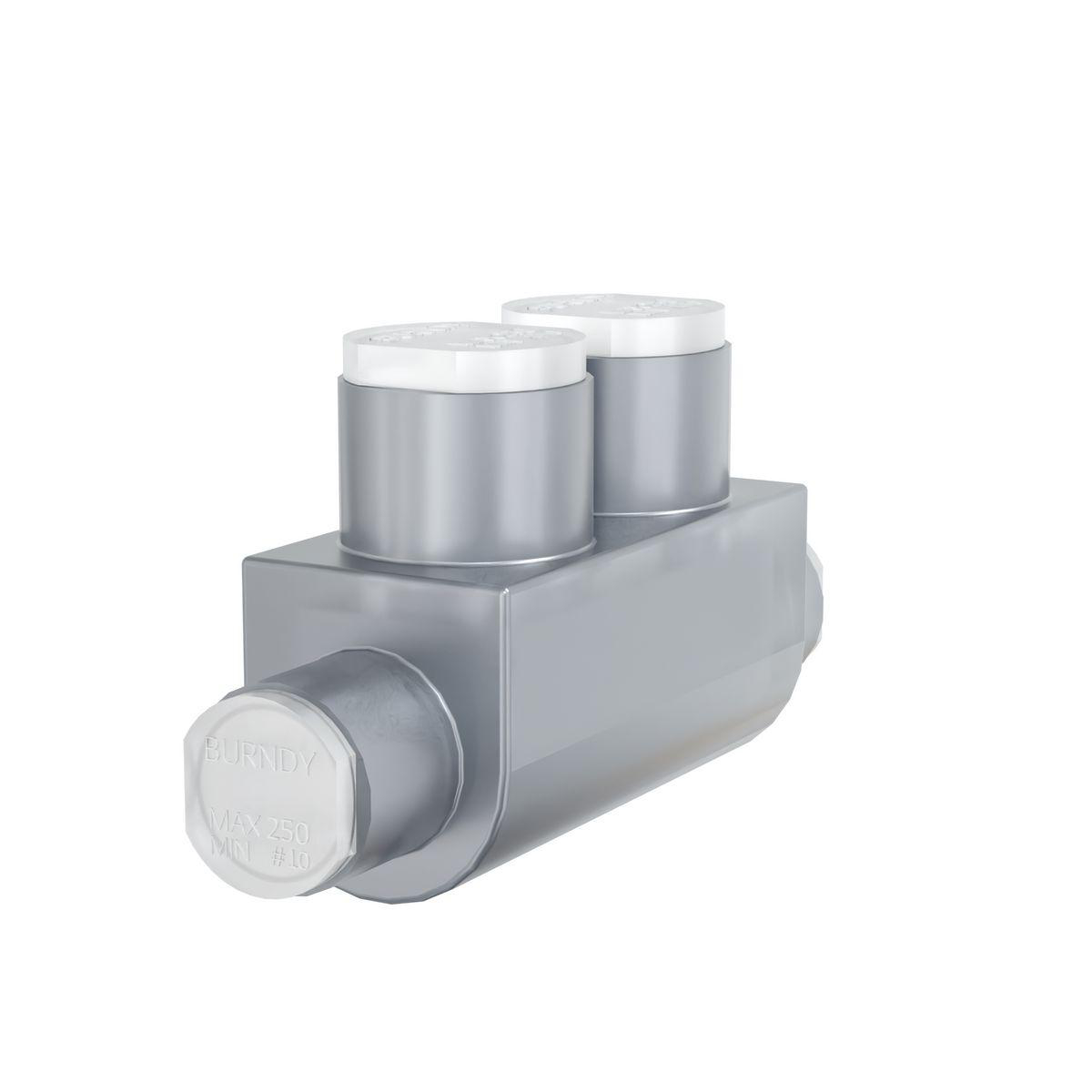

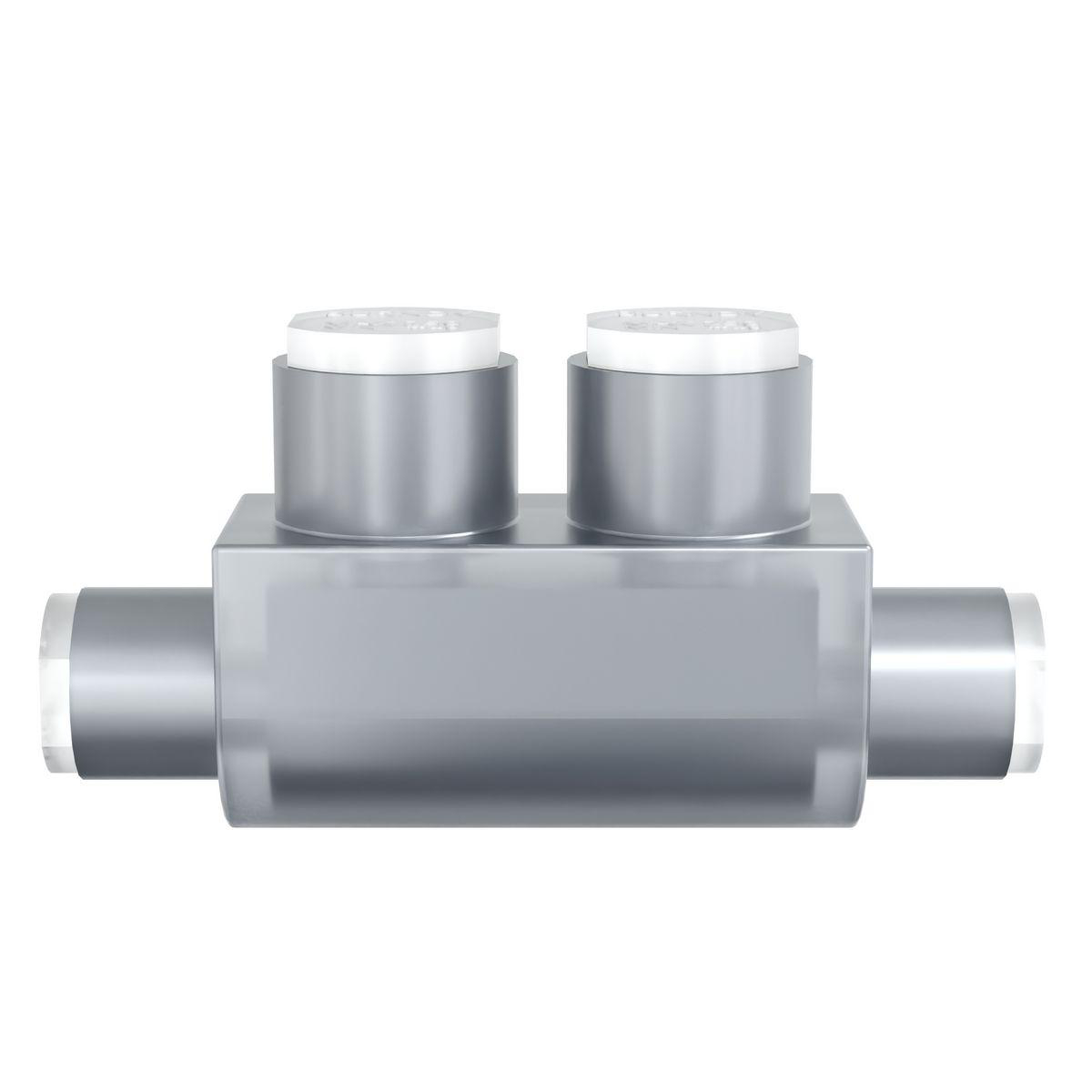

In-Line Splice Reducer, Clear Insulation, #14-2 AWG Code Conductor, Dual Rated AL9CU, Oxide inhibitor pre-installed

Technical Information

Applications
Indoor use
Conductor Size
14-2 AWG
Connection Type
Screw
Direct Burial?
No
Insulation Type
Plastisol
Material
Al6061-T6 Aluminum
Number of Ports
2
Number of Screws
2
Plated?
No
Plating Type
Unplated
Port Number
2
Size
2.38 IN Length X 0.75 IN Width X 1.22 IN Height
Standard
CSA,E2186,UL
Stud Size
5/32 in
Temperature Rating
90 degrees C
Type
BISR, In-Line
Voltage
600 V

Manufacturer Information

Brand
Burndy
Sub Brand
Unitap™

General Product Info

12-Digit UPC
781810225196
GTIN
00781810225196

Dimensions

Height
1.22 in
Length
2.38 in
Overall Length
2.38 in
Width
19 mm

Certifications & Compliance

Country of Origin
USA
CSA
Yes
