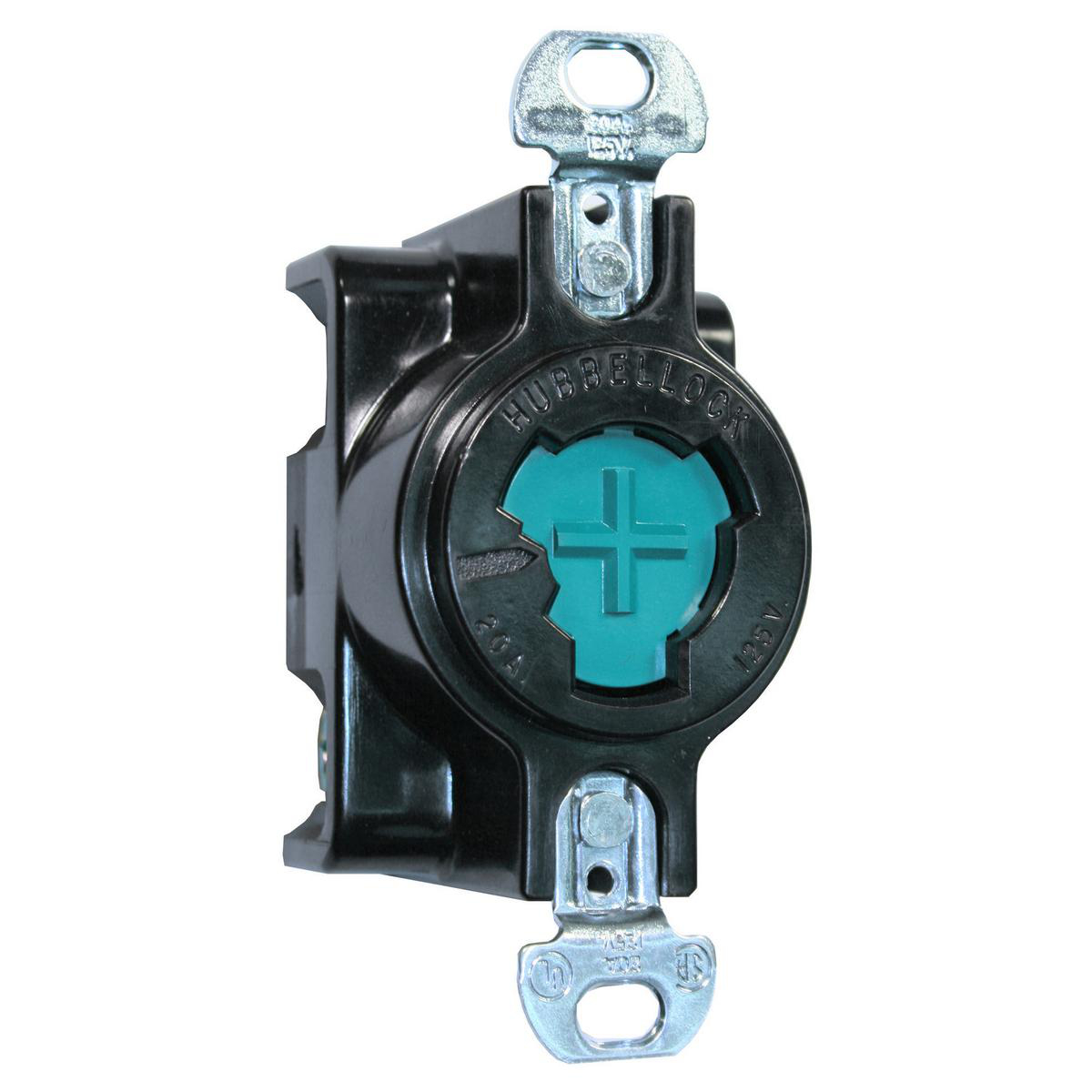

Receptacle single 20A 125V black

Manufacturer: Hubbell Wiring Devices | Catalog # HBL23030 | Electrozad South Part # 215337
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbellock® Single receptacle with black phenolic interior. 2-pole 3-wire grounding. Spring loaded safety shutter contains arcing when mating or un-mating devices under load. Spring loaded safety shutter automatically ejects the plug eliminating contact teasing. Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability. Thermoset molded housing provides maximum heat resistance.

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial
Conductor Size
12 AWG
Current
20 A
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1
Number of Poles
2
Number of Wires
3
Size
Standard
TC Connection
Screw Terminal
Type
Single
Voltage
125 V
Wattage
2500 W
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017549
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00783585017549
Product UPC
78358501754
Weight
0.3 lb

Dimensions

Height
1.65 in
Length
3.28 in
Width
1.62 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Thermoset molded housing provides maximum heat resistance
