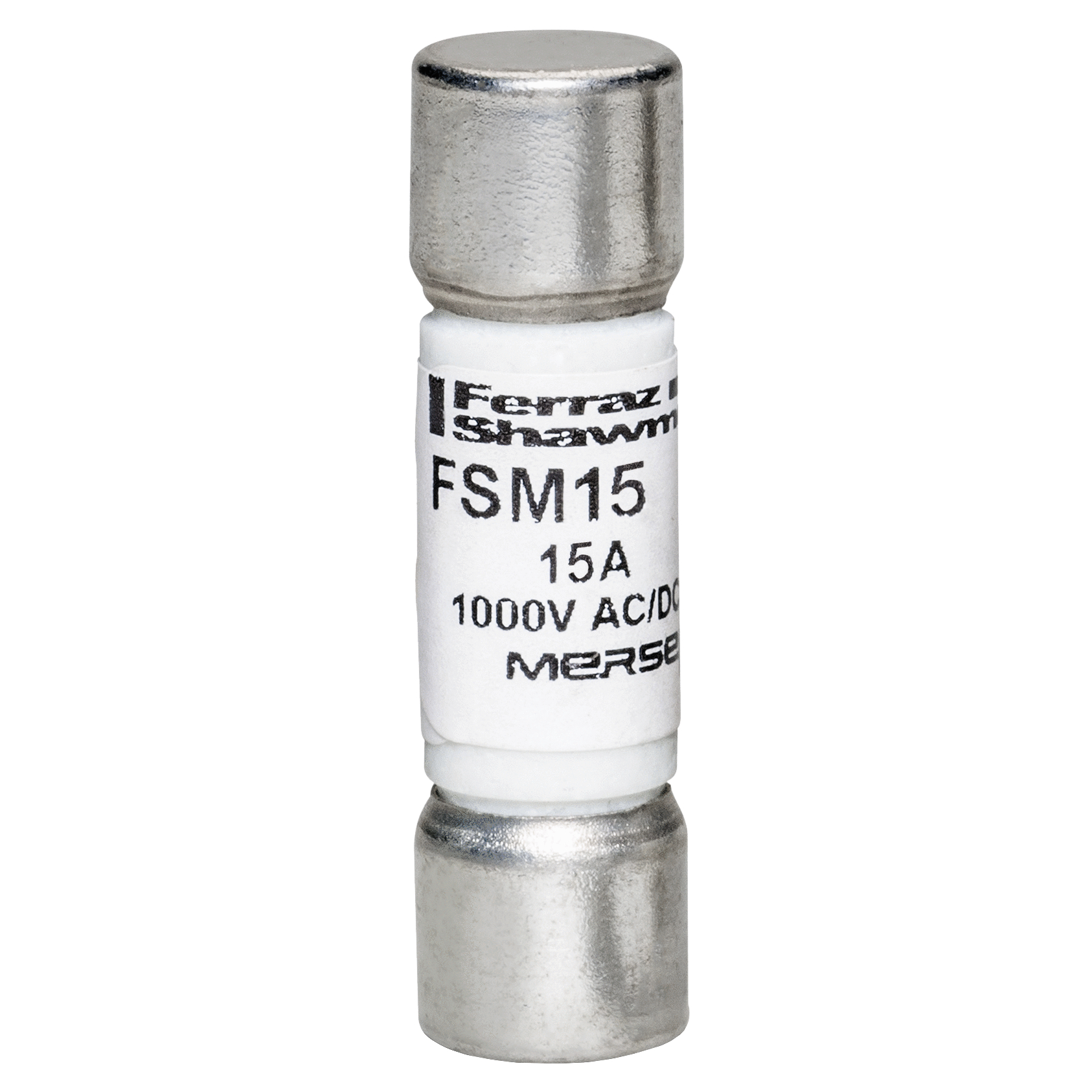

Product image for Multi-meter fuse 10x35/10x38 FSM 1000VAC 1000VDC 15A Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Multi-meter fuse 10x35/10x38 FSM 1000VAC 1000VDC 15A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # FSM15 | Electrozad South Part # 214916
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Mersen has developed a true 1000VAC/DC fuse designed to protect both analog and digital multi-meters. These fuses cover all the industry's multi-meter requirements in three easy to use amperage ratings. Good for 1000 volts AC and DC, the FSM line of Ferraz Shawmut fuses are designed for the power electronics metering and controls market.

Technical Information

Applications
For the protection of multi-meters
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class M
Insulation Material
GMG
Interrupt Rating
20 kA
Mounting Type
Clip
Rated Voltage AC
1000 V
Rated Voltage DC
1000 V
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Fast Acting, Current Limiting, Low Voltage, Midget

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001326678
Construction
Glass Melamine
GTIN
30782001326679
Used With
Multi-Meters
Weight
0.016 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
