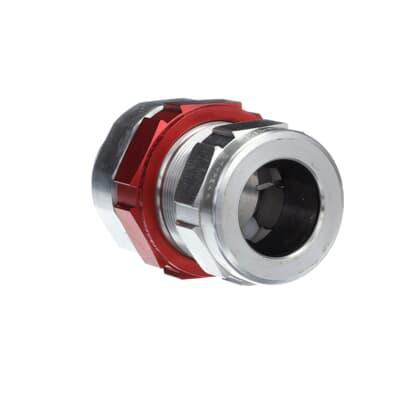

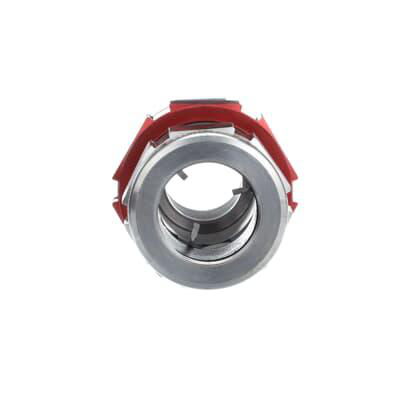

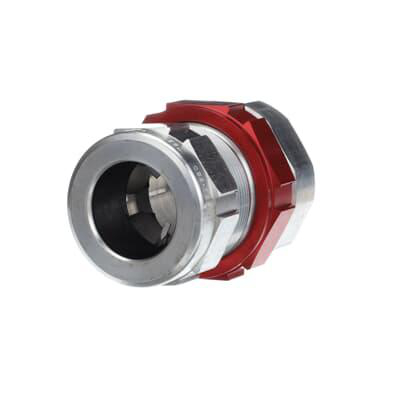

Product image for Connector cable str alu 1-1/2in 1.5 to 1.625in
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Connector cable str alu 1-1/2in 1.5 to 1.625in

Manufacturer: ABB | Thomas & Betts | Catalog # STX150-550 | Electrozad South Part # 212736
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing
STAR TECK XP® cable fittings are designed to accommodate a broad range of cables, thereby minimizing the possibility of mismatched cables and fittings in the field. Highly efficient, highly visible union features twist-on action for easy connection and disconnection; red color assures high visibility, easy recognition. Union also serves as a ...puller... during disassembly. Exclusive power grip provides grip that...s high upon cable armour not on first convolution so precise cable preparation is not critical. Non-magnetic stainless steel Power Grip grounding ring assures 360.. long-term dependable grounding. Also provides phenomenal tensile pull out resistance.

Technical Information

Applications
For Hazardous Locations
Material
Aluminum
Size
1-1/2 in
Standard
CSA 23086,UL E82038
Thread Type
NPT
Trade Size
1-1/2 in
Type
Straight, Jacketed

Manufacturer Information

Brand
ABB
Sub Brand
Star Teck® XP®

General Product Info

12-Digit UPC
786210904689
Color
Red,Silver
Finish
Silver and Red
GTIN
05415022460308
Overview
  • A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
  • Working with engineers from the petrochemical, oil and gas industries, Thomas & Betts then introduced the STAR TECK XP fitting.
  • With an easy-to-fill, integral sealing chamber and a disconnectable design requiring minimal cable preparation, this fitting became the benchmark for ease of installation in hazardous environments.
