Clamp U-bolt copper 4-2/0 E-Z-GROUND

Manufacturer: ABB | Thomas & Betts | Catalog # GUV11821 | Electrozad South Part # 21162
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page

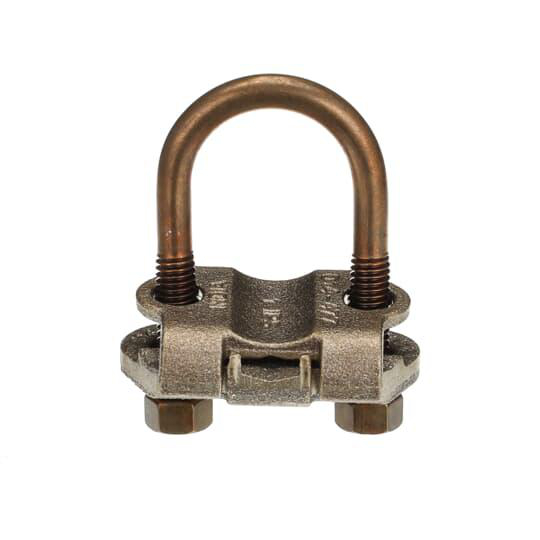

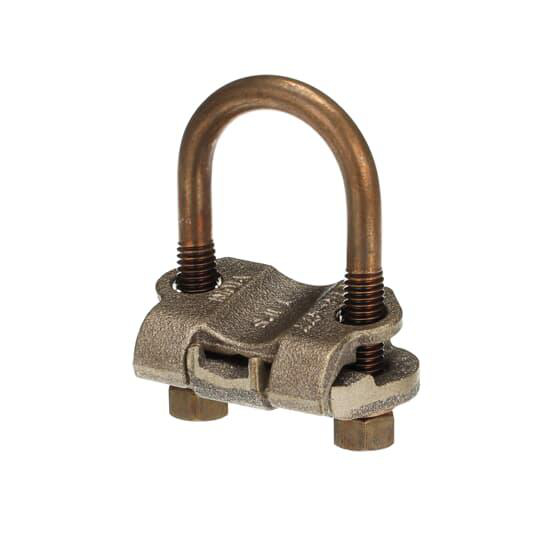

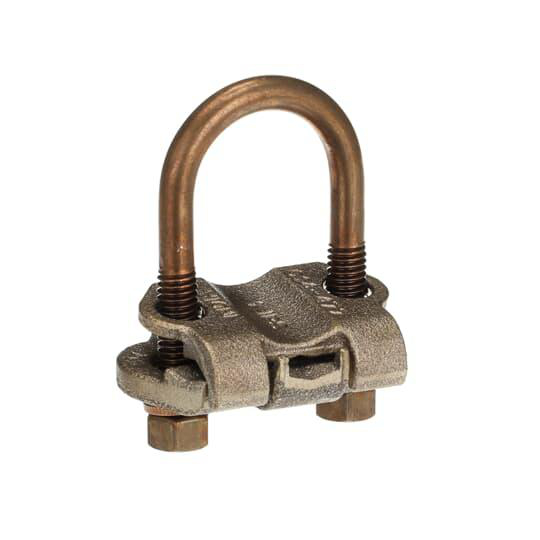

E-Z-GROUND® type GUV U-bolt clamp. Listed for direct burial in earth or concrete. For connecting copper or copper clad steel grounding conductor to ground rod or pipe or rebar. Excellent for connecting multiple electrodes with a single cable as in substation grounding. GUV body components are cast or forged from copper allow and U-bolts are stainless steel. Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area.

Technical Information

Applications
Ground Rod
Conductor Material
Copper
Conductor Size
4 - 2/0 AWG
Material
Copper
Standard
CSA 12798,UL E3060
Type
U-Bolt

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786803576
GTIN
00783786803576

Dimensions

Length
3-15/16 in
