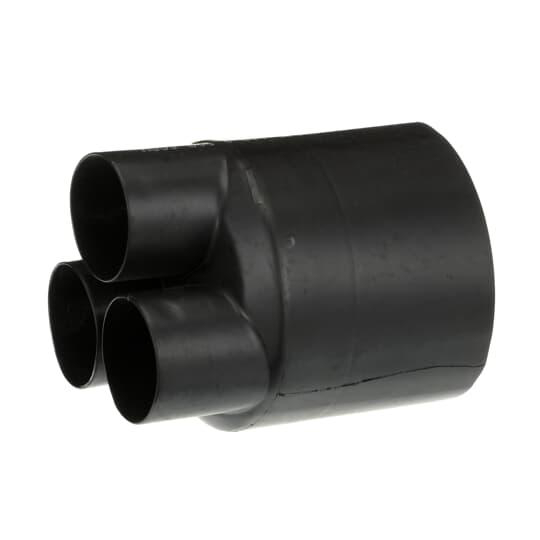

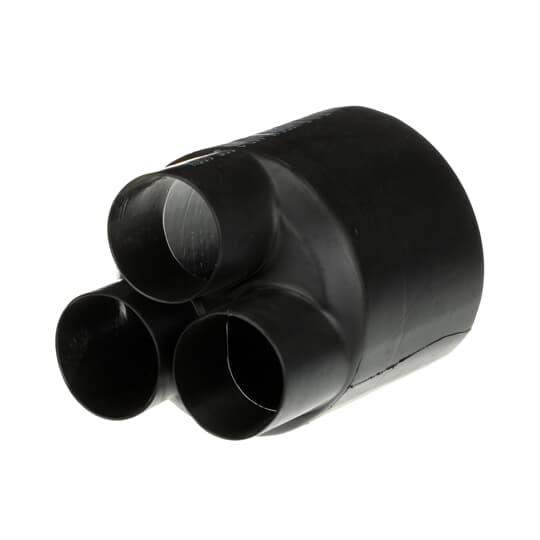

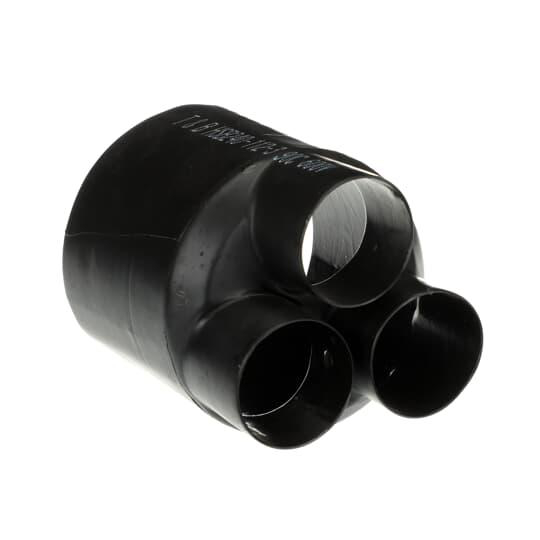

Heat-shrink boot breakout 3leg 300-1000kcmil

Manufacturer: ABB | Thomas & Betts | Catalog # HSB240-112-3 | Electrozad South Part # 211210
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
SHRINK-KON™ heat-shrinkable breakout boot with thermoplastic adhesive liner provides complete environmental protection and insulation. Strain relief and mechanical protection. Shrink temperature of 135 ..C.

Technical Information

Applications
For 3-Core Cables
Conductor Size
300-1000 kcmil
Shrink Ratio
3:1
Temperature Rating
-55 to 100 degrees C
Type
Breakout
Wall Thickness
0.16 in

Manufacturer Information

Brand
ABB
Sub Brand
Shrink-Kon®

General Product Info

12-Digit UPC
786210878744
Color
Black
GTIN
05415022228175

Dimensions

Length
7.01 in ; 178.05 mm
Overall Length
7.01 in
Thickness
0.16 in
