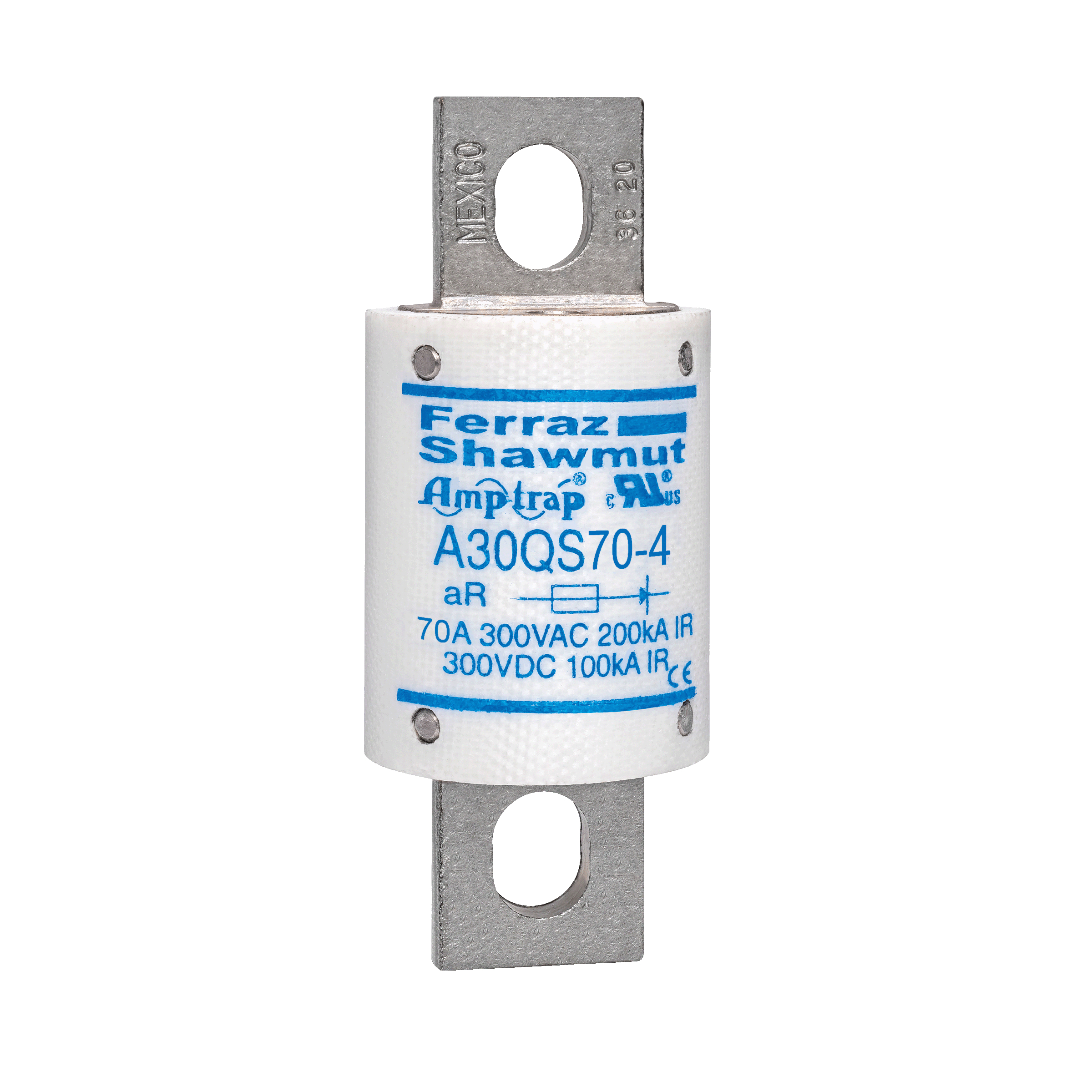

High Speed Fuse Amp-Trap® A30QS 300VAC 300VDC 70A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A30QS70-4 | Electrozad South Part # 210916
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A30QS Amp-Trap® high speed fuses are intended for the protection of Power Semiconductors such as diodes, phase control SCRs and other power semiconductor devices. The A30QS is recommended for new applications providing solutions for your critical protection needs at 300V and less semiconductors.

Technical Information

Amperage
70 A
Applications
Protection of AC/DC Drives, UPS and other Equipment of 300 V or Less
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
300 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
North American Round Style
Voltage
300 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001280710
GTIN
30782001280711
Weight
0.3 lb

Dimensions

Diameter
1.22 in
Length
3.13 in

Certifications & Compliance

Country of Origin
Mexico
