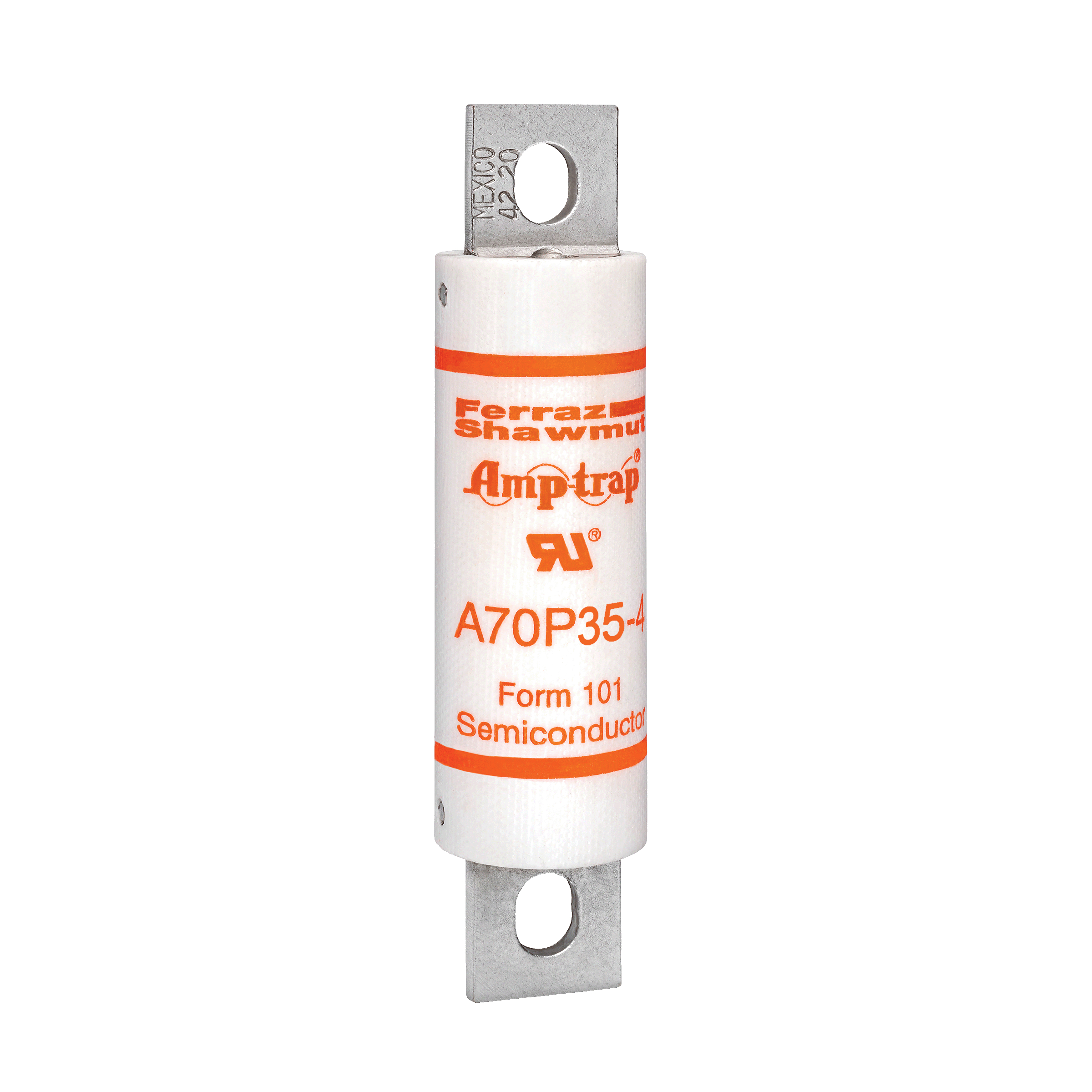

High Speed Fuse Amp-Trap® A70P 700VAC 650VDC 35A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70P35-4 | Electrozad South Part # 20776
*Call For Price*
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Technical Information

Amperage
35 A
Applications
For Protection of 700 V or Less, DC Drives, UPS, Inverters, Reduced Voltage Starters, etc
Connection Type
Blade
Contact Material
Tin Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
700 V
Rated Voltage DC
650 V
TC Connection
Bolted
Terminal Material
Tin-Plated Brass
Terminal Type
Bolted
Type
High Speed, Fast Acting, Current Limiting, Form 101
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001947132
Construction
CMG
GTIN
30782001947133
Weight
0.27 lb

Dimensions

Diameter
1 in
Length
4.38 in

Certifications & Compliance

Country of Origin
Mexico
