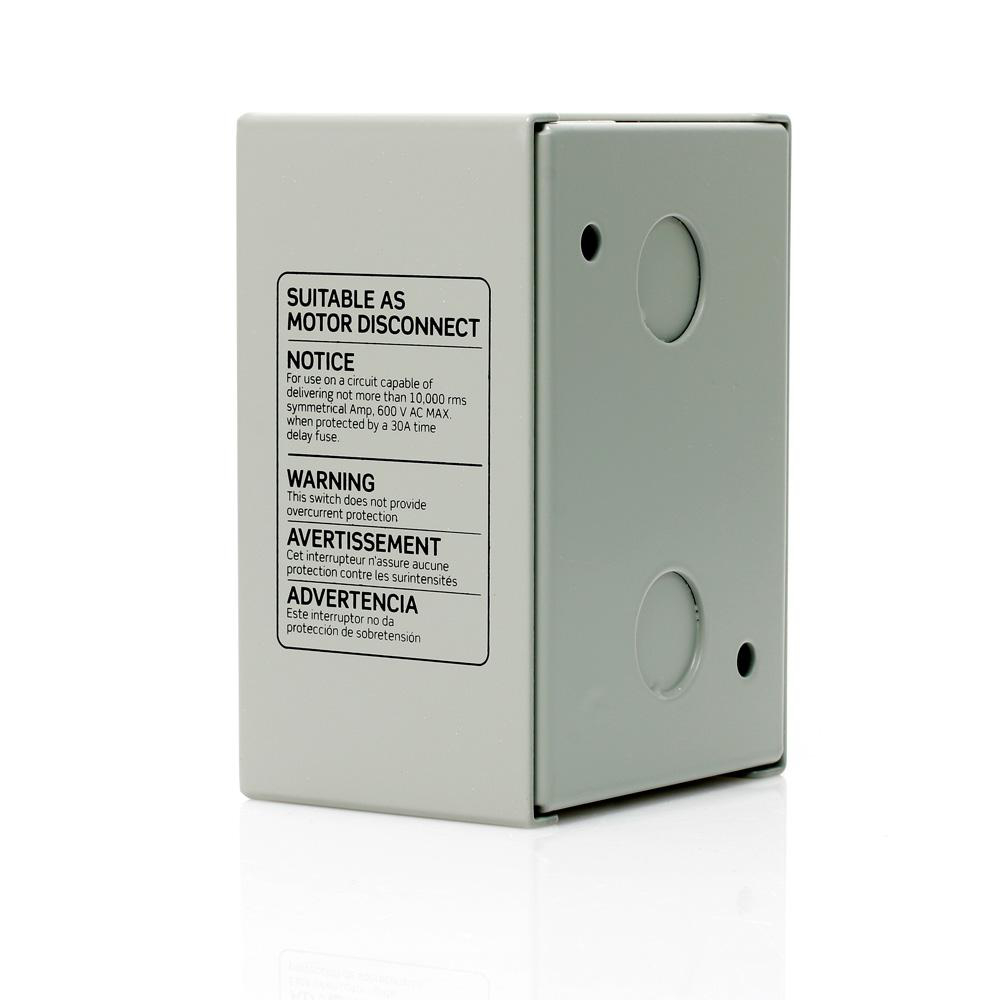

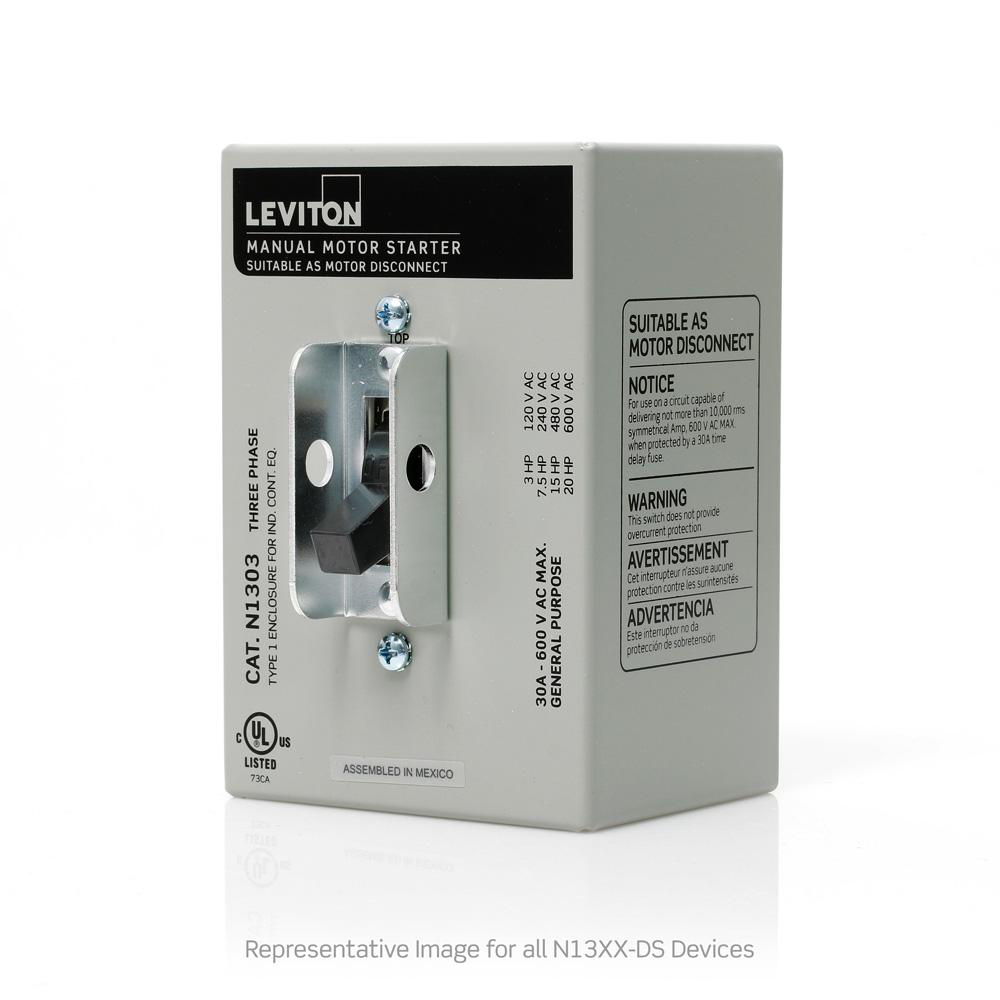

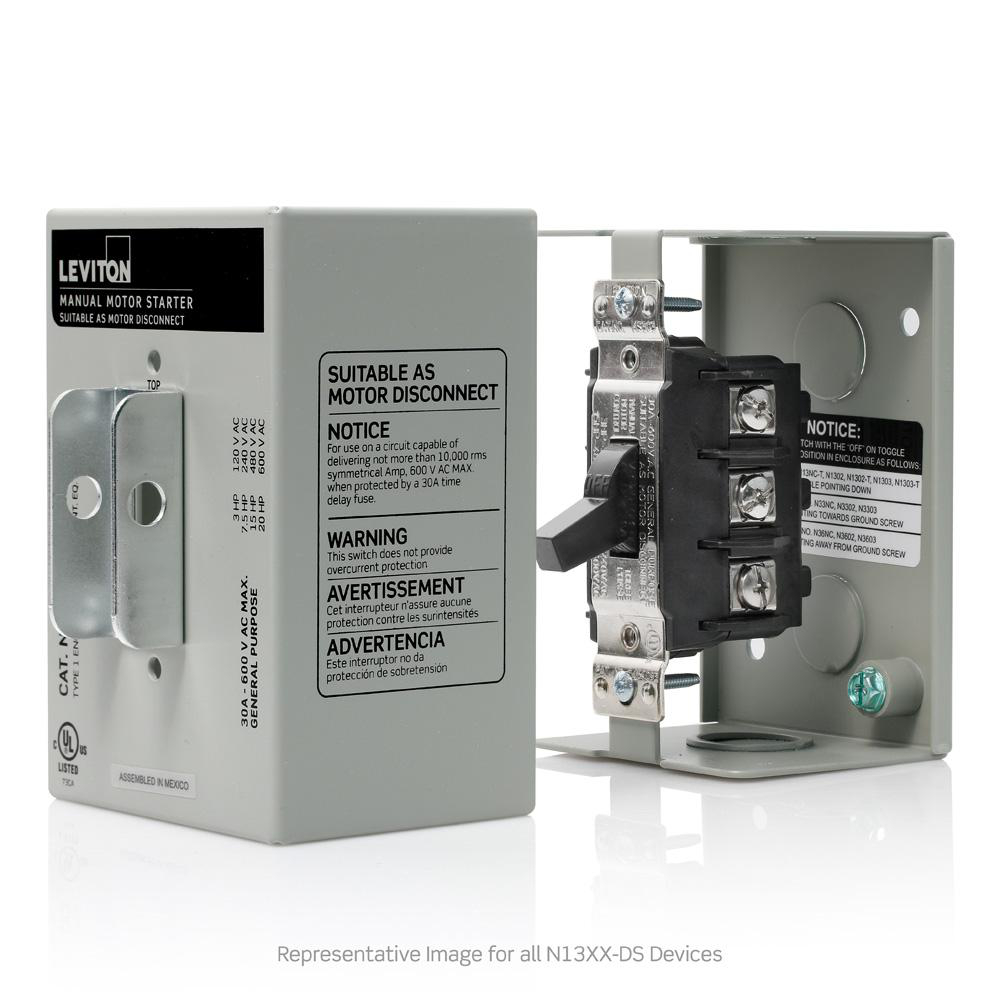

Enclosure 2-pole switch NEMA-1 3.25x3.16x4.75"

Manufacturer: Leviton Manufacturing | Catalog # N1302-DS | Electrozad South Part # 207489
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet
NEMA Type-1 metal enclosure with 30 A, 600 VAC, 2-pole, 1-phase, standard toggle switch.

Technical Information

Action
DPST
Actuator
Toggle
Amperage
30 A
Applications
Commercial
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Configuration
DPST
Contact Material
Silver-Cadmium
Control Voltage
600 VAC
Device Type
Enclosed Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Thermoplastic Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounded To Enclosure
NEMA
WD-1
Number of Poles
2
Operating Temperature
-40 degrees C
Size
4.75 H x 3.25 W x 3.16 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
25 lb-in
Type
Enclosure With Double-Pole AC Motor Starter Switch
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Powerswitch®

General Product Info

12-Digit UPC
078477374214
Color
Gray
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
00078477374214

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
