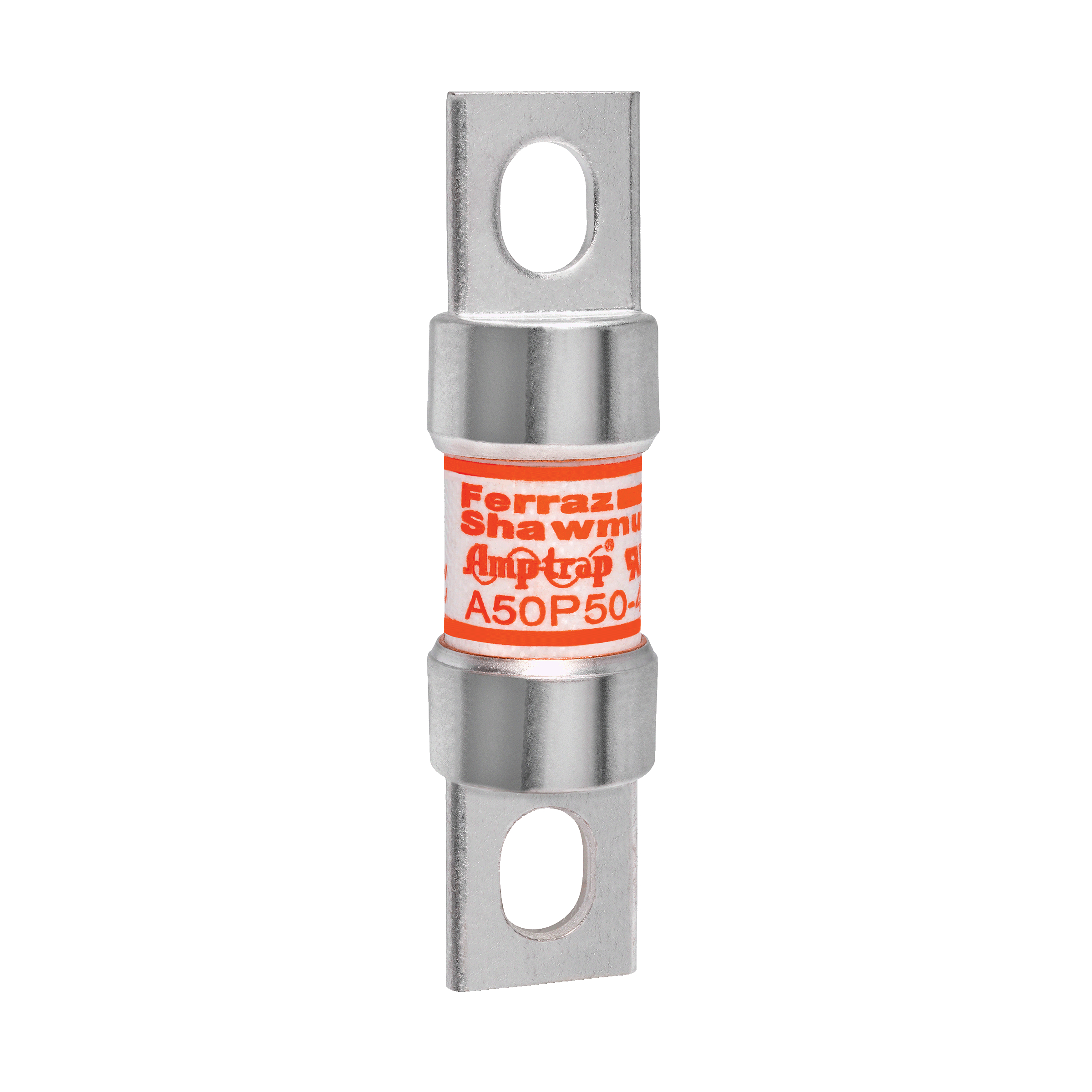

High Speed Fuse Amp-Trap® A50P 500VAC 450VDC 50A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50P50-4 | Electrozad South Part # 2069
*Call For Price*
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Technical Information

Amperage
50 A
Applications
For DC Drives, Uninterruptable Power Supplies and Similar Applications Requiring Better Protection and Superior Reliability
Connection Type
Blade
Contact Material
Tin Plated Copper, Tin Plated Brass, Silver Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA at AC, 79 kA at DC
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
500 V
Rated Voltage DC
450 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Form 101, High Speed, Fast Acting, Current Limiting
Voltage
500 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001945992
Construction
GMG
GTIN
30782001945993
Weight
0.2 lb

Dimensions

Diameter
0.81 in
Length
3.19 in

Certifications & Compliance

Country of Origin
Mexico
