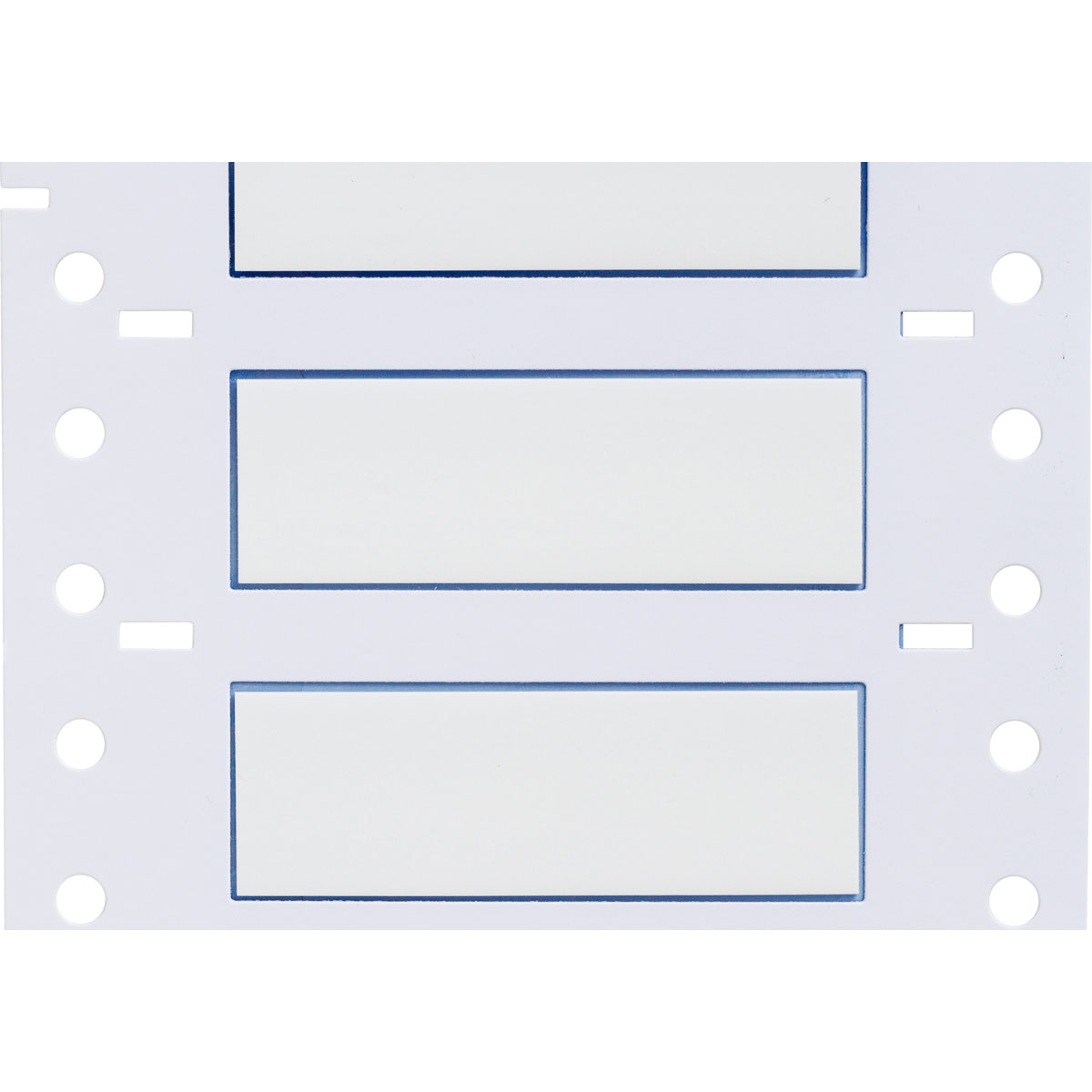

Sleeve PERMASLEEVE wire marking polyolefin white 2x0.645"

Manufacturer: Brady | Catalog # PS-375-2-WT | Electrozad South Part # 205407

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
PermaSleeve® Single-sided printable wire marking sleeve made of heat-shrink polyolefin. This sleeve is fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215 and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve Datab® printers as well as thermal transfer printers.

Technical Information

Applications
Cable & Wire Marking
Material
Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Type
Heat Shrink Tubing
Wire Size
0.125-0.32 in

Manufacturer Information

Brand
Brady®
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820326045
Color
White
Finish
Matte
GTIN
00662820326045

Dimensions

Diameter
0.375 in
Height
0.645 in
Roll Width
2 in
Width
50.80 mm
