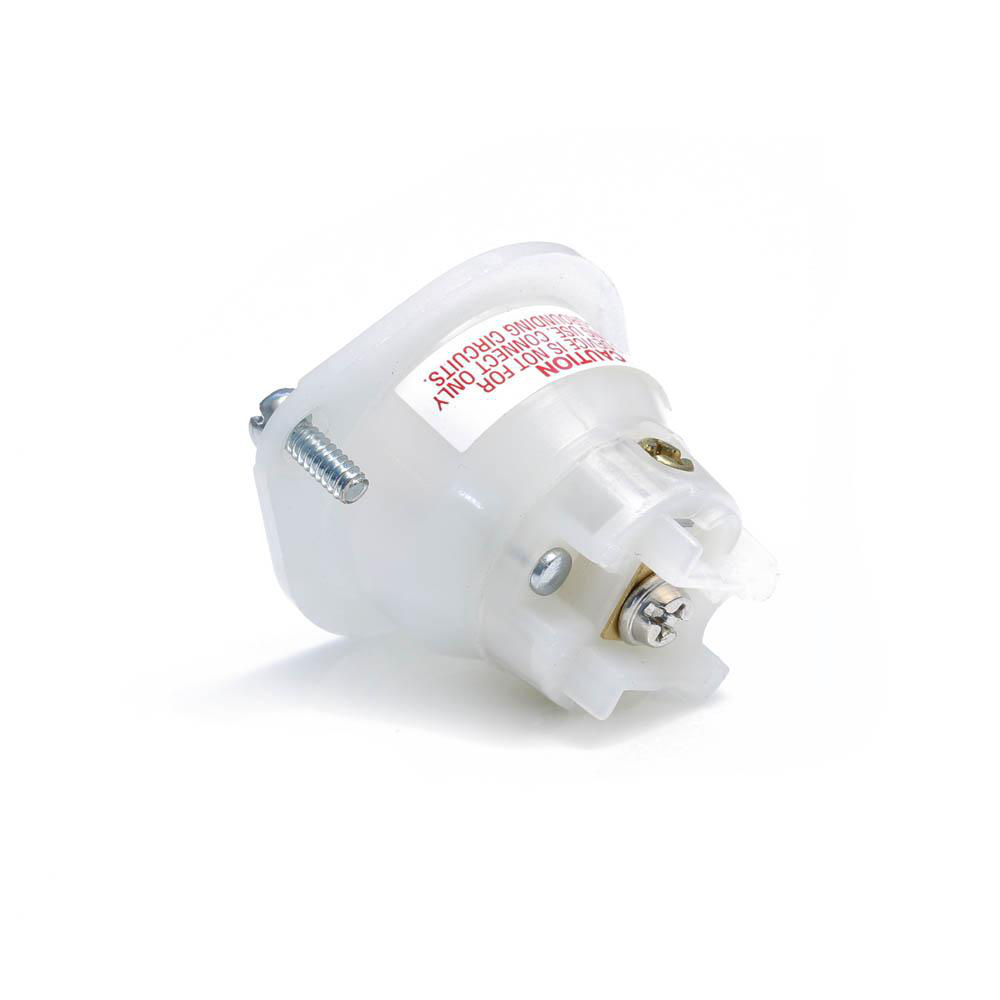

Receptacle locking flanged inlet 3P 3W 125V 15AMP white

Manufacturer: Leviton Manufacturing | Catalog # ML3-PB | Electrozad South Part # 205339
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing
Flanged receptacle are built to endure hard use with rugged nylon flanges that assure a smooth, flush fit and outstanding resistance to cracking and breaking. Offers a smaller form factor for limited-space applications.

Technical Information

Amperage
15 A
Applications
For Industrial Use
Body Material
Impact Modified Nylon
Conductor Size
18-14 AWG
Contact Material
Solid Brass
Cord Size
0.218 - 0.43 in
Device Type
Locking Flanged Inlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated HB Or Better UL94
Grounding
No
Material
Nylon Body, Thermoplastic Nylon Strap
Mounting Type
Flange
NEMA
WD-1, WD-6
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
1.63 W IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-14 AWG
Termination Type
Back Wire
Type
Flanged
Voltage
125/250 V
Wire Count
3
Wire Size
18 - 14 AWG 0.218 - 0.43 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477987247
Color
White
Environment
Dry
Environmental Conditions
-40 to 60 °C
GTIN
00078477987247

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
