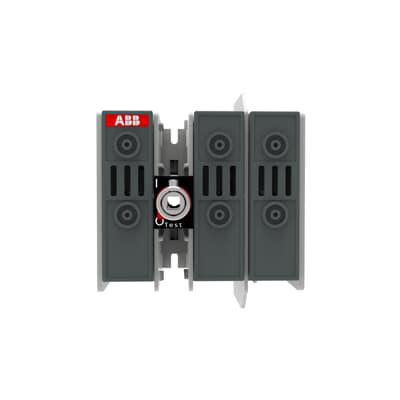

3P 30A J FUSIBLE SW

Manufacturer: ABB Inc | Catalog # OS30FAJ12 | Electrozad South Part # 204650
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
3 pole, 30 amps rated at 600 VAC, UL 98, open fusible disconnect switch for use with J fuse type

Technical Information

Amperage
30 A
Applications
For Use with J Fuse Type
Connection Type
Screw Terminal
Fuse Type
Class J
Load Rating
7.5 hp at 240 V, 15 hp at 480 V, 20 hp at 600 V, 7.5 kW at 220 - 240 V, 15 kW at 400/415 V, 18.5 kW at 500 V, 22 kW at 690 V
Mounting Type
Base
Number of Poles
3
Size
143x100x119mm
Standard
UL98IEC 60947-3
Terminal Type
Screw Terminals
Type
Front Operated, Fusible, Open
Wire Size
2.5 - 25 mm²

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325415842
GTIN
00804325415842
