DISC SW, 3P 30A 600V, NEMA1, 2 MTQK RCPT

Manufacturer: Hubbell Wiring Devices | Catalog # HBL1389MQR2 | Electrozad South Part # 202982
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty

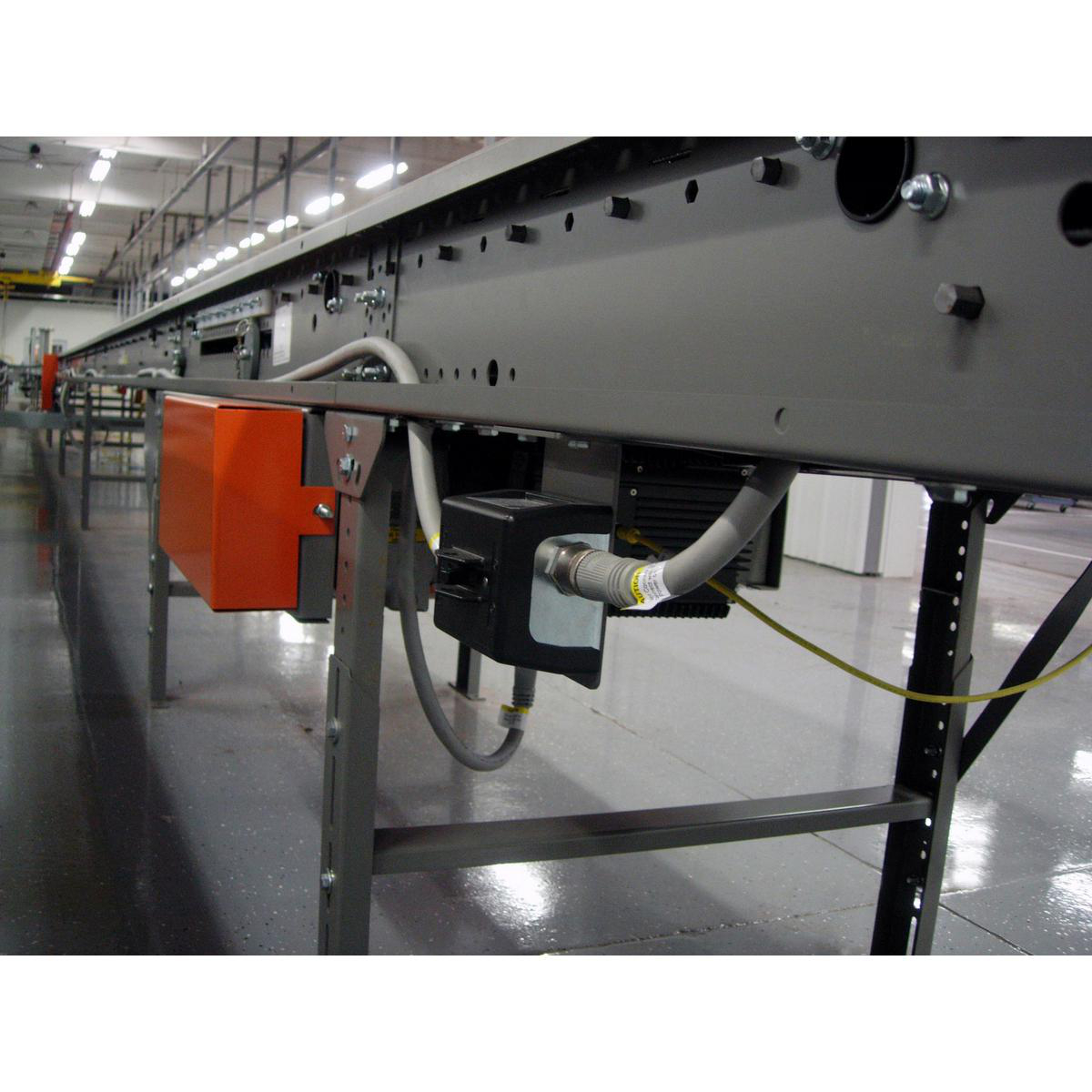

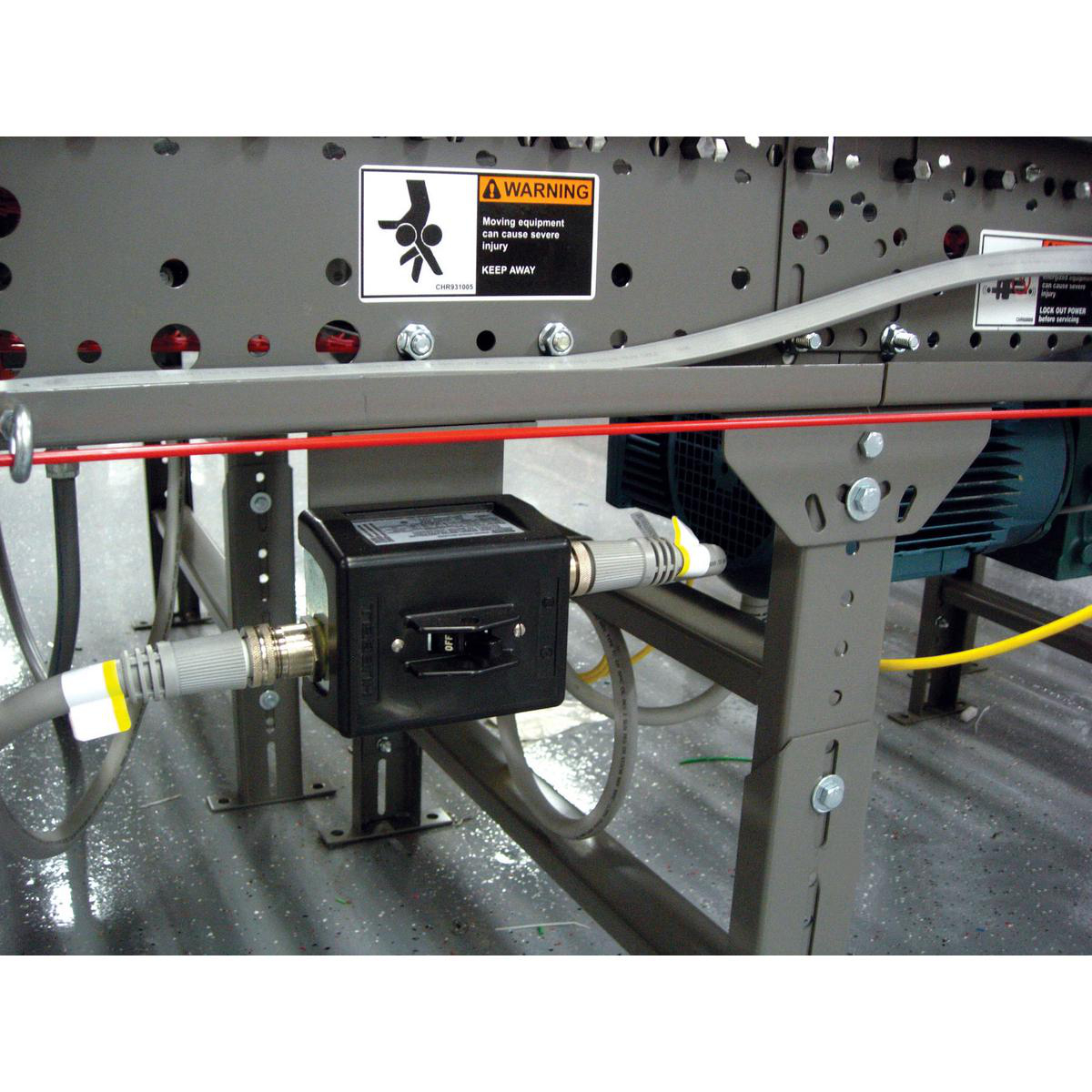

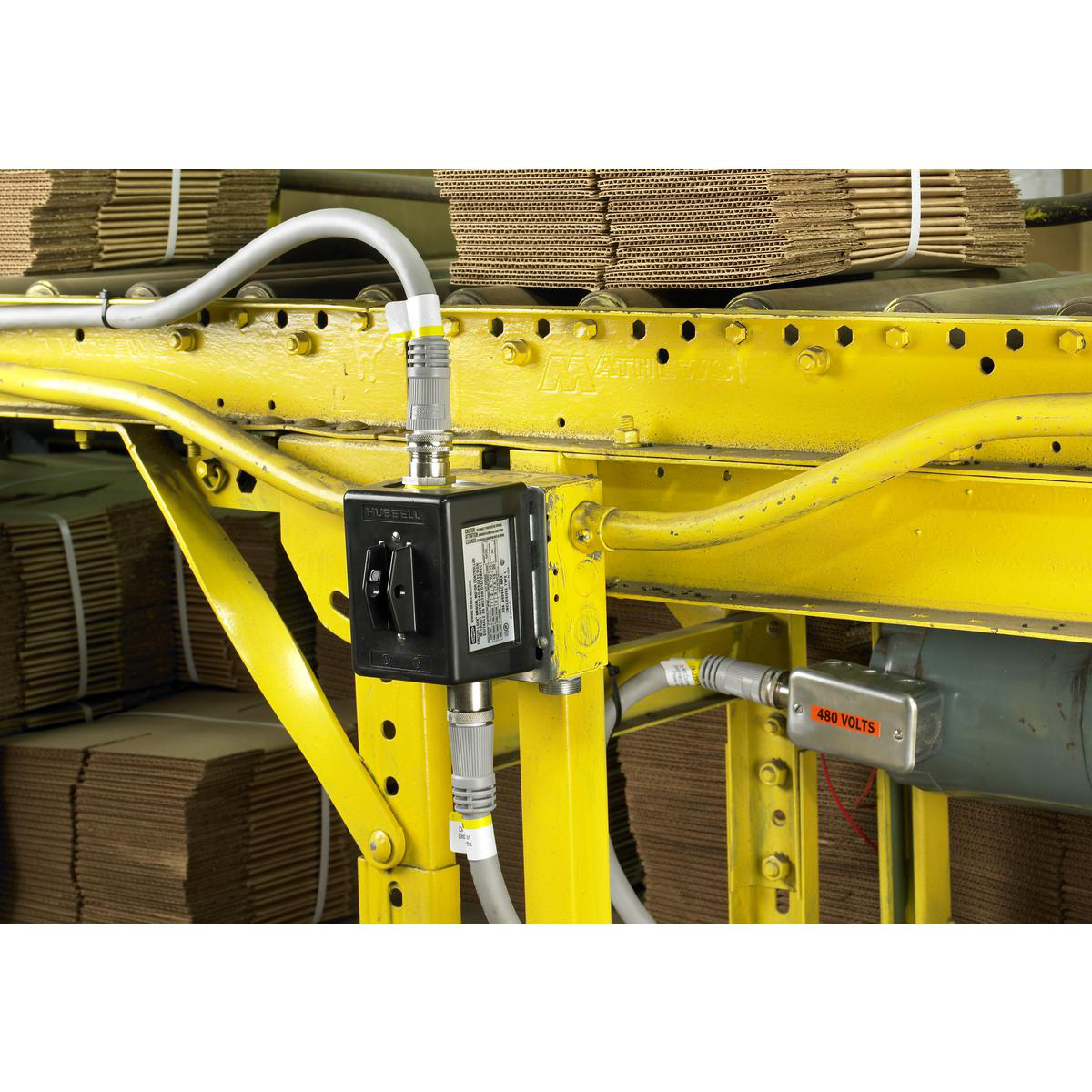

Disconnect Switch, Motor Quick, 3 Pole, 30A 600V AC, NEMA 1 Enclosure, With 2) Pre-Wired LINKOSITY Receptacles

Technical Information

Amperage
30 A
Applications
Complete Unit with 1) Male LINKOSITY Receptacle (line side) and 1) Female LINKOSITY Receptacle (load side).
Current
30 A
Enclosure Type
Type 1
Horsepower
20 hp
Number of Phases
3
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
Industrial Control Equipment File #E36355,UL 2238,UL 508,UL 50E
TC Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Enclosed Quick Disconnect Switch
Wattage
18000 W
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
MotorQuick Products

General Product Info

12-Digit UPC
783585310916
GTIN
00783585310916
Product Series
MotorQuick/LINKOSITY
Product UPC
78358531091
Weight
2.2 lb

Dimensions

Height
3.4 in
Length
4.52 in
Width
3.97 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Pre-wired with LINKOSITY® components
  • Crush and Impact Resistance of MC Cable
  • Thermoplastic Cover on Plated Steel Base
