Sleeve wire marker 1x0.439" 5000pk

Manufacturer: Brady | Catalog # PS-250-2-WT-2 | Electrozad South Part # 202114
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
16-8 AWG
Material
B-342 Heat Shrink Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Mounting Type
Plug-in
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Heat Shrink Tubing
Wire Size
0.094-0.215 in

Manufacturer Information

Brand
Brady
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820112174
Color
White
Finish
Matte
GTIN
00662820112174
Used With
Brady IP Series and Bradyprinter PR Plus Series Thermal Transfer Label Printer

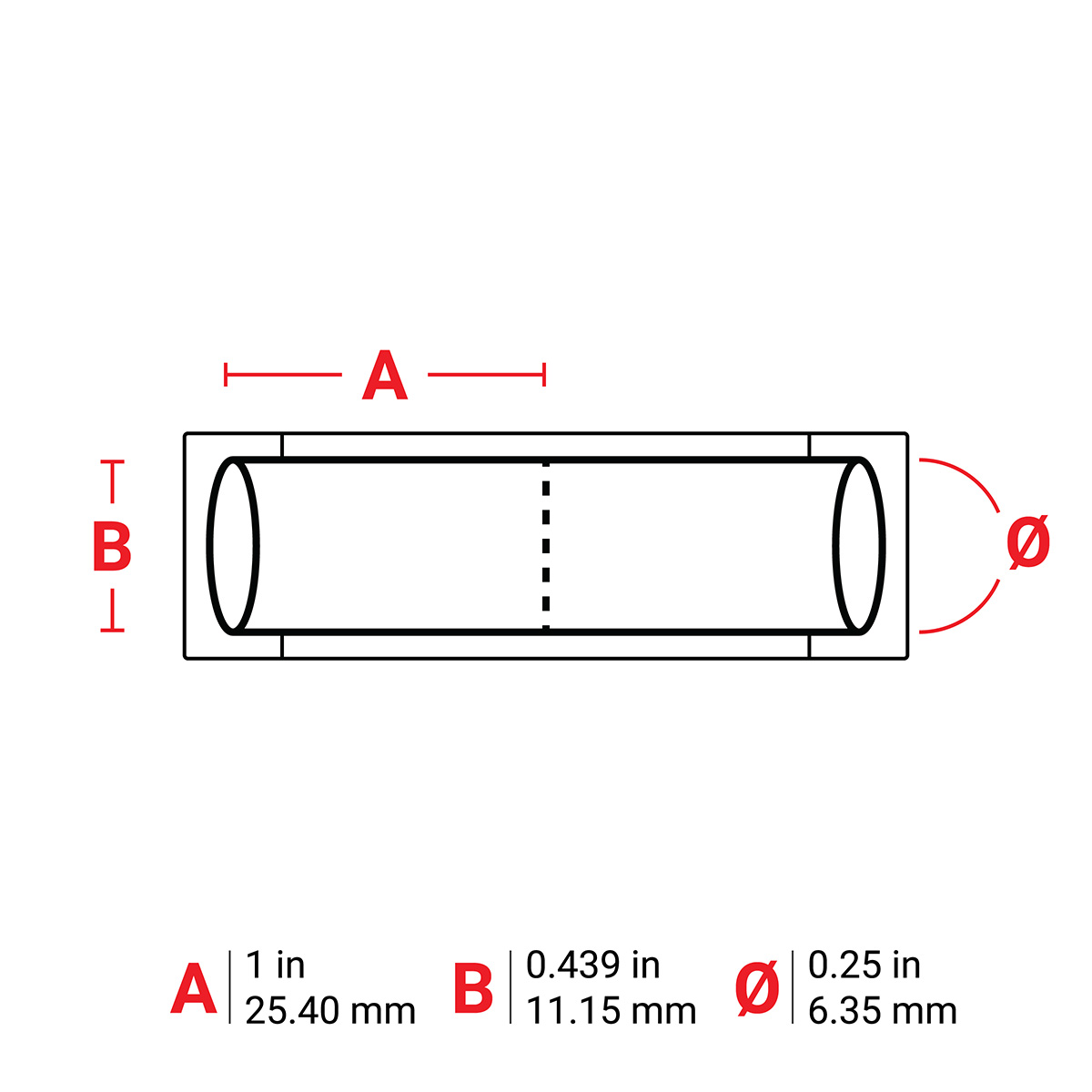

Dimensions

Diameter
0.25 in
Height
0.439 in
Length
0.439 in
Roll Width
2 in
Width
1 in
